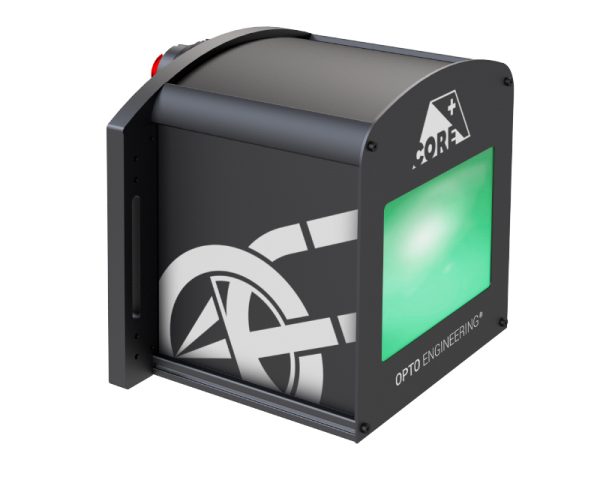

LTCLCP144-G

Specification	Value
Minimum beam shape dimension	165 x 120 (mm)
Working distance range	170 – 350 (mm)
Light color, peak wavelength	green, 525 nm
Spectral FWHM	40 (nm)
Power ratings voltage	12-24 (V)
Max power consumption	2.5 (W)
Supply voltage	3.3 (4.0) (V)
Max LED forward current	350 (mA)
Max pulse current	2000 (mA)
Connector	M8
Cables	CB244P1500 included
Dimension A	332.0 (mm)
Dimension B	303.0 (mm)
Dimension C	314.0 (mm)
Mass	7047 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only
Risk group according to CEI EN 62471:2010	Risk group 1

Description

Beam shape is not circular. See Tech Info for minimun beam dimensions.
Opto Engineering® recommends green light for high precision measurement applications.
Tolerance ± 10%.
At max forward current. Tolerance is ± 0.06V on forward voltage measurements.
In continuous mode (non-pulsed).
At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info).
Maximum dimension of the clamping flange.
Nominal value, with no spacers in place.

Dimension A	332.0 (mm)
Installation	Indoor use only
Light color, peak wavelength	green, 525 nm
Accessory developer	Opto
Power ratings voltage	12-24 (V)
Dimension C	314.0 (mm)
Mass	7047 (g)
Connector	M8
Supply voltage	3.3 (4.0) (V)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Dimension B	303.0 (mm)
Color	green, 525 nm
Working distance range	170 – 350 (mm)
Max power consumption	2.5 (W)
Operating relative humidity	20-85, non condensing (%)
Risk group (cei 62471)	Risk group 1
Spectral fwhm	40 (nm)
Cables	CB244P1500 included
Max led forward current	350 (mA)
Minimum beam shape dimension	165 x 120 (mm)
Max pulse current	2000 (mA)
