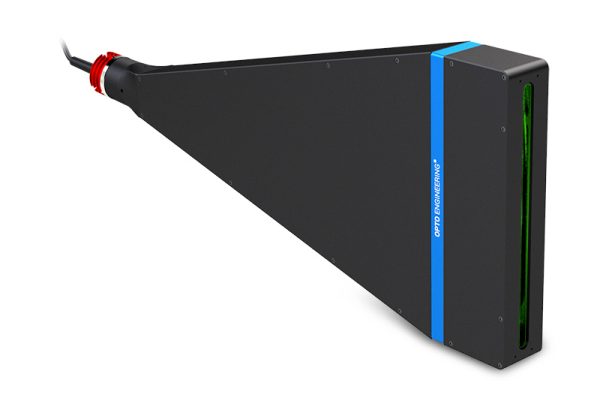

LTCL4K180-G

LTCL4K180-G

Specification Value
Minimum beam shape dimension 187 x 10 (mm)
Working distance range 120 – 450 (mm)
Light color, peak wavelength green, 525 nm
Spectral FWHM 40 (nm)
Supply voltage 12-24 (V)
Max power consumption 2.5 (W)
LED forward voltage typical (max) 3.3 (4.0) (V)
Max LED forward current 350 (mA)
Max pulse current 2000 (mA)
Connector M8
Cables CB244P1500 included
Length 482.6 (mm)
Width 206.0 (mm)
Height 38.5 (mm)
Mass 3008 (g)
Operating temperature 0-40 (°C)
Storage temperature 0-50 (°C)
Operating relative humidity 20-85, non condensing (%)
Installation Indoor use only
Risk group according to CEI EN 62471:2010 Risk group 1
Add to Quote
Category: Tag: Brand:

Description

  1. Beam shape is not circular. See Tech Info for minimun beam dimensions.
  2. Opto Engineering® recommends green light for high precision measurement applications.
  3. Tolerance ± 10%.
  4. At max forward current. Tolerance is ± 0.06V on forward voltage measurements.
  5. In continuous mode (non-pulsed).
  6. At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info).
  7. Nominal value, with no spacers in place.

Additional information

Mass

3008 (g)
Installation

Indoor use only
Light color, peak wavelength

green, 525 nm
Accessory developer

Opto
Minimum beam shape dimension

187 x 10 (mm)
Connector

M8
Supply voltage

12-24 (V)
Height

38.5 (mm)
Width

206.0 (mm)
Operating temperature

0-40 (°C)
Storage temperature

0-50 (°C)
Length

482.6 (mm)
Color

green, 525 nm
Working distance range

120 – 450 (mm)
Max power consumption

2.5 (W)
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Risk group 1
Spectral fwhm

40 (nm)
Cables

CB244P1500 included
Led fwd volt (typ/max)

3.3 (4.0) (V)
Max led forward current

350 (mA)
Max pulse current

2000 (mA)
