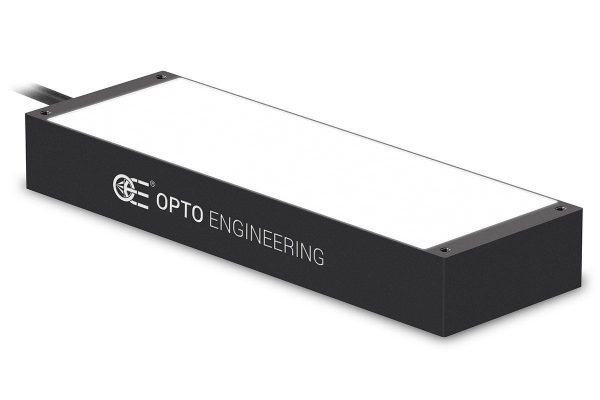

LT3BC050150-W

Specification Value
Illumination area height 50.0 (mm)
Illumination area width 150.0 (mm)
Number of LEDs 108
Light color, peak wavelength white, 5700 K
Spectral FWHM – (nm)
Illuminance (continuous) 143 (klux)
Irradiance (continuous) 401 (W/m2)
Illuminance (boosted) 285 (klux)
Irradiance (boosted) 807 (W/m2)
Illuminance (strobe) 787 (klux)
Irradiance (strobe) 2202 (W/m2)
Diffuser yes
Collimation film optional
Operating mode Continuous and strobe
Supply voltage 24 (V)
Current (continuous) 420 (mA)
Power consumption (continuous) 10.1 (W)
Current (boosted) 840 (mA)
Power consumption (boosted) 20.2 (W)
Peak current (strobe) 2400 (mA)
Peak power consumption (strobe) 57.6 (W)
Min pulse duration 3 (µs)
Max pulse duration 10 (ms)
Max duty-cycle 10 (%)
typical_pulse delay 300 (ns)
Typical jitter 10 (ns)
I/O interface PNP logic input, NPN logic input, analog dimming input
Connector 1x M12 straight plug male connector
Cables not included
Height 58.0 (mm)
Width 176.0 (mm)
Thickness 24.0 (mm)
Mass 287 (g)
Clamping system 4x M4 threaded holes
Operating temperature 0-40 (°C)
Storage temperature 0-50 (°C)
Operating relative humidity 20-85, non condensing (%)
Installation Indoor use only
IP rating IP54
Risk group according to CEI EN 62471:2010 Exempt
Category: Tag: Brand:

Description

  1. At emitting surface.
