Description
- At emitting surface.

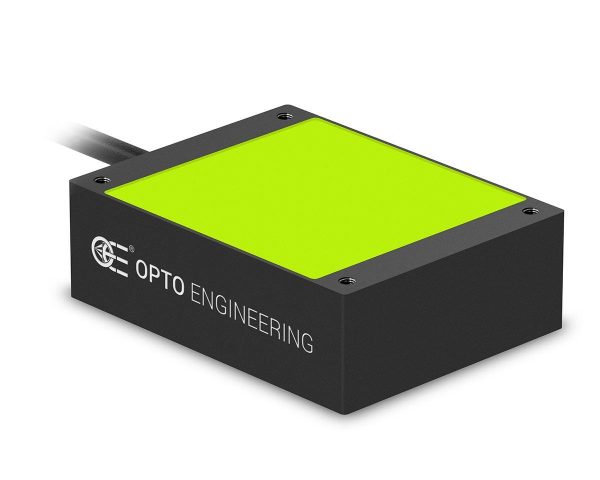

LT3BC050050-G
| Specification | Value |
|---|---|
| Illumination area height | 50.0 (mm) |
| Illumination area width | 50.0 (mm) |
| Number of LEDs | 36 |
| Light color, peak wavelength | green, 525 nm |
| Spectral FWHM | 35 (nm) |
| Illuminance (continuous) | 145 (klux) |
| Irradiance (continuous) | 265 (W/m2) |
| Illuminance (boosted) | 249 (klux) |
| Irradiance (boosted) | 467 (W/m2) |
| Illuminance (strobe) | 533 (klux) |
| Irradiance (strobe) | 1079 (W/m2) |
| Diffuser | yes |
| Collimation film | optional |
| Operating mode | Continuous and strobe |
| Supply voltage | 24 (V) |
| Current (continuous) | 140 (mA) |
| Power consumption (continuous) | 3.4 (W) |
| Current (boosted) | 280 (mA) |
| Power consumption (boosted) | 6.7 (W) |
| Peak current (strobe) | 800 (mA) |
| Peak power consumption (strobe) | 19.2 (W) |
| Min pulse duration | 3 (µs) |
| Max pulse duration | 10 (ms) |
| Max duty-cycle | 10 (%) |
| typical_pulse delay | 300 (ns) |
| Typical jitter | 10 (ns) |
| I/O interface | PNP logic input, NPN logic input, analog dimming input |
| Connector | 1x M12 straight plug male connector |
| Cables | not included |
| Height | 58.0 (mm) |
| Width | 76.0 (mm) |
| Thickness | 24.0 (mm) |
| Mass | 184 (g) |
| Clamping system | 4x M4 threaded holes |
| Operating temperature | 0-40 (°C) |
| Storage temperature | 0-50 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Installation | Indoor use only |
| IP rating | IP54 |
| Risk group according to CEI EN 62471:2010 | Exempt |
Additional information
| Mass | 184 (g) |
|---|---|
| Width | 76.0 (mm) |
| Storage temperature | 0-50 (°C) |
| Ip rating | IP54 |
| Installation | Indoor use only |
| Operating relative humidity | 20-85, non condensing (%) |
| Color | green, 525 nm |
| Connector | 1x M12 straight plug male connector |
| Lighting area (mm) | 50.0 (mm) x 50.0 (mm) |
| Illumination area height | 50.0 (mm) |
| Operating temperature | 0-40 (°C) |
| Number of leds | 36 |
| Diffuser | yes |
| Collimation film | optional |
| Max duty cycle | 10 (%) |
| Supply voltage | 24 (V) |
| Thickness | 24.0 (mm) |
| Accessory developer | Opto |
| Light color, peak wavelength | green, 525 nm |
| Optmag | |
| Illumination area width | 50.0 (mm) |
| Spectral fwhm | 35 (nm) |
| Height | 58.0 (mm) |
| Power consumption (boosted) | 6.7 (W) |
| Risk group (cei 62471) | Exempt |
| Irradiance (continuous) | 265 (W/m2) |
| Illuminance (boosted) | 249 (klux) |
| Irradiance (boosted) | 467 (W/m2) |
| Illuminance (strobe) | 533 (klux) |
| Irradiance (strobe) | 1079 (W/m2) |
| Operating mode | Continuous and strobe |
| Clamping system | 4x M4 threaded holes |
| Current (boosted) | 280 (mA) |
| Cables | not included |
| Power use (cont.) | 3.4 (W) |
| Peak current (strobe) | 800 (mA) |
| Peak power (strobe) | 19.2 (W) |
| Min pulse duration | 3 (µs) |
| Typical_pulse delay | 300 (ns) |
| Typical jitter | 10 (ns) |
| I/o interface | PNP logic input, NPN logic input, analog dimming input |
| Illuminance (continuous) | 145 (klux) |
| Current (continuous) | 140 (mA) |
| Max pulse duration | 10 (ms) |
