Description

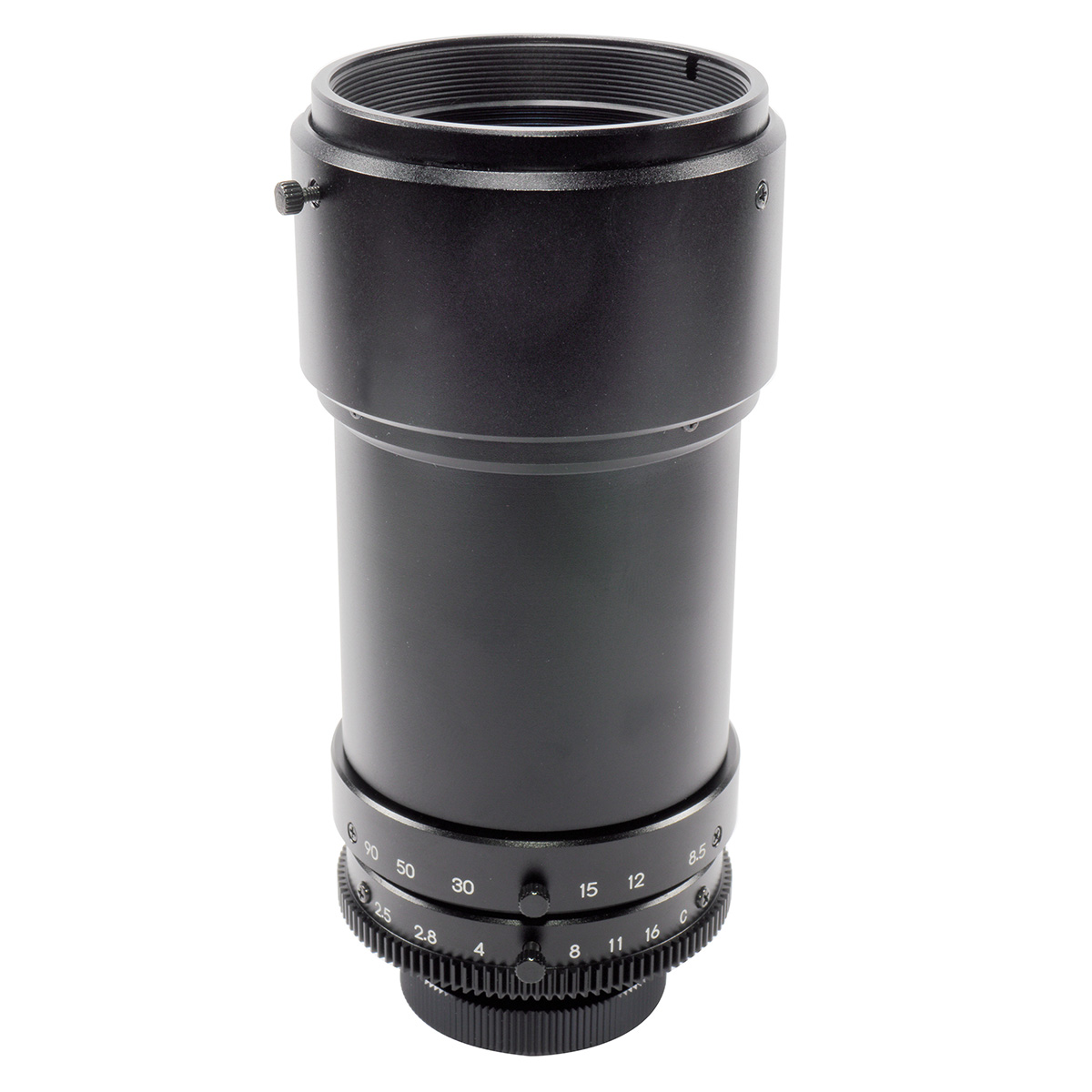

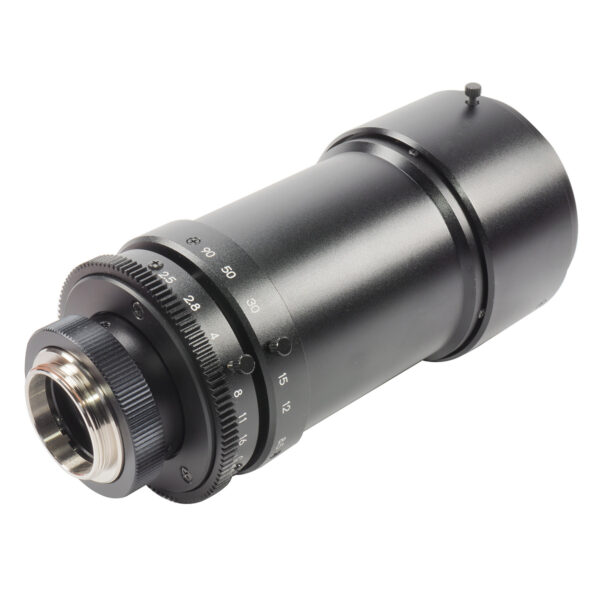

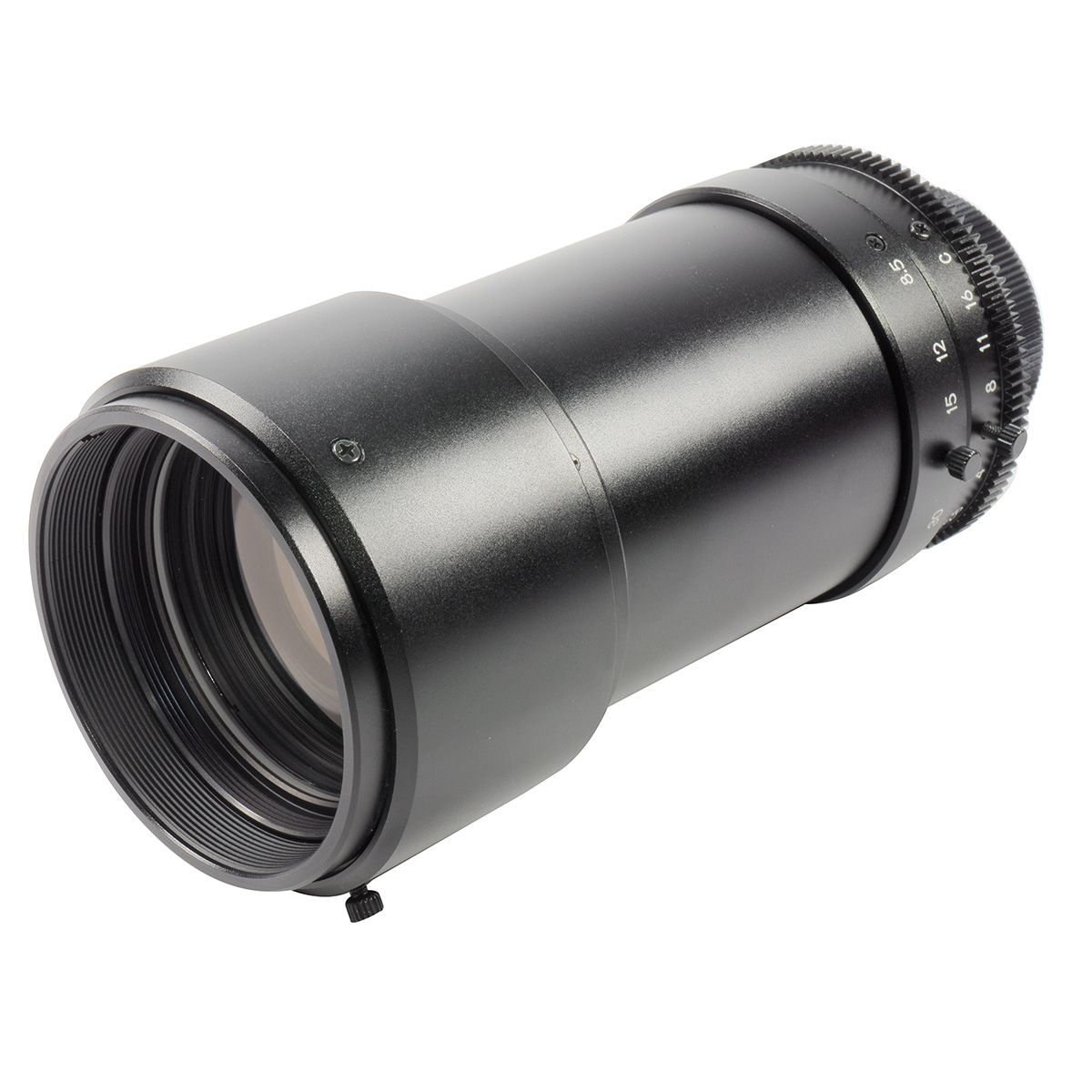

Product Information LMZ50M | 1/3″ inf~0.7x Macro Zoom Lens1/3″ C-mount industrial lens
Focal length 8.5-90mm
Up to 10x magnification
Designed for: 1/3
| Pixel size (µm) | 5 |
| Iris control | Manual |
| Iris range (f stop) | 2,5 |
| Lens type | Manueller Zoom, Vario Lens |
| Wavelength range | VIS (380nm – 780nm) |
| Focusing range (m) | 0,15 – ∞ |
| Focus control | Manual |
| Zoom control | Manual |
| Resolution center | 100 |
| Resolution corner | 60 |
| Distortion (tv) (%) | W |
| Back focus in air (mm) | 25,49 |
| Filter size (mm) | M48 x P0,75 |
| Size (mm) | Ø60 X 130 |
| Weight (g) | 437 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Machine Vision |
For more information about the features, visit the Kowa Product Documentation.
