Description

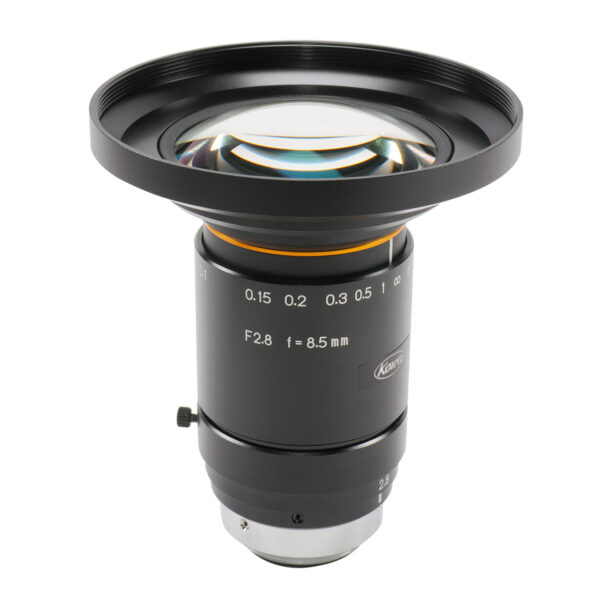

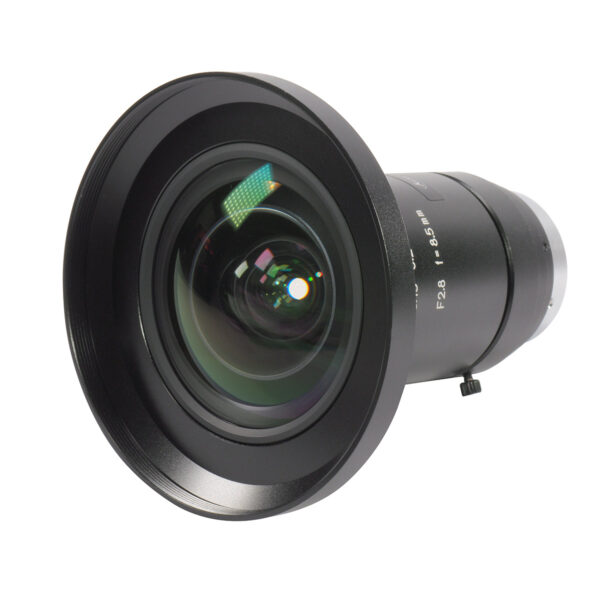

Product Information LM8XC | 4/3″ 8.5mm 20MP C-Mount Lens4/3″ 20 Megapixel C-mount industrial lens
Focal length 8.5mm
For sensors with a pixel size from 3.0μm
Suitable for Sony IMX387 and Sony IMX540 sensors and many more
Low distortion
For high-end inspections
Broadband Coating: Transmission from VIS to NIR
Designed for: 4/3
Compatible: 1.1,1,2/3,1/1.8,1/2,1/3
| Pixel size (µm) | 3 |
| Iris control | Manual |
| Iris range (f stop) | 2,8 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm), Broad Band Coating (380nm – 1000nm) |
| Focusing range (m) | 0,1 – ∞ |
| Focus control | Manual |
| Shooting range at mod horizontal (mm) | 239 |
| Shooting range at mod vertical (mm) | 179 |
| Resolution center | 160 |
| Resolution corner | 80 |
| Megapixel | 20 |
| Distortion (tv) (%) | -0,12 |
| Back focus in air (mm) | 12,9 |
| Filter size (mm) | M72X0,75 |
| Size (mm) | 74,0 x 82,5 |
| Weight (g) | 245 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Machine Vision, Broadcast |
For more information about the features, visit the Kowa Product Documentation.
