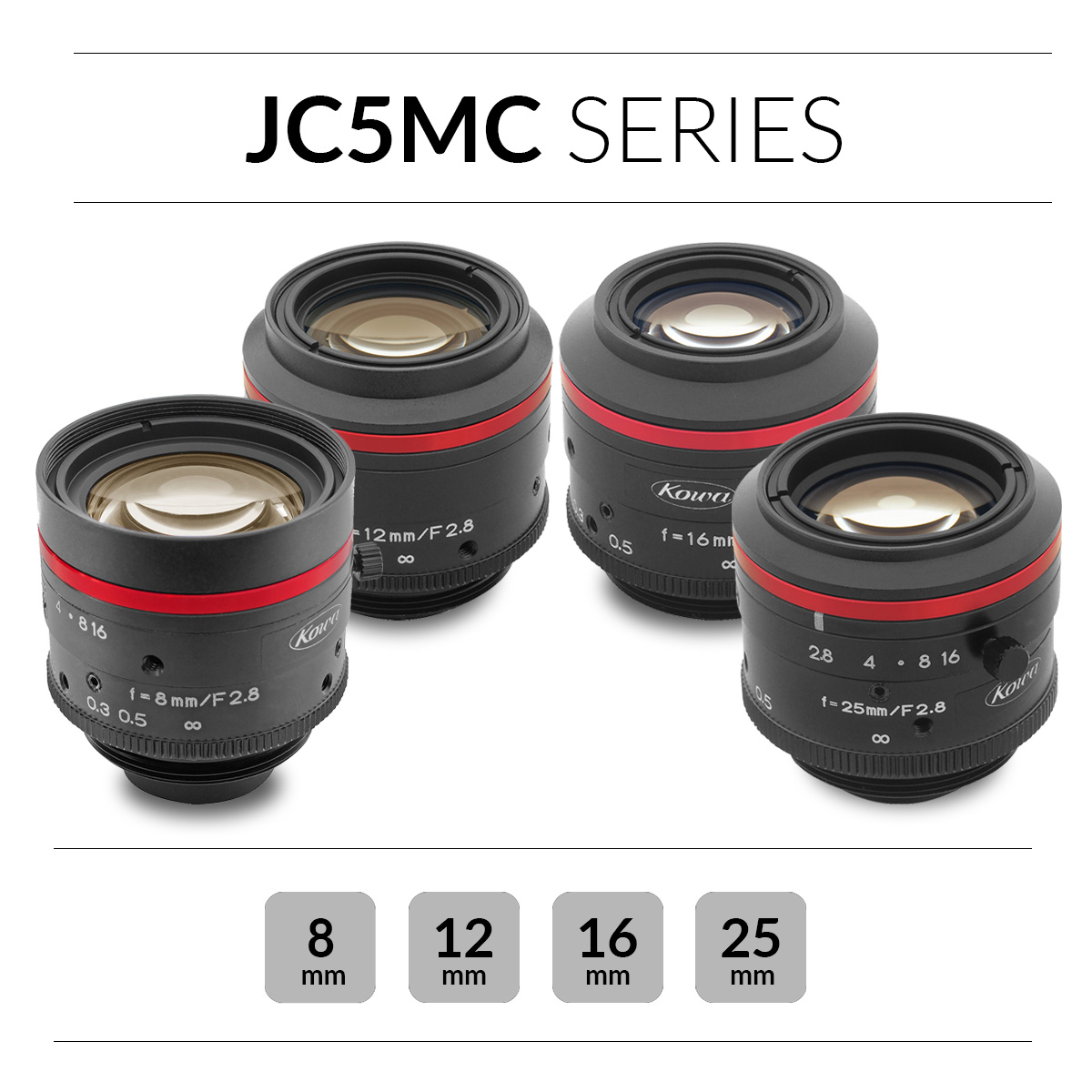

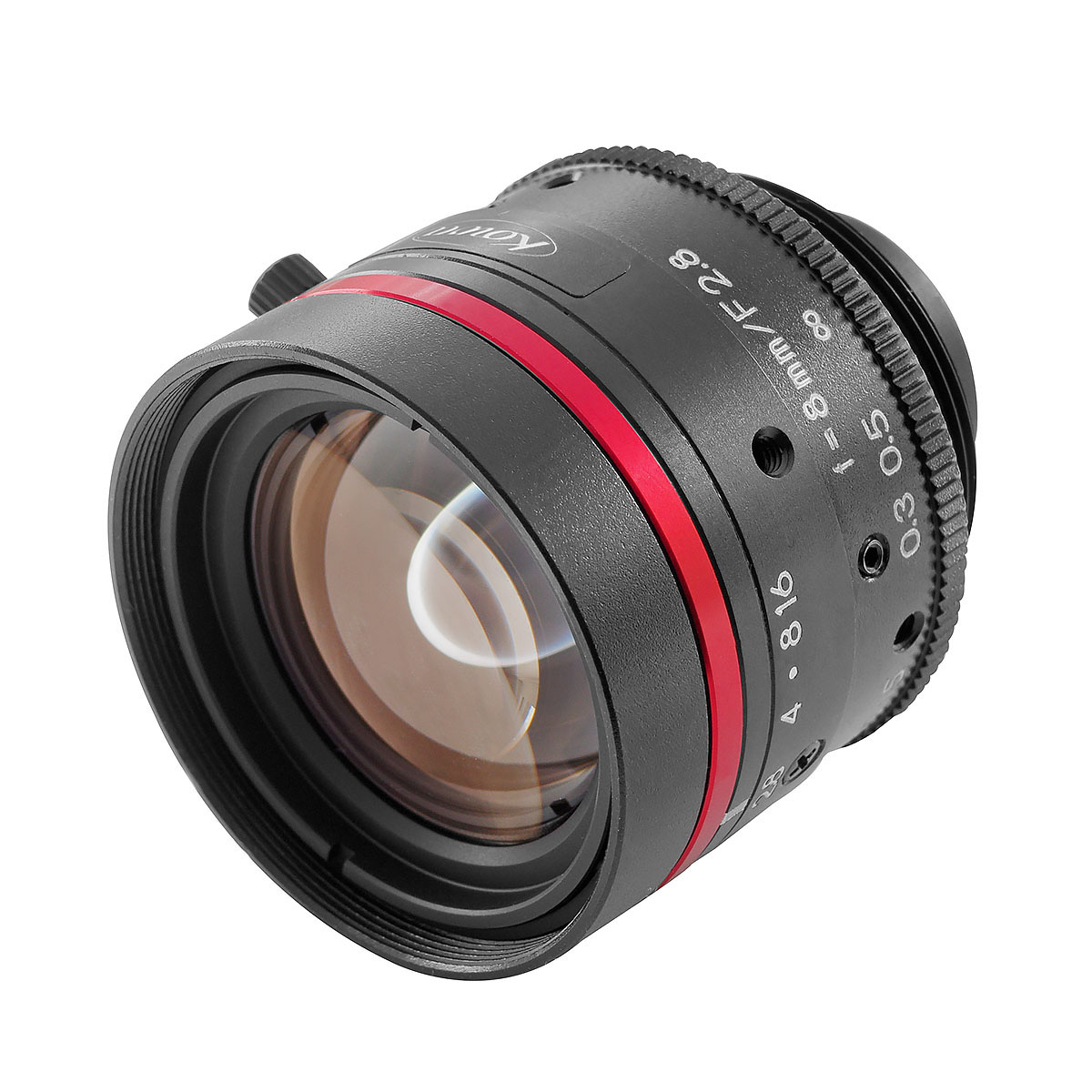

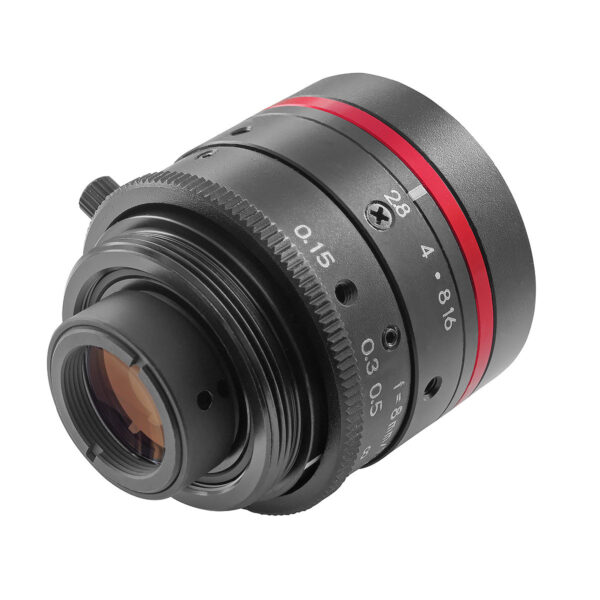

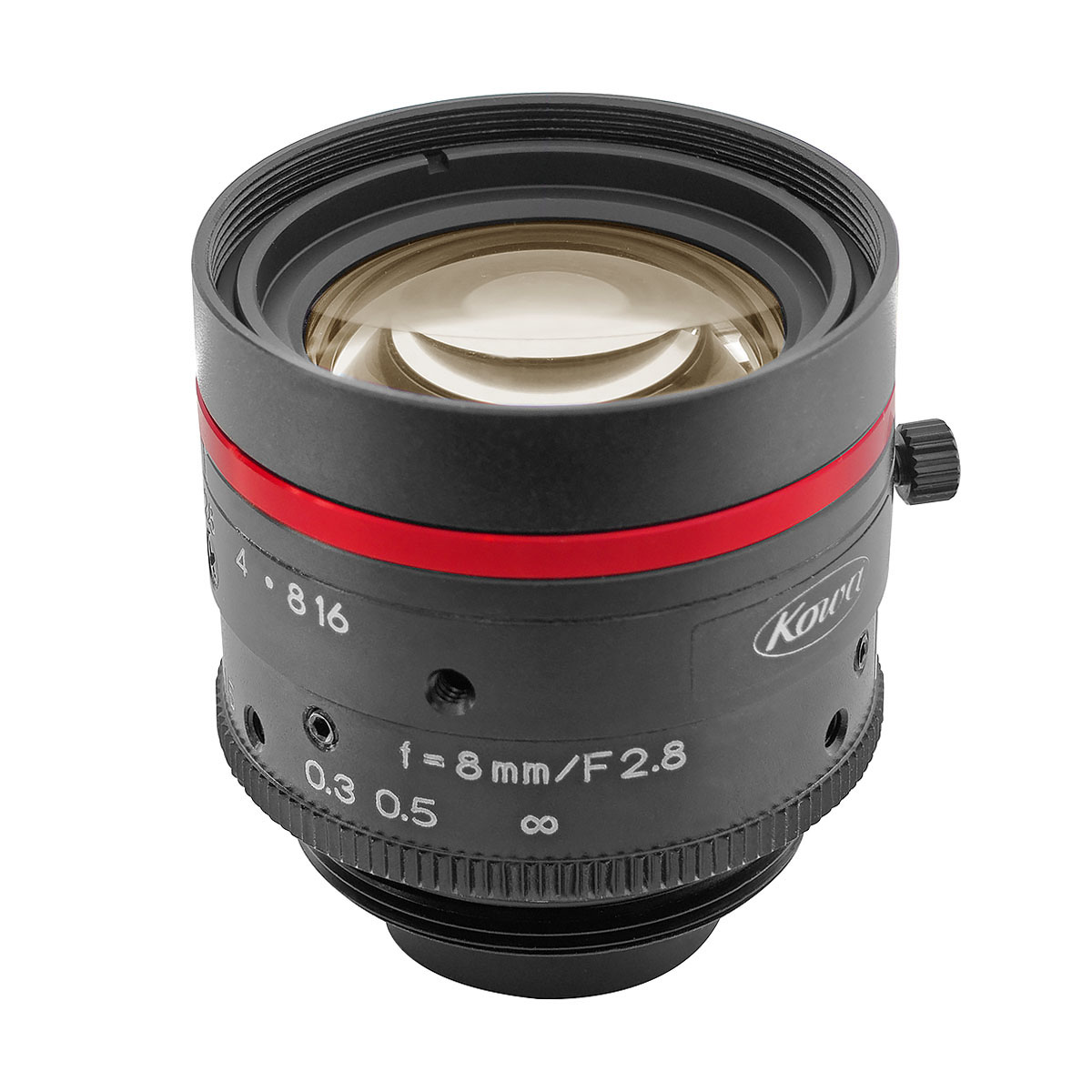

Product Information LM8JC5MC | 2/3″ 8mm 5MP ULTRA COMPACT Lens2/3″ 5 Megapixel C-mount industrial lens
Focal length 8mm
For sensors with a pixel size from 3.5μm
Suitable for Sony IMX250, IMX252, IMX264, IMX265 sensors and many more
Smallest 5 megapixel lens in its class

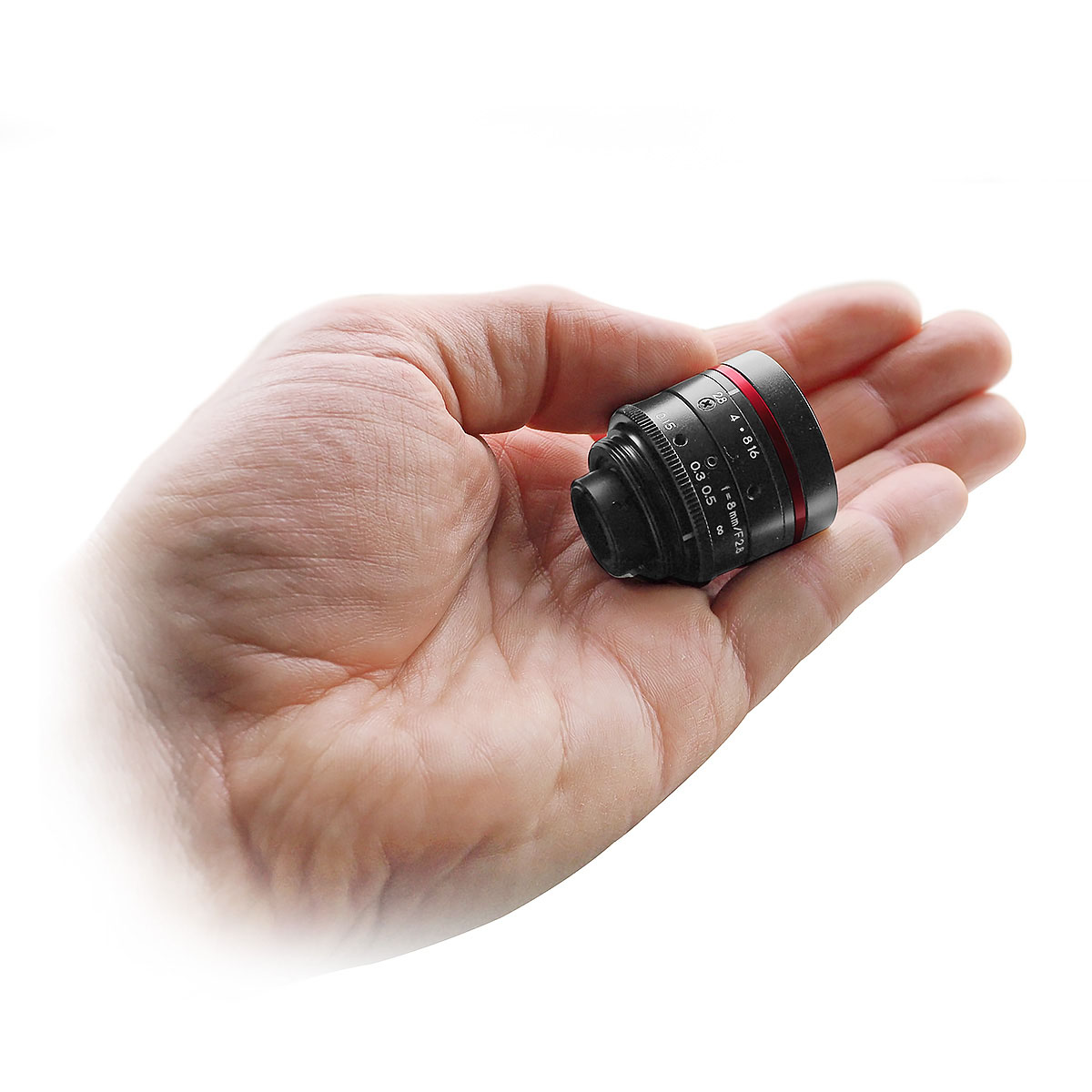

Ultra-compact design
Designed for: 2/3
Compatible: 1/1.8,1/2,1/3
| Pixel size (µm) | 3,45 |
| Iris control | Manual |
| Iris range (f stop) | 2,8 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm) |
| Focusing range (m) | 0,15 – ∞ |
| Focus control | Manual |
| Shooting range at mod horizontal (mm) | 178 |
| Shooting range at mod vertical (mm) | 132 |
| Resolution center | 160 |
| Resolution corner | 100 |
| Megapixel | 5 |
| Distortion (tv) (%) | -0,85 |
| Back focus in air (mm) | 10,8 |
| Filter size (mm) | M30,5 x P0,5 |
| Size (mm) | Ø32 X 27 |
| Weight (g) | 55 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Machine Vision |
For more information about the features, visit the Kowa Product Documentation.
