Description

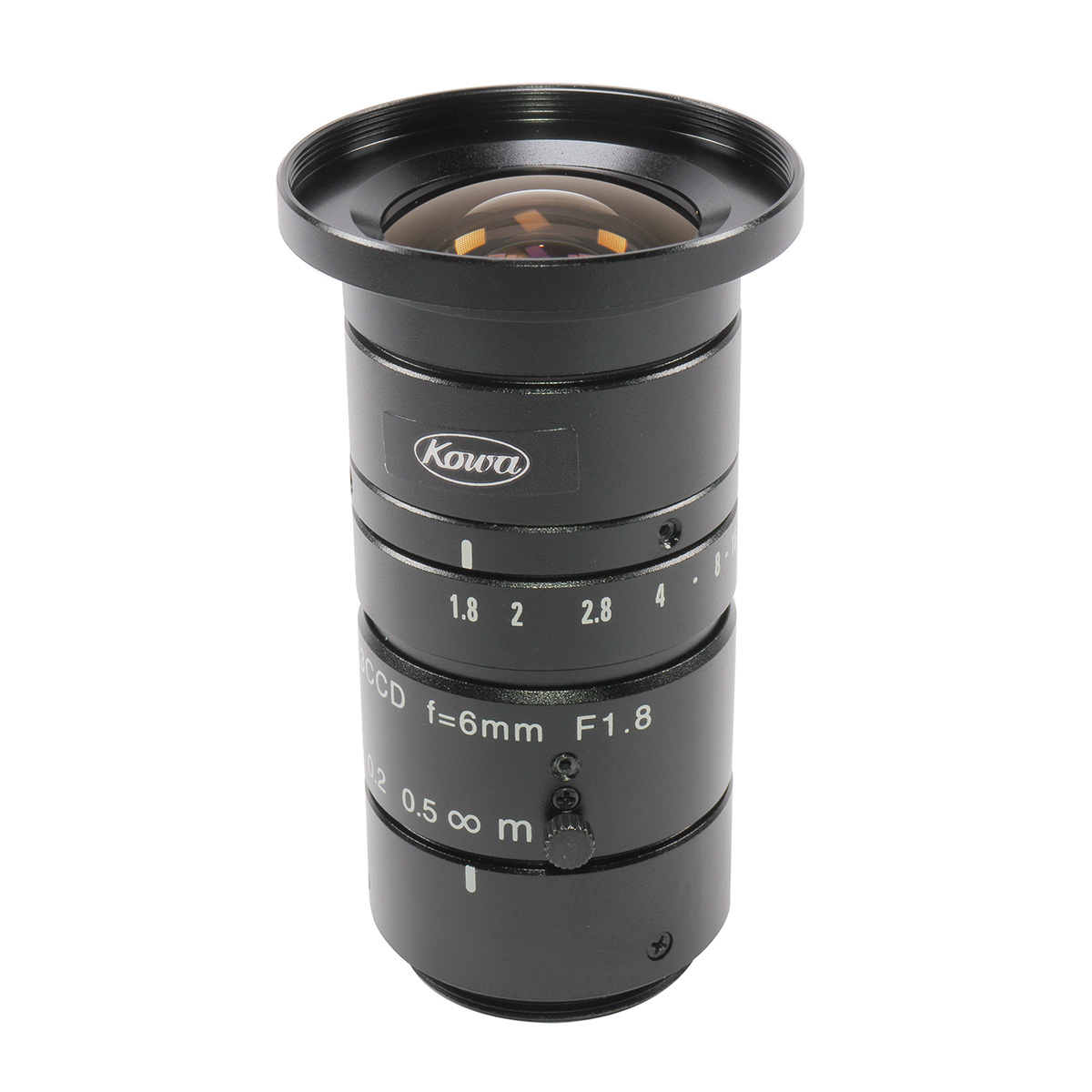

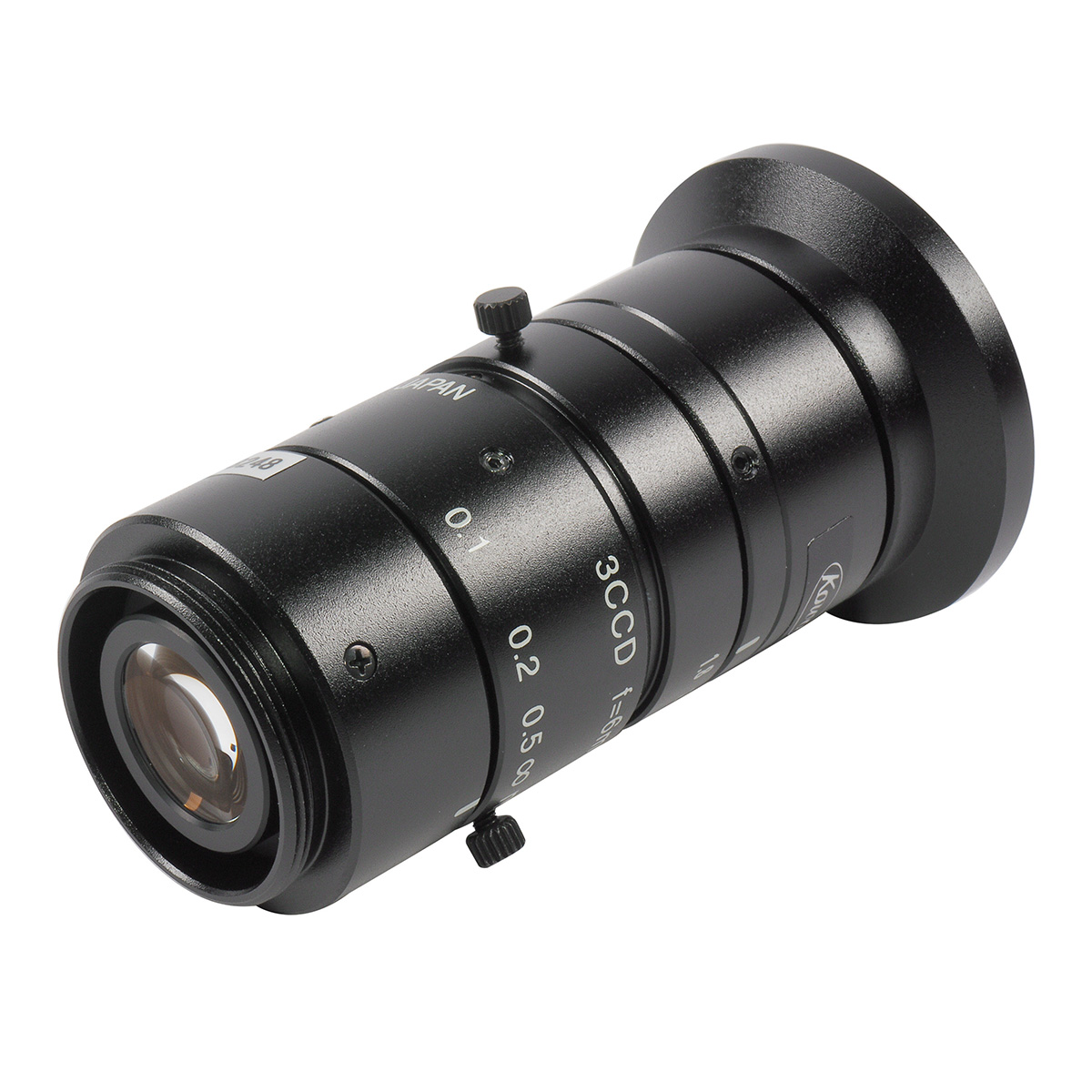

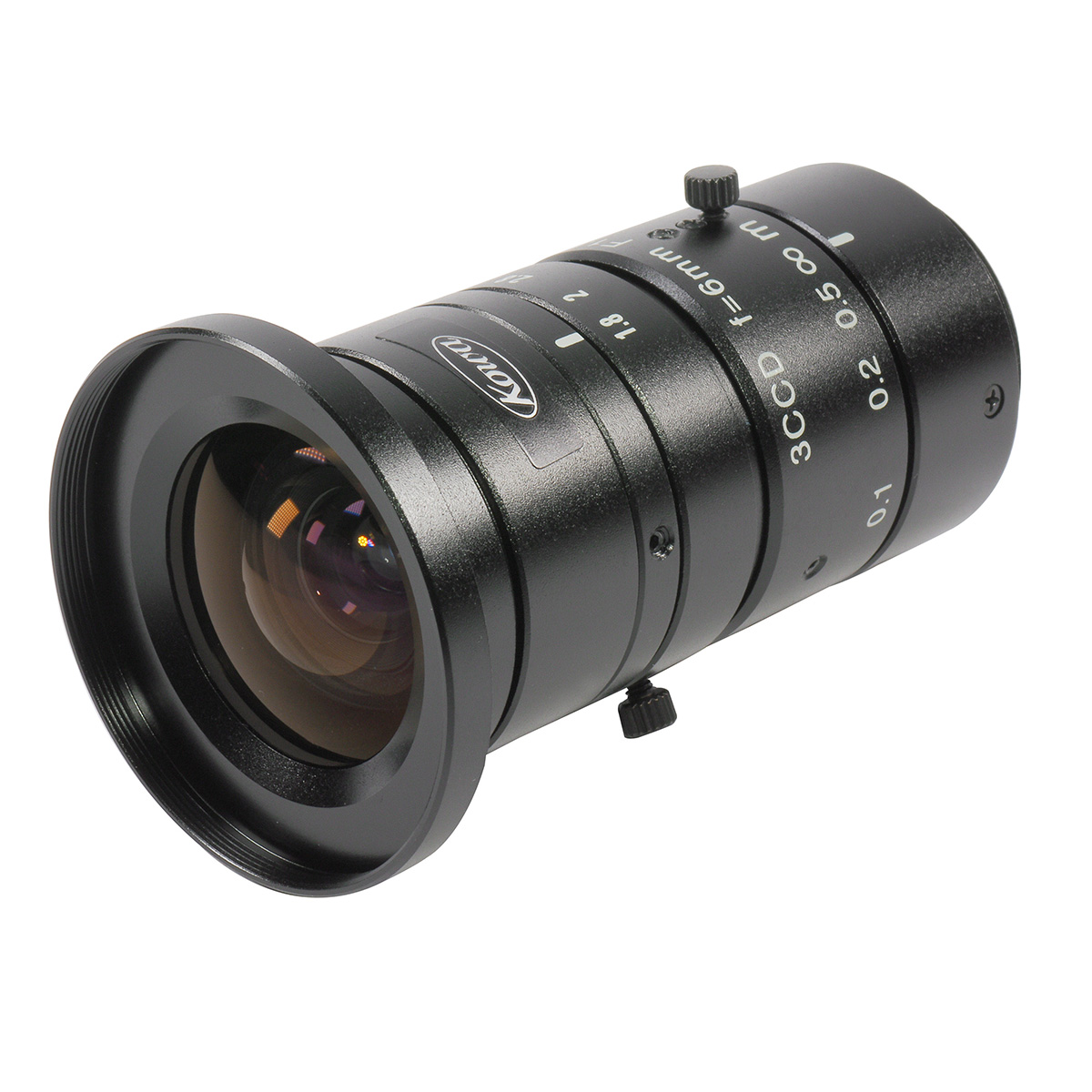

Product Information LM6NC3 – Build-to-orderLocking screws for iris and focus
Metal mount
Metal housing
| Pixel size (µm) | 4,5 |
| Iris control | Manual |
| Iris range (f stop) | 1,8 – 16 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm) |
| Focusing range (m) | 0,1 – ∞ |
| Focus control | Manual |
| Shooting range at mod horizontal (mm) | 117 |
| Shooting range at mod vertical (mm) | 95 |
| Resolution center | 120 |
| Resolution corner | 100 |
| Distortion (tv) (%) | -2,1 |
| Back focus in air (mm) | 15,2 |
| Filter size (mm) | M37,5 x P0,5 |
| Size (mm) | Ø39 X 64,3 |
| Weight (g) | 99 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Machine Vision, Broadcast |
For more information about the features, visit the Kowa Product Documentation.
