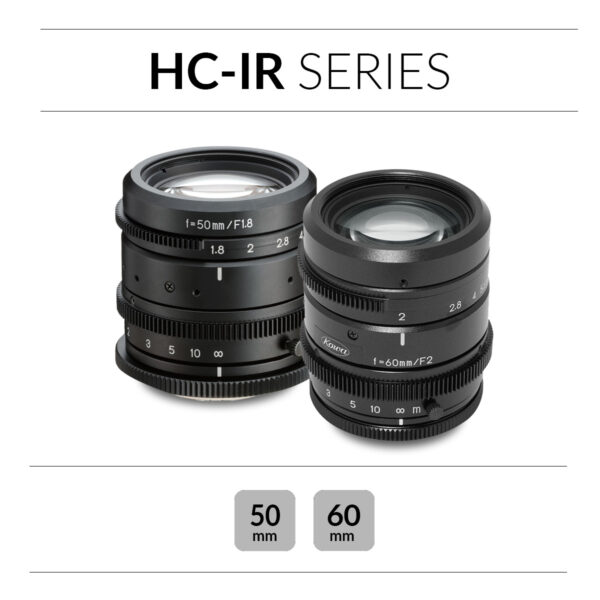

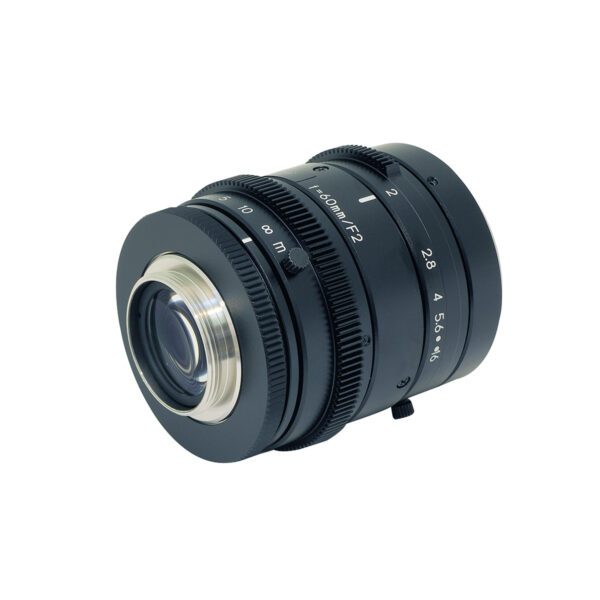

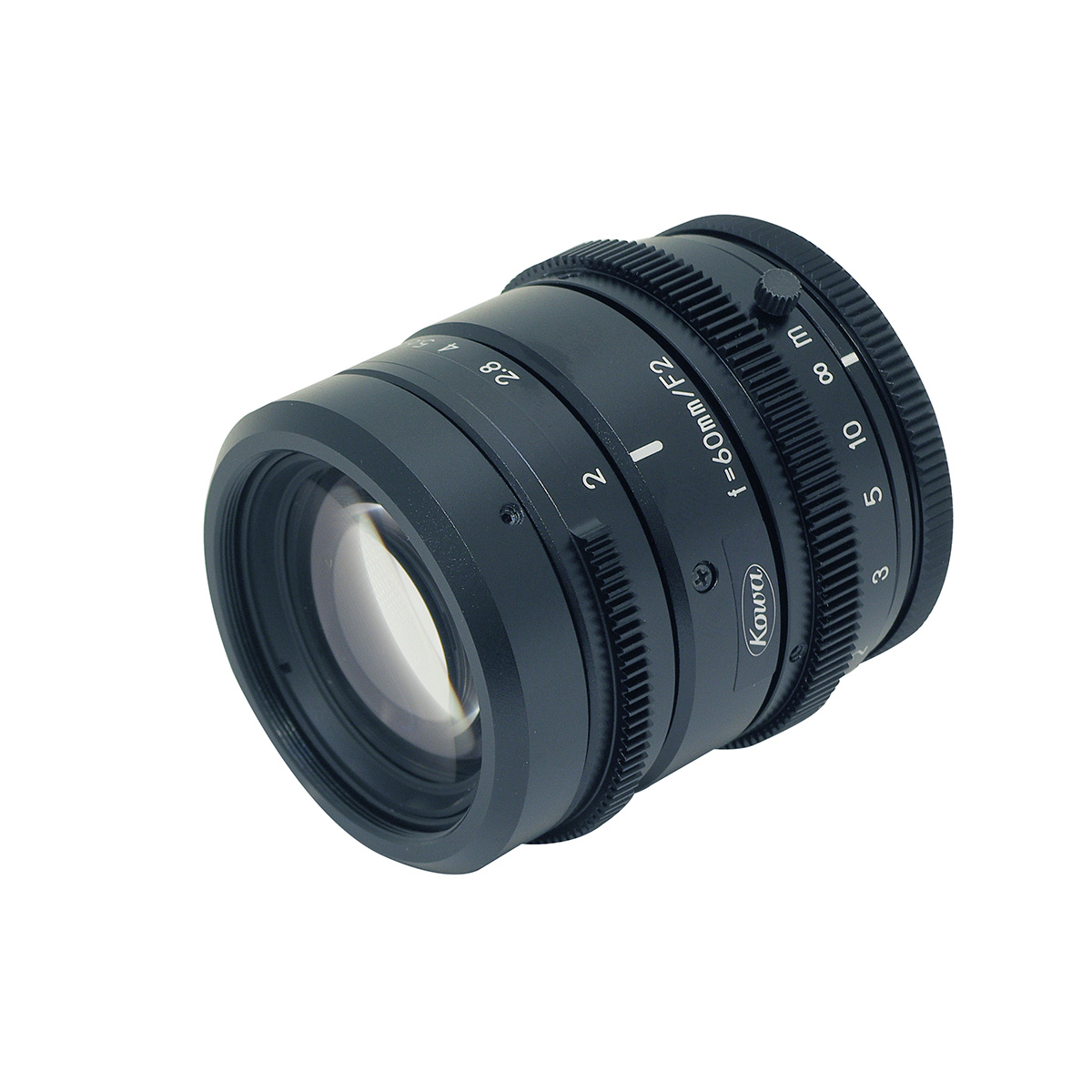

Product Information LM60HC-IR | Build to Order1″ 5 Megapixel C-mount Industrial Lens
Focal length 60mm
For sensors with a pixel size from 5.0μm
Suitable for Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more
Very good brightness in the peripheral areas
Designed for: 1
Compatible: 2/3,1/1.8,1/2,1/3
Limited compatibility: 1.1
| Pixel size (µm) | 5 |
| Iris control | Manual |
| Iris range (f stop) | 12 – 16 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm), IR-corrected (Day & Night) |
| Focusing range (m) | 1 – ∞ |
| Focus control | Manual |
| Shooting range at mod horizontal (mm) | 216,9 |
| Shooting range at mod vertical (mm) | 162,1 |
| Resolution center | 120 |
| Resolution corner | 80 |
| Distortion (tv) (%) | -0,06 |
| Back focus in air (mm) | 15,7 |
| Filter size (mm) | M37,5 x P0,5 |
| Size (mm) | Ø49,2 X 54,6 |
| Weight (g) | 200 |
| Temperature range (℃) | -10°C – +50°C |
| Application | ITS/Verkehrsüberwachung |
For more information about the features, visit the Kowa Product Documentation.
