Description

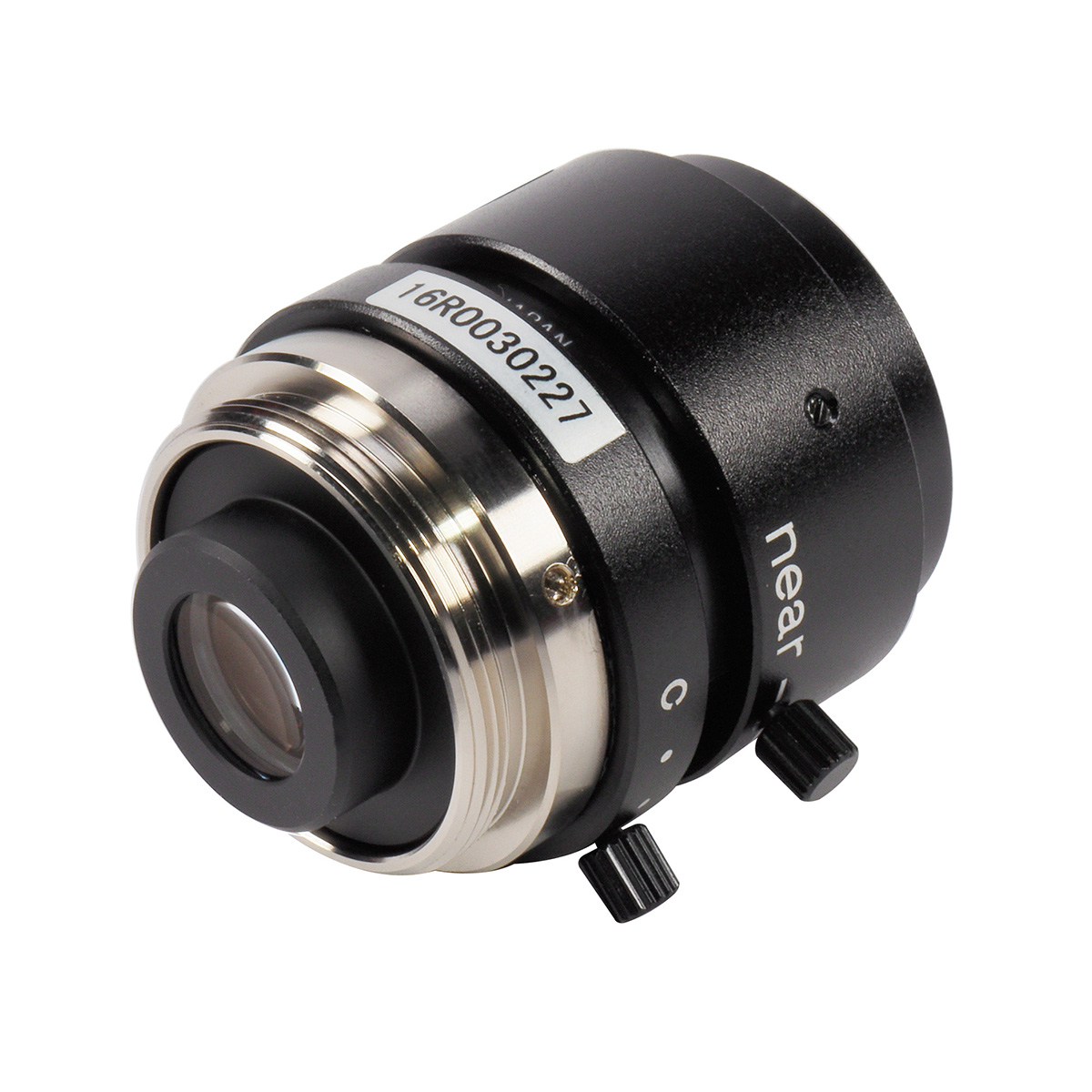

Product Information LM5NCL | 1/1.8″ 4.5mm C-Mount wide angle lens1/1,8″ Megapixel C-mount Industrial Lens
Focal length 4,5mm
For sensors with a pixel size from 5.0μm
Suitable for OnSemi MT9M00, OnSemi PYTHON1300 and OnSemi VITA1300 sensors and many more
Designed for: 1/1.8
Compatible: 1/2,1/3
| Pixel size (µm) | 5 |
| Iris control | Manual |
| Iris range (f stop) | 1,4 – 16 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm) |
| Focusing range (m) | 0,2 – ∞ |
| Focus control | Manual |
| Shooting range at mod horizontal (mm) | 260 |
| Shooting range at mod vertical (mm) | 180 |
| Resolution center | 100 |
| Resolution corner | 60 |
| Distortion (tv) (%) | -17,5 |
| Back focus in air (mm) | 9,93 |
| Filter size (mm) | no |
| Size (mm) | Ø31 X 29,5 |
| Weight (g) | 71 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Machine Vision |
For more information about the features, visit the Kowa Product Documentation.
