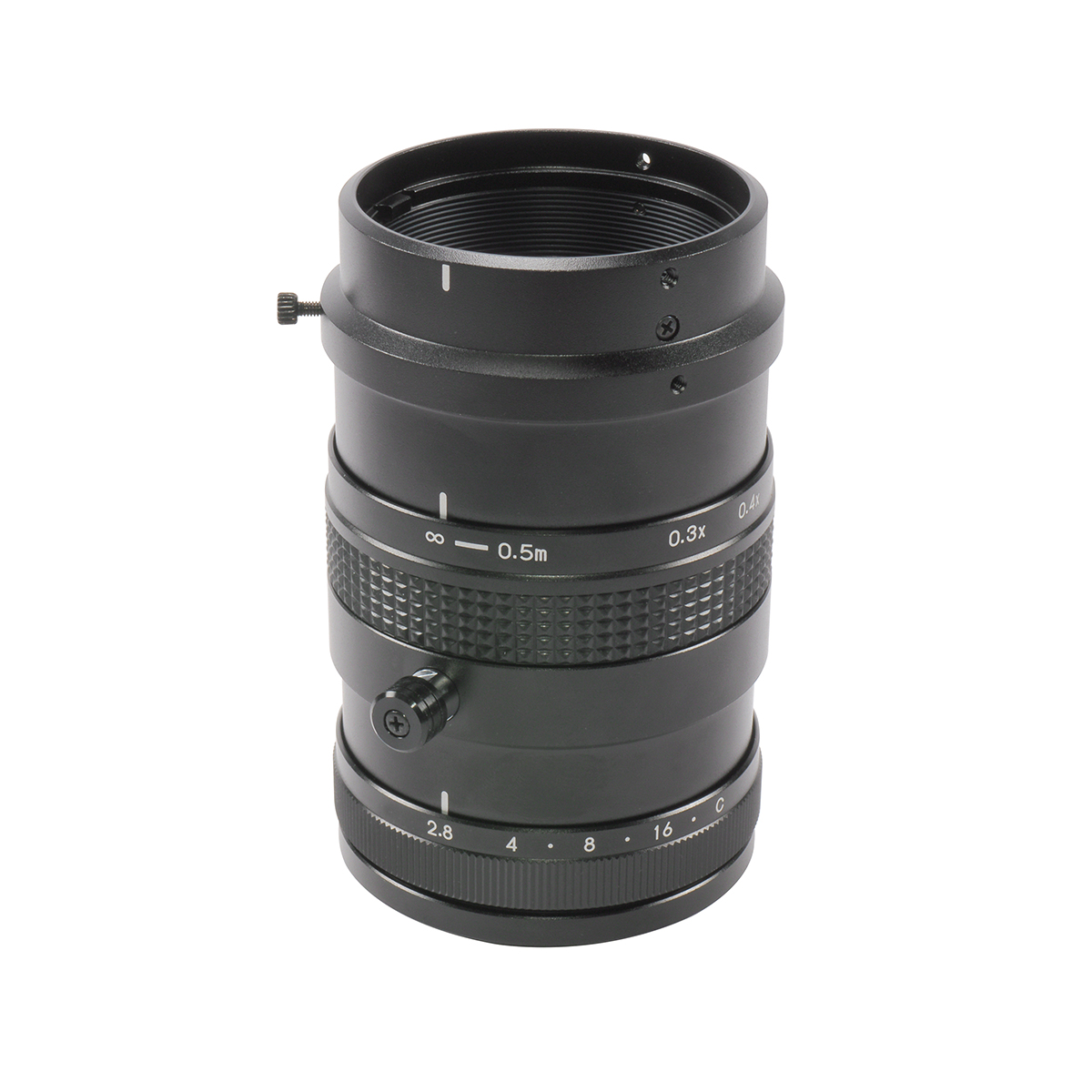

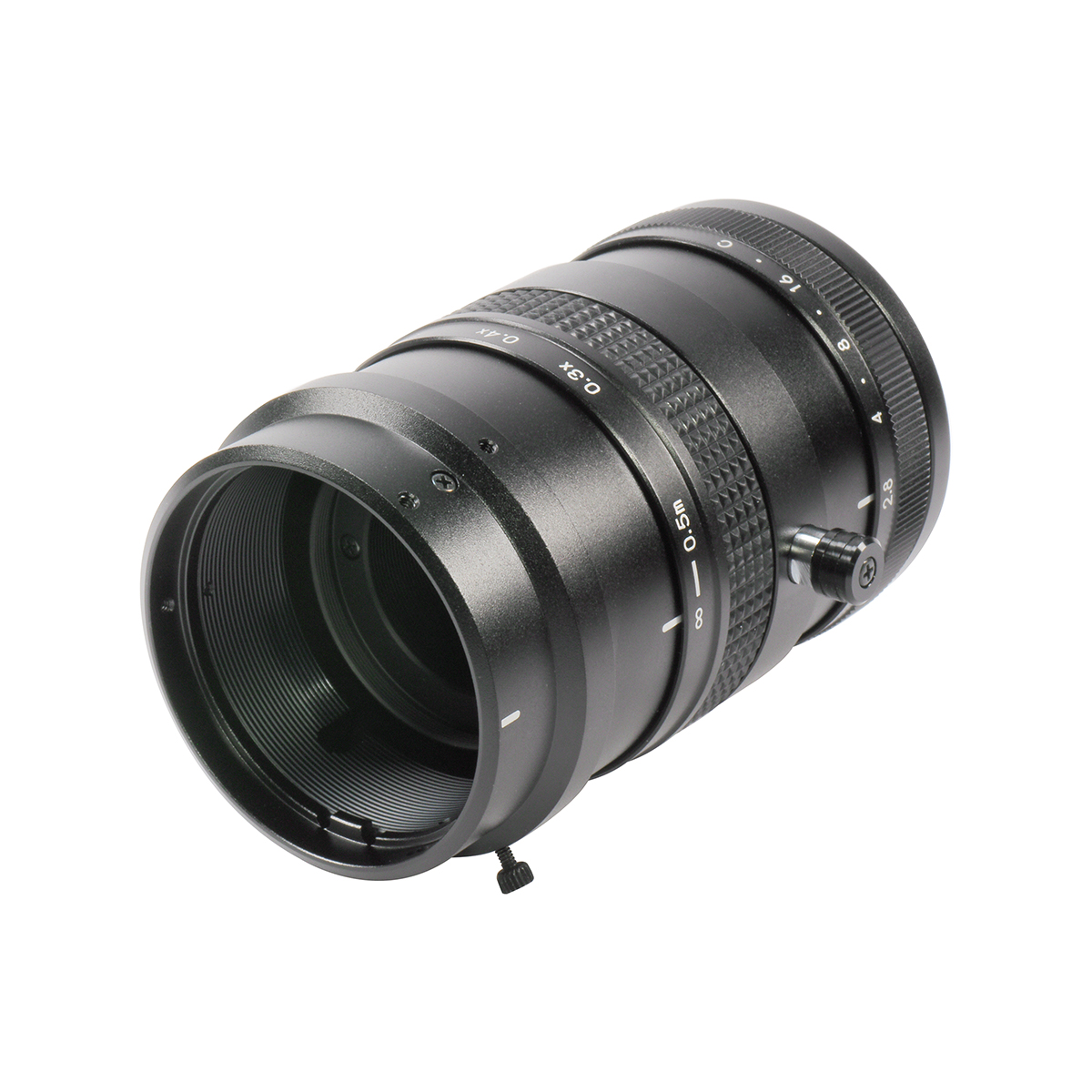

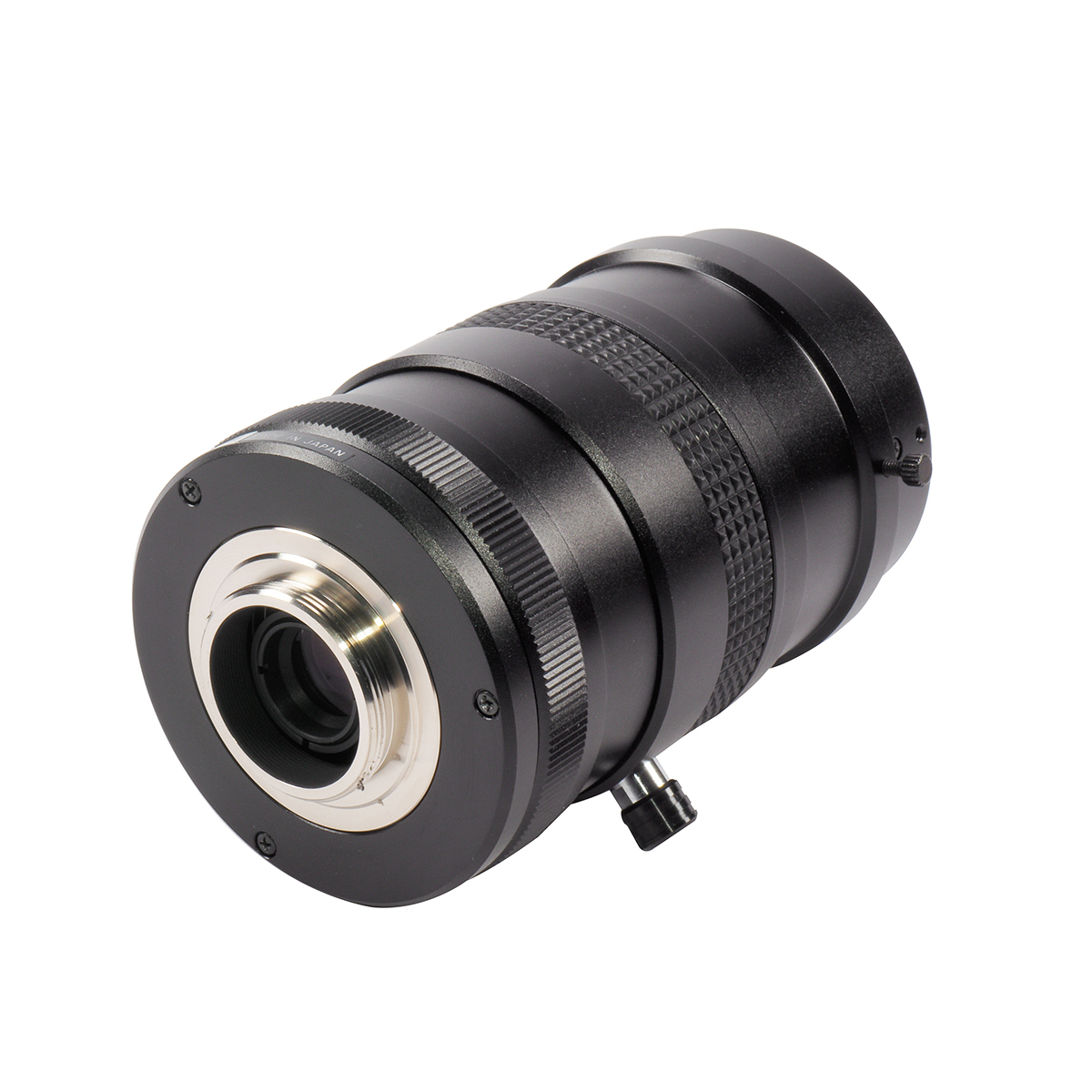

Product Information LM50TC discontinued, available while stocks last2/3″ 5 Megapixel C-mount industrial lens
High contrast throughout the image
Low TV-distortion
0.3-1.0x magnification
Designed for: 2/3
Compatible: 1/1.8,1/2,1/3
| Pixel size (µm) | 5 |
| Iris control | Manual |
| Iris range (f stop) | 2,8 |
| Lens type | Manueller Zoom, Telecentric |
| Wavelength range | VIS (380nm – 780nm) |
| Focusing range (m) | 0,08 – ∞ |
| Focus control | Manual |
| Resolution center | 100 |
| Resolution corner | 60 |
| Back focus in air (mm) | 22 |
| Filter size (mm) | M37,5 x P0,5 |
| Size (mm) | Ø56 X 115,7 |
| Weight (g) | 317 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Machine Vision |
For more information about the features, visit the Kowa Product Documentation.
