Description
Product Information LM50SC discontinued, build to orderReplaced by LM50FC24M
Small stock quantities still available
MOQ for new production 100 pcs.

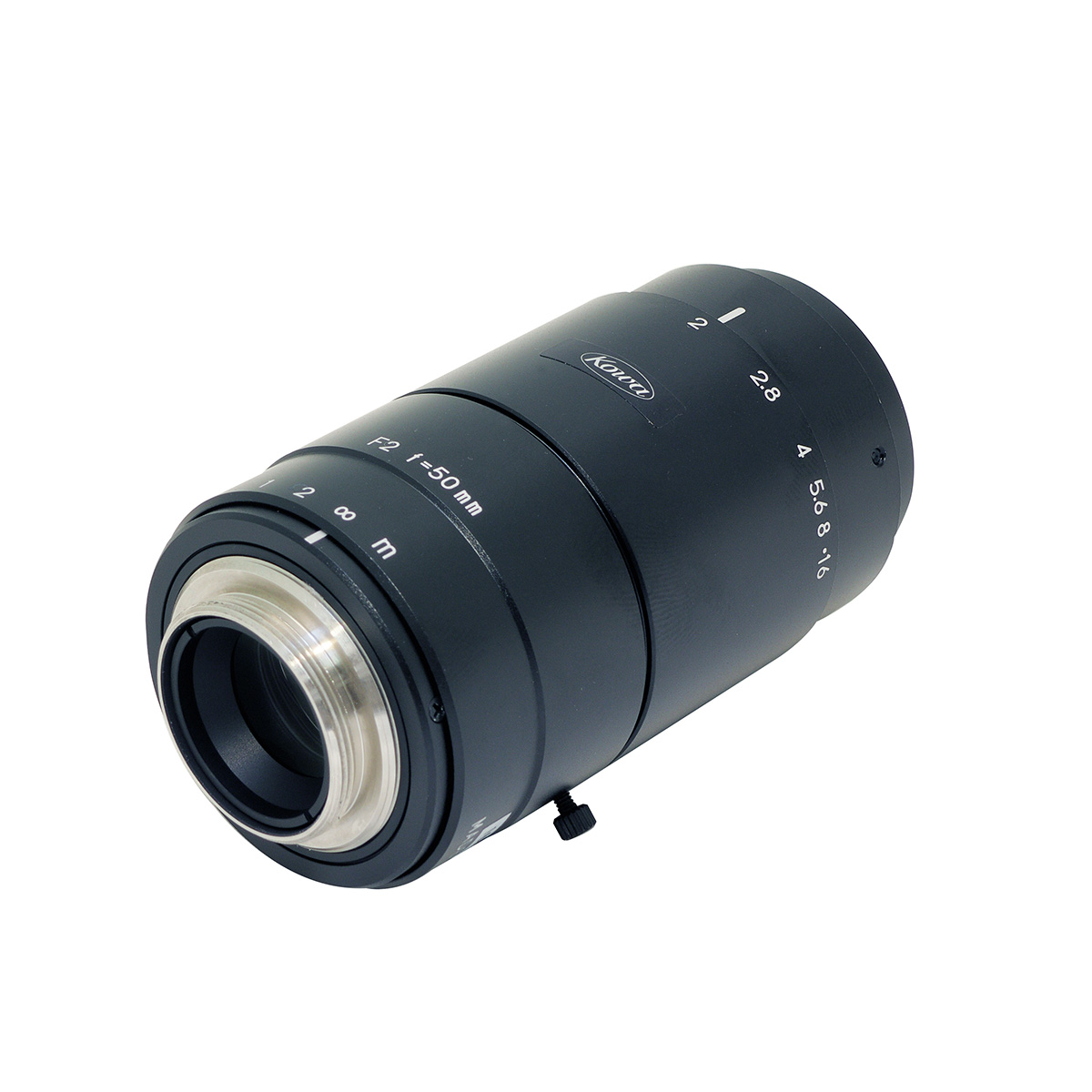

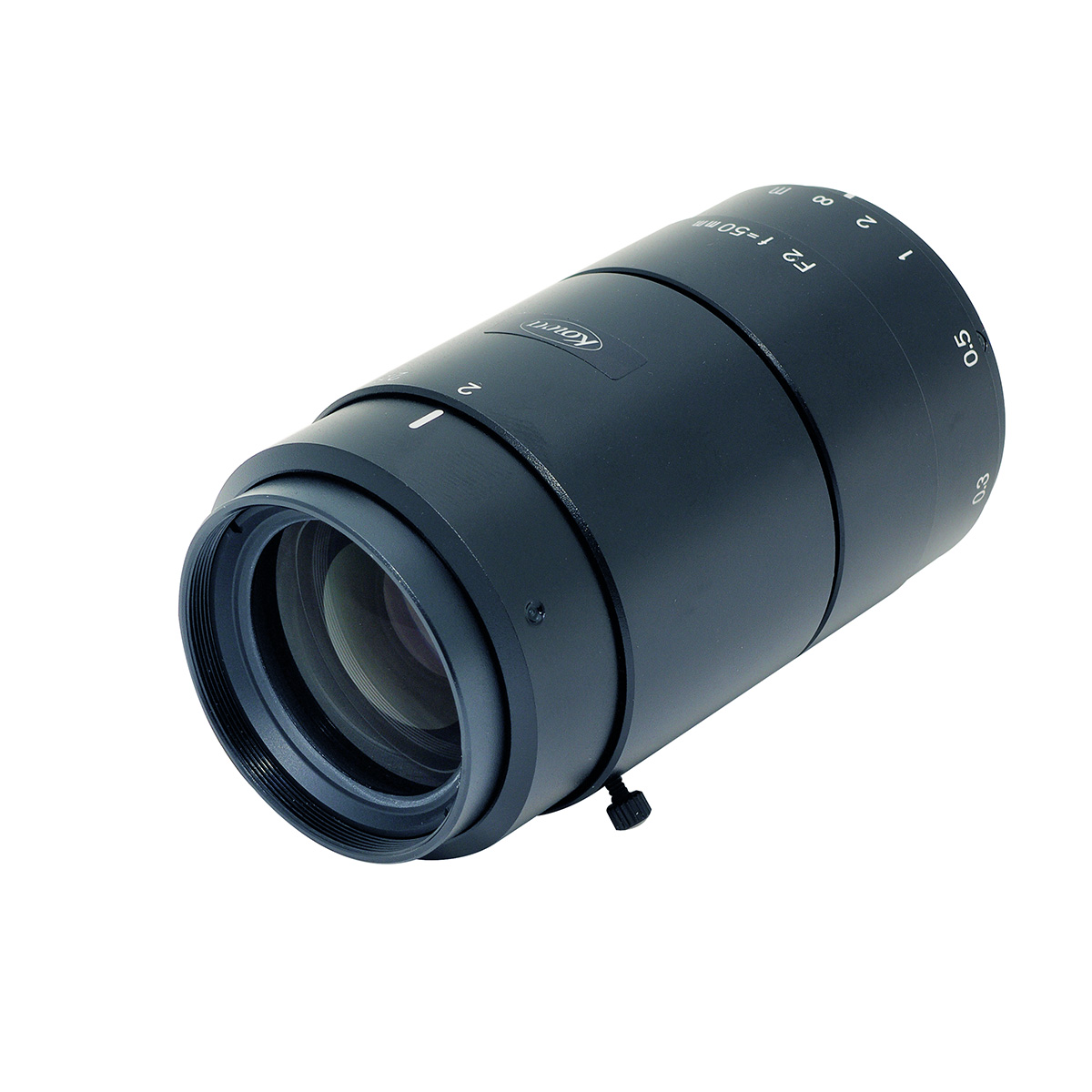

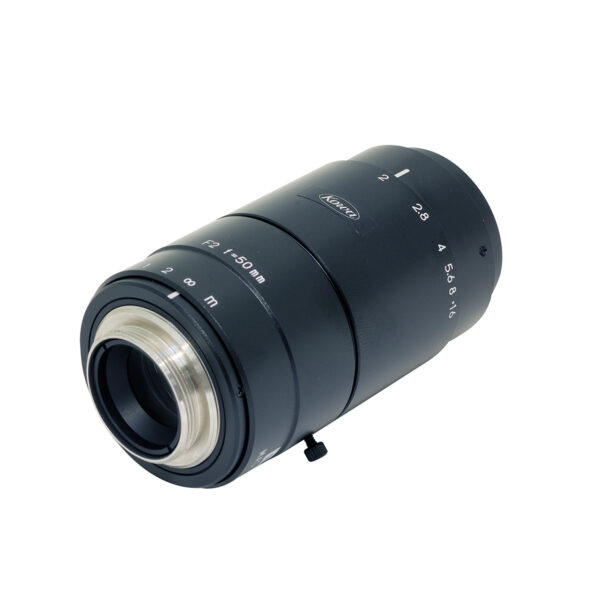

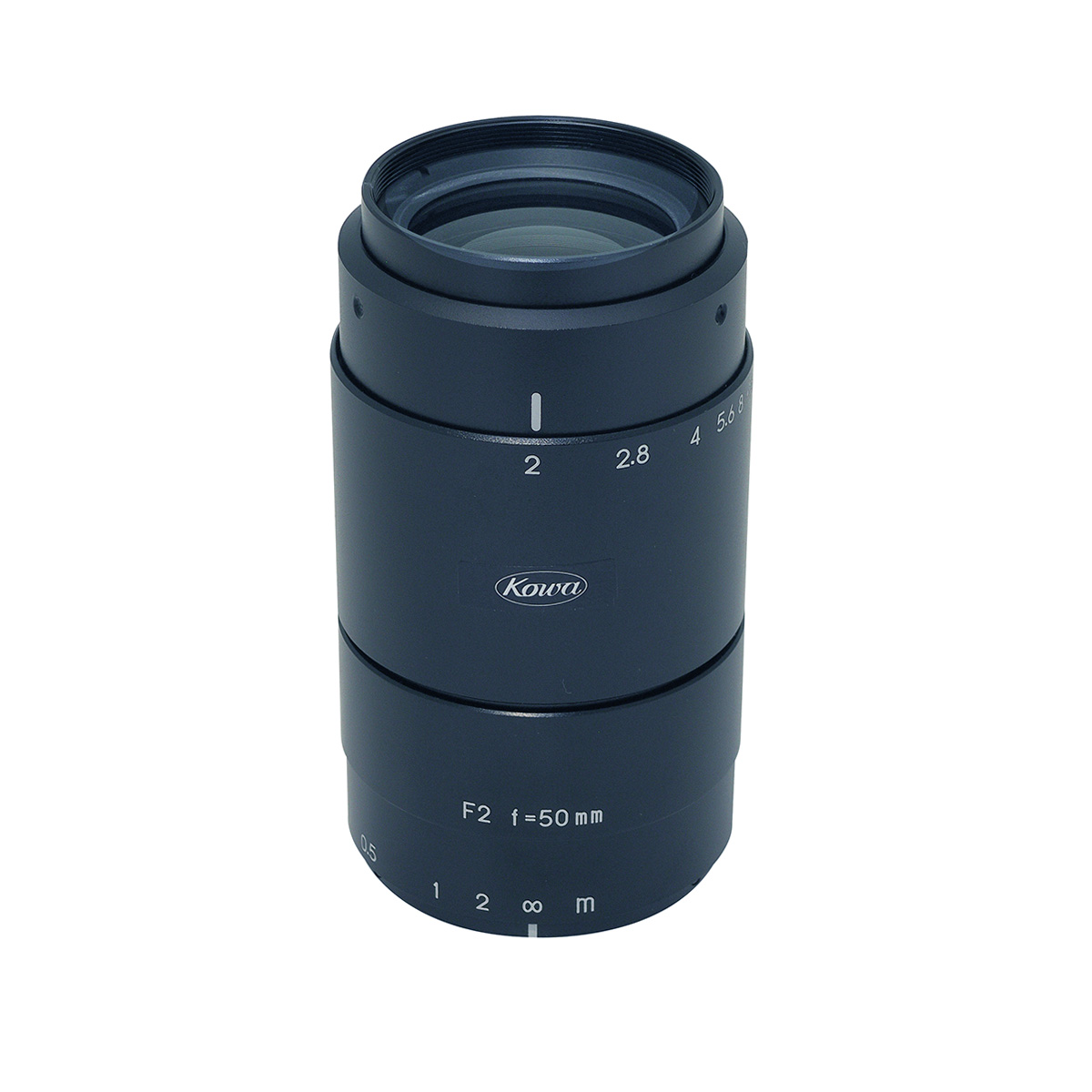

1″ C-mount lens
16mm image circle
Metal body
Metal mount
6 megapixel high resolution
Adjustment screw for aperture and focus
| Pixel size (µm) | 3 |
| Iris control | Manual |
| Iris range (f stop) | 2 – 22 |
| Lens type | Fixed Focal Lens |
| Wavelength range | Broad Band Coating (380nm – 1000nm), VIS (380nm – 780nm) |
| Focusing range (m) | 0,3 – ∞ |
| Focus control | Manual |
| Shooting range at mod horizontal (mm) | 70 |
| Shooting range at mod vertical (mm) | 52 |
| Resolution center | 160 |
| Resolution corner | 120 |
| Distortion (tv) (%) | -0,003 |
| Back focus in air (mm) | 21,6 |
| Filter size (mm) | M34 x 0,5 |
| Size (mm) | 78,5 x 43 |
| Weight (g) | 210 |
| Temperature range (℃) | -10 °C – +50 °C |
| Application | Machine Vision, ITS/Traffic Control |
For more information about the features, visit the Kowa Product Documentation.
