Description
Product Information LM50JC3M2 discontinued | build to orderSmall stock quantities still available
MOQ for new production 100 pcs.

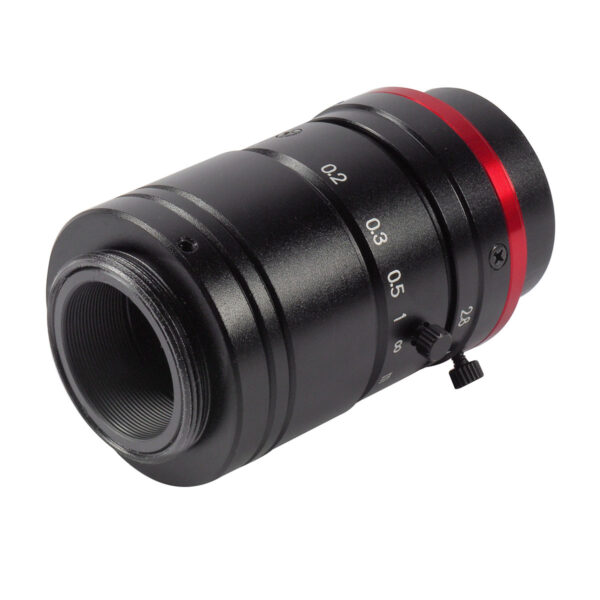

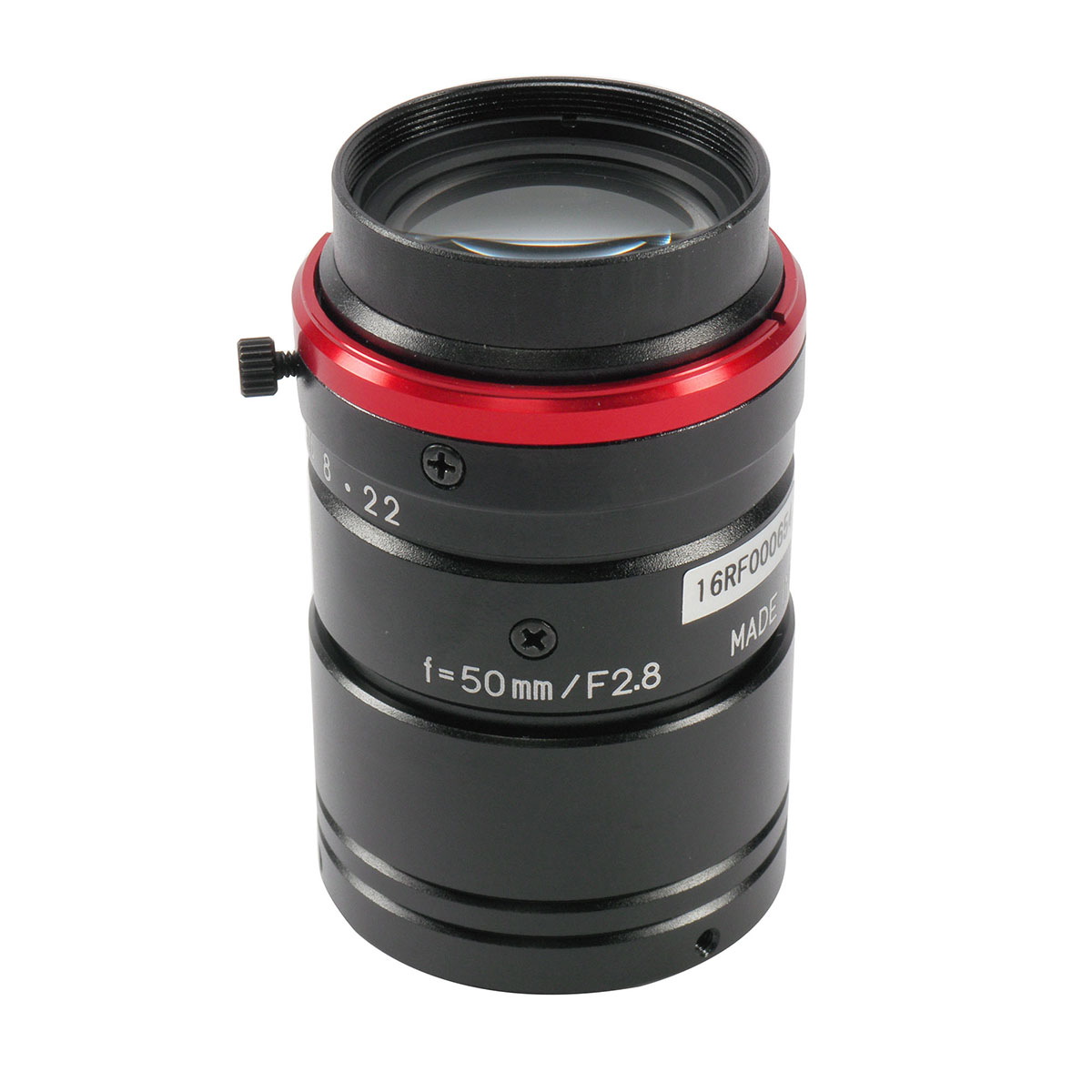

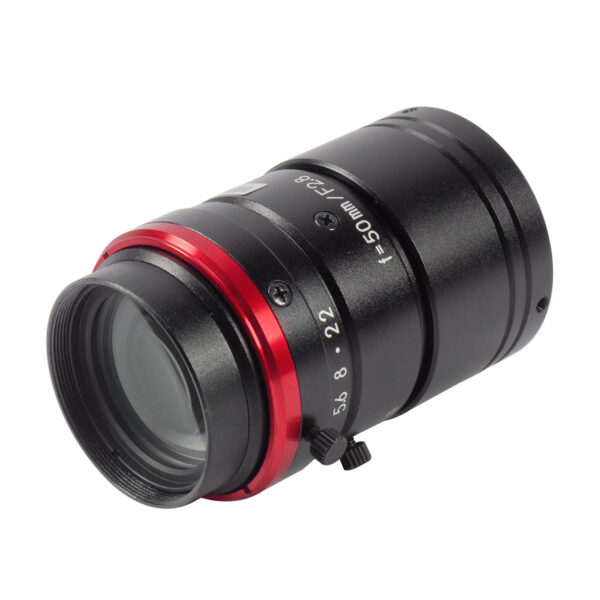

2/3″ 3 Megapixel C-mount industrial lens
Focal length 50mm
For sensors with a pixel size from 4.0μm
Suitable for Sony IMX174, Sony IMX252 and Sony IMX273 sensors and many more
Designed for: 2/3
Compatible: 1/1.8,1/2,1/3
Limited compatibility: 1.1,1,1/1.2
| Pixel size (µm) | 4 |
| Iris control | Manual |
| Iris range (f stop) | 2,8 – 16 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm), Broad Band Coating (380nm – 1000nm) |
| Focusing range (m) | 0,2 – ∞ |
| Focus control | Manual |
| Shooting range at mod horizontal (mm) | 29,3 |
| Shooting range at mod vertical (mm) | 21,9 |
| Resolution center | 130 |
| Resolution corner | 110 |
| Megapixel | 3 |
| Distortion (tv) (%) | -0,03 |
| Back focus in air (mm) | 35,5 |
| Filter size (mm) | M27 x P0,5 |
| Size (mm) | Ø34 X 55 |
| Weight (g) | 95 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Machine Vision |
For more information about the features, visit the Kowa Product Documentation.
