Description

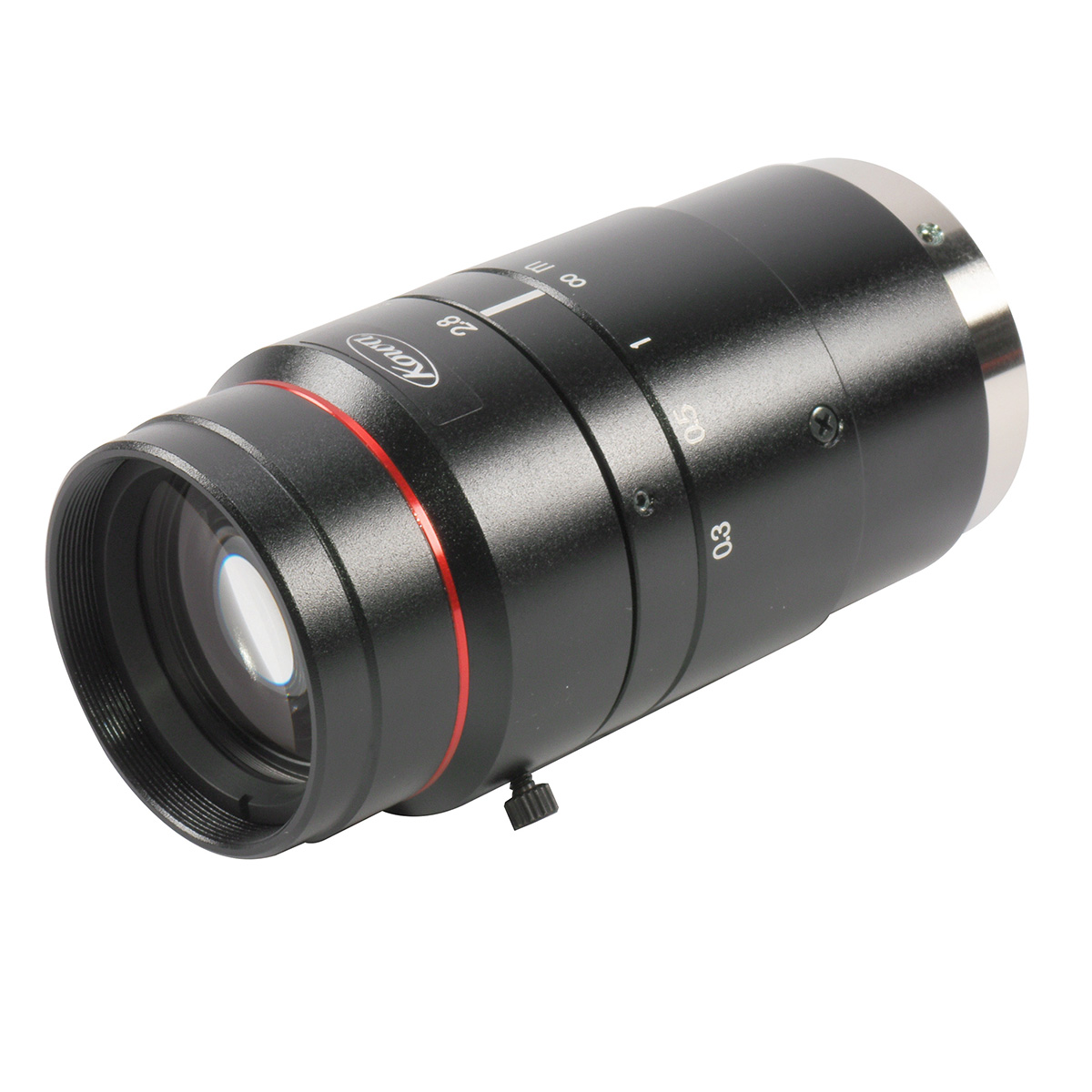

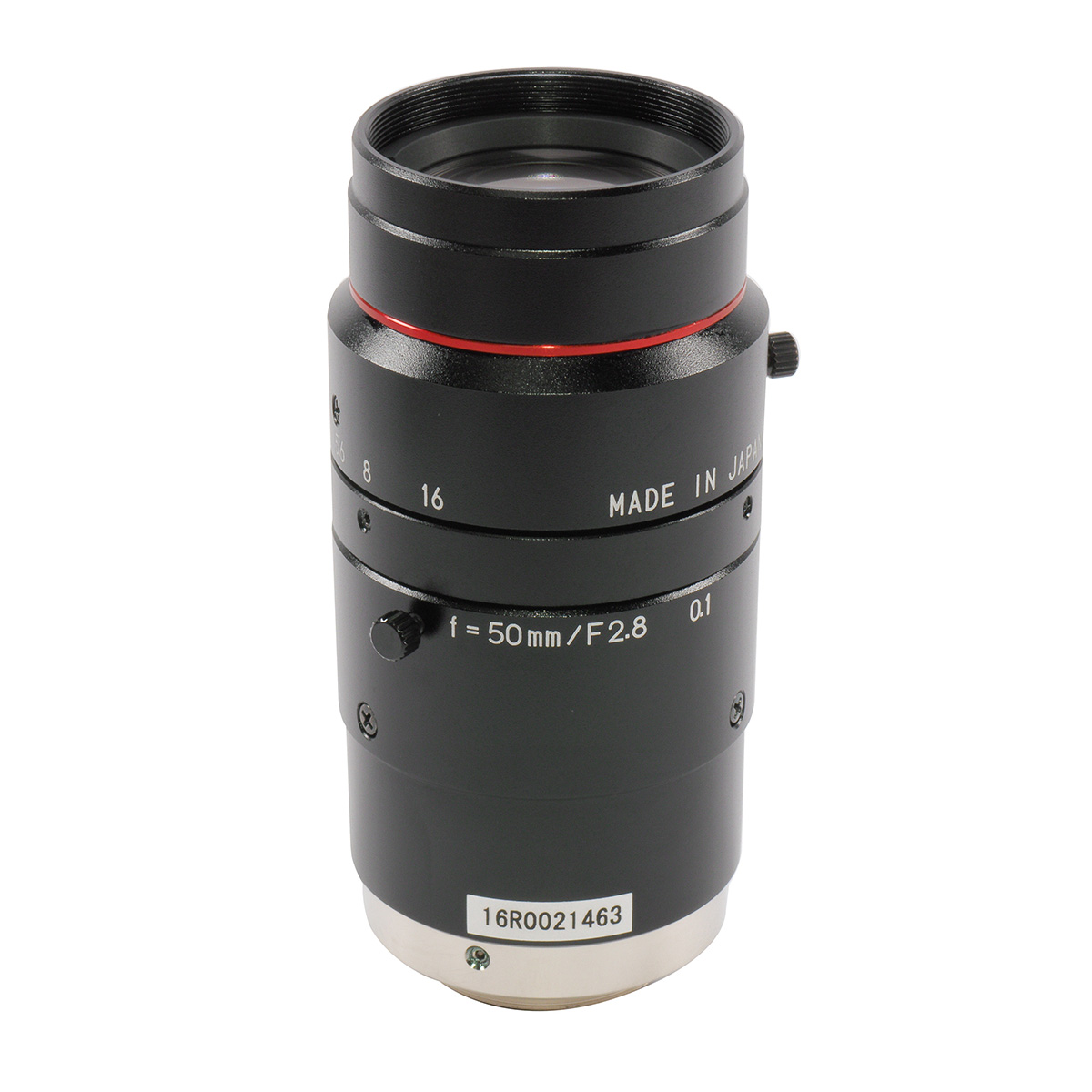

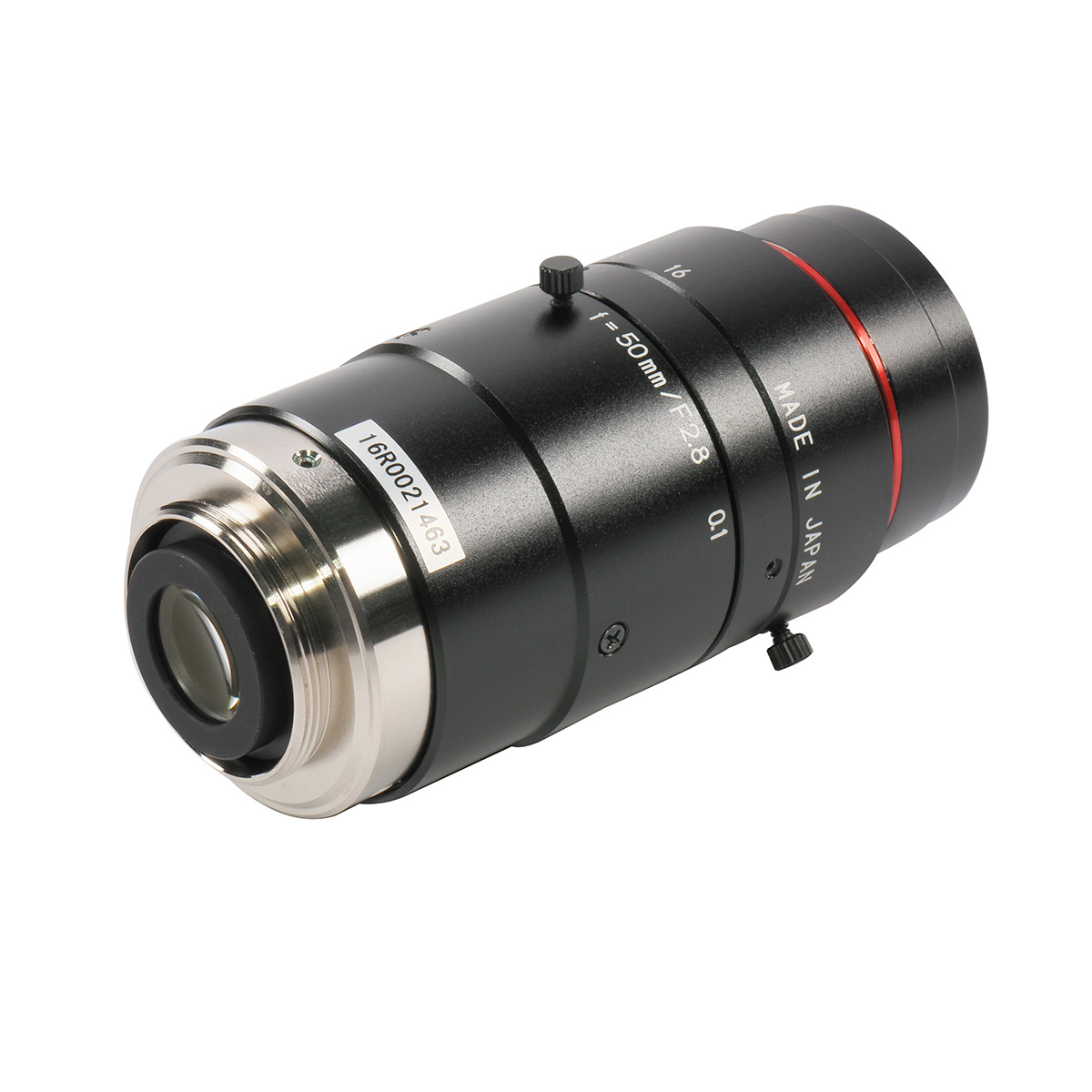

Product Information LM50JC10M | 2/3″ 50mm 10MP C-Mount Lens2/3″ 10 Megapixel C-mount Industrial Lens
Focal length 50mm
For sensors with a pixel size from 2.5μm
Suitable for Sony IMX250, Sony IMX264 and Aptina MT9D131 sensors and many more
Floating mechanism to eliminate optical aberrations
Broadband Coating: Transmission from VIS to NIR
Designed for: 2/3
Compatible: 1/1.8,1/2,1/3
Limited compatibility: 1/1.2
| Pixel size (µm) | 2,5 |
| Iris control | Manual |
| Iris range (f stop) | 2,8 – 16 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm), Broad Band Coating (380nm – 1000nm) |
| Focusing range (m) | 0,1 – ∞ |
| Focus control | Manual |
| Shooting range at mod horizontal (mm) | 19,1 |
| Shooting range at mod vertical (mm) | 14,3 |
| Resolution center | 200 |
| Resolution corner | 160 |
| Megapixel | 10 |
| Distortion (tv) (%) | -0,02 |
| Back focus in air (mm) | 12,8 |
| Filter size (mm) | M30,5 x P0,5 |
| Size (mm) | Ø38 X 77 |
| Weight (g) | 170 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Machine Vision, Broadcast |
For more information about the features, visit the Kowa Product Documentation.
