Description

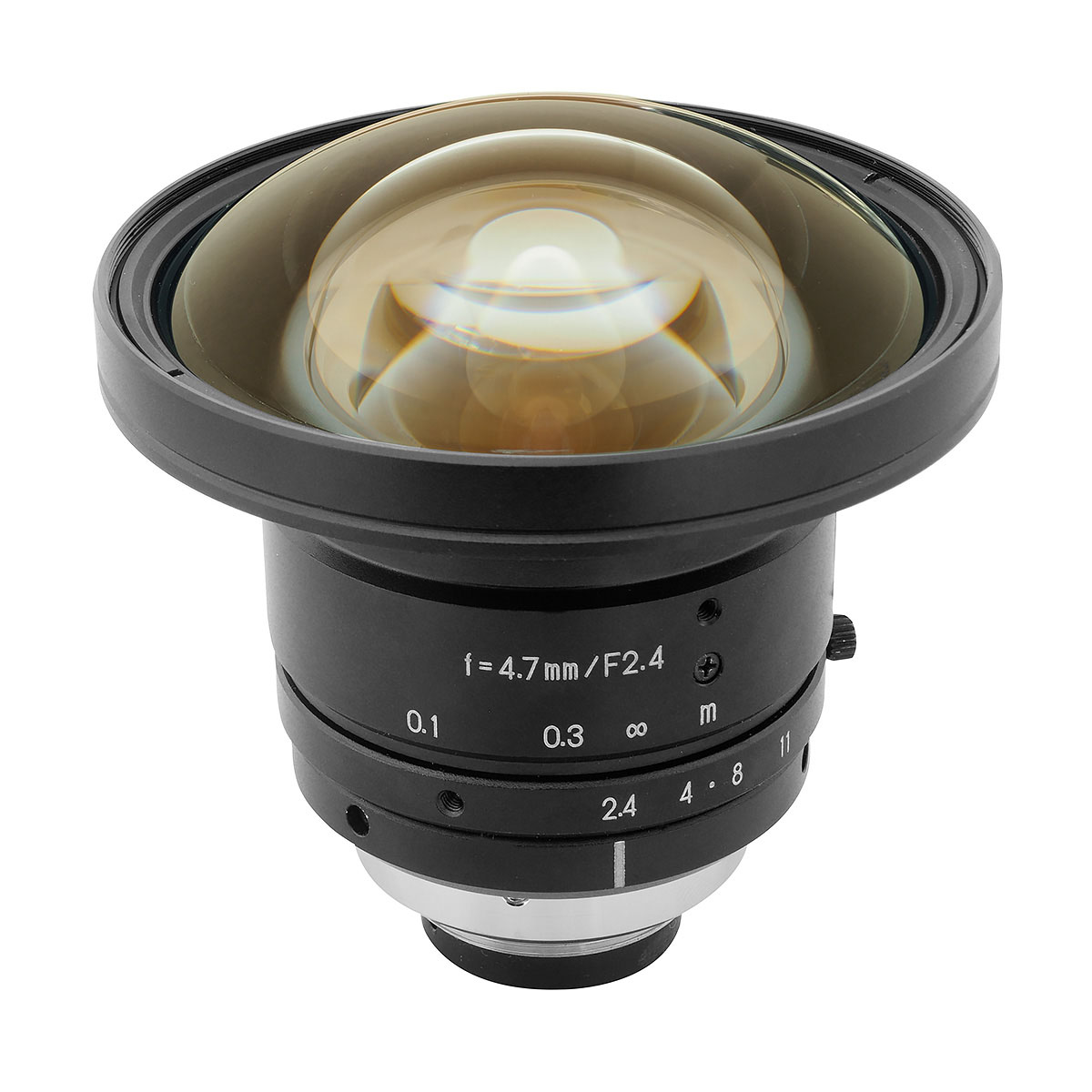

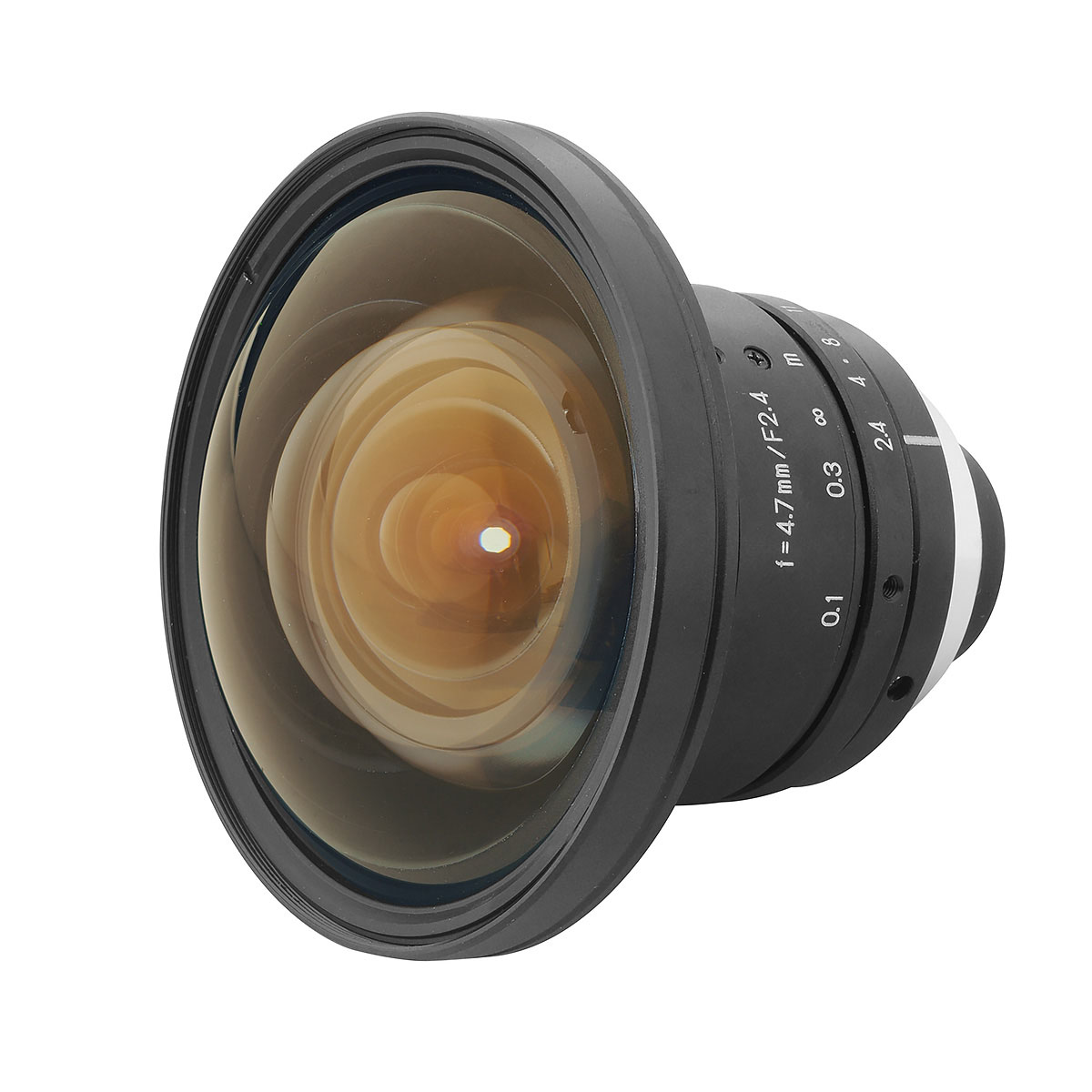

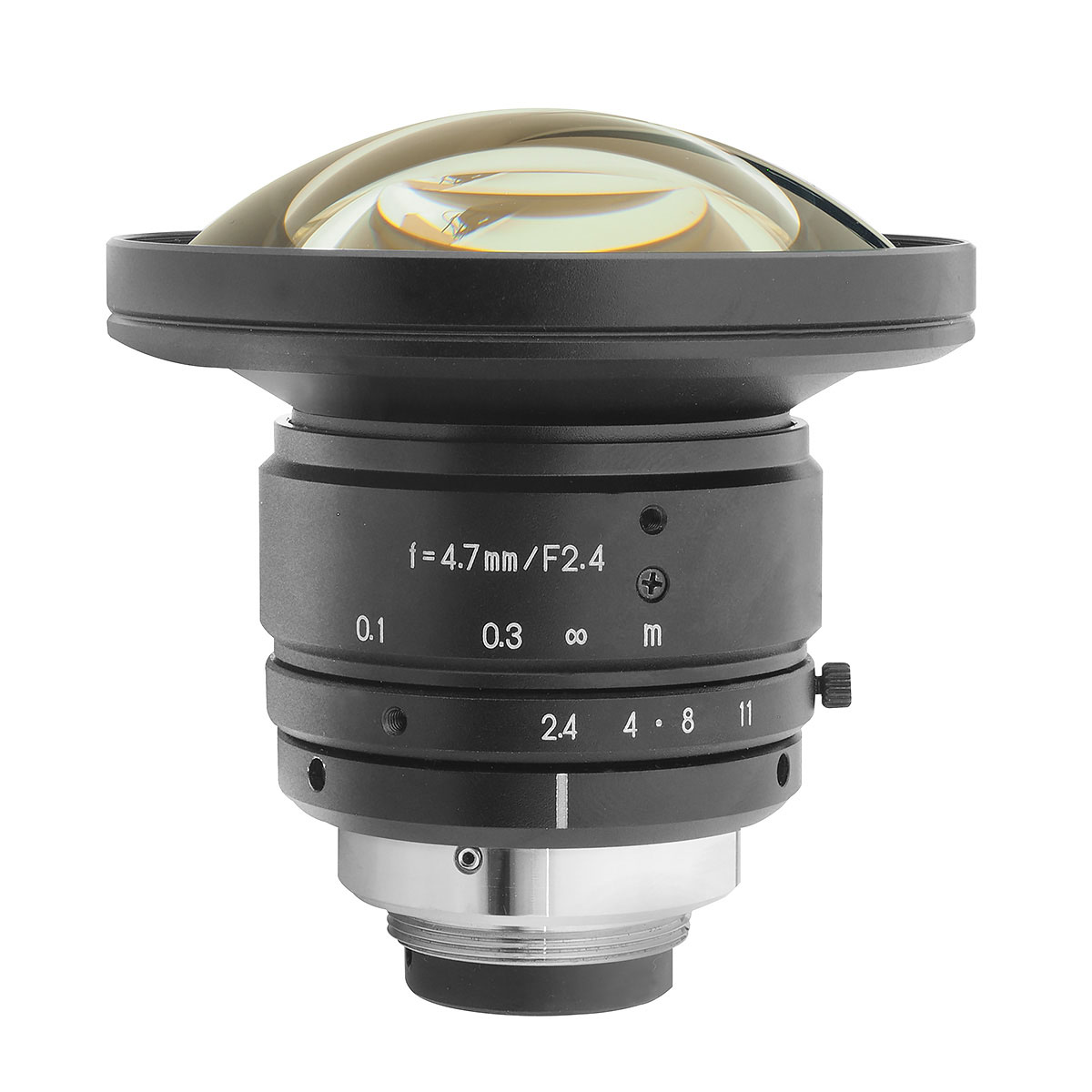

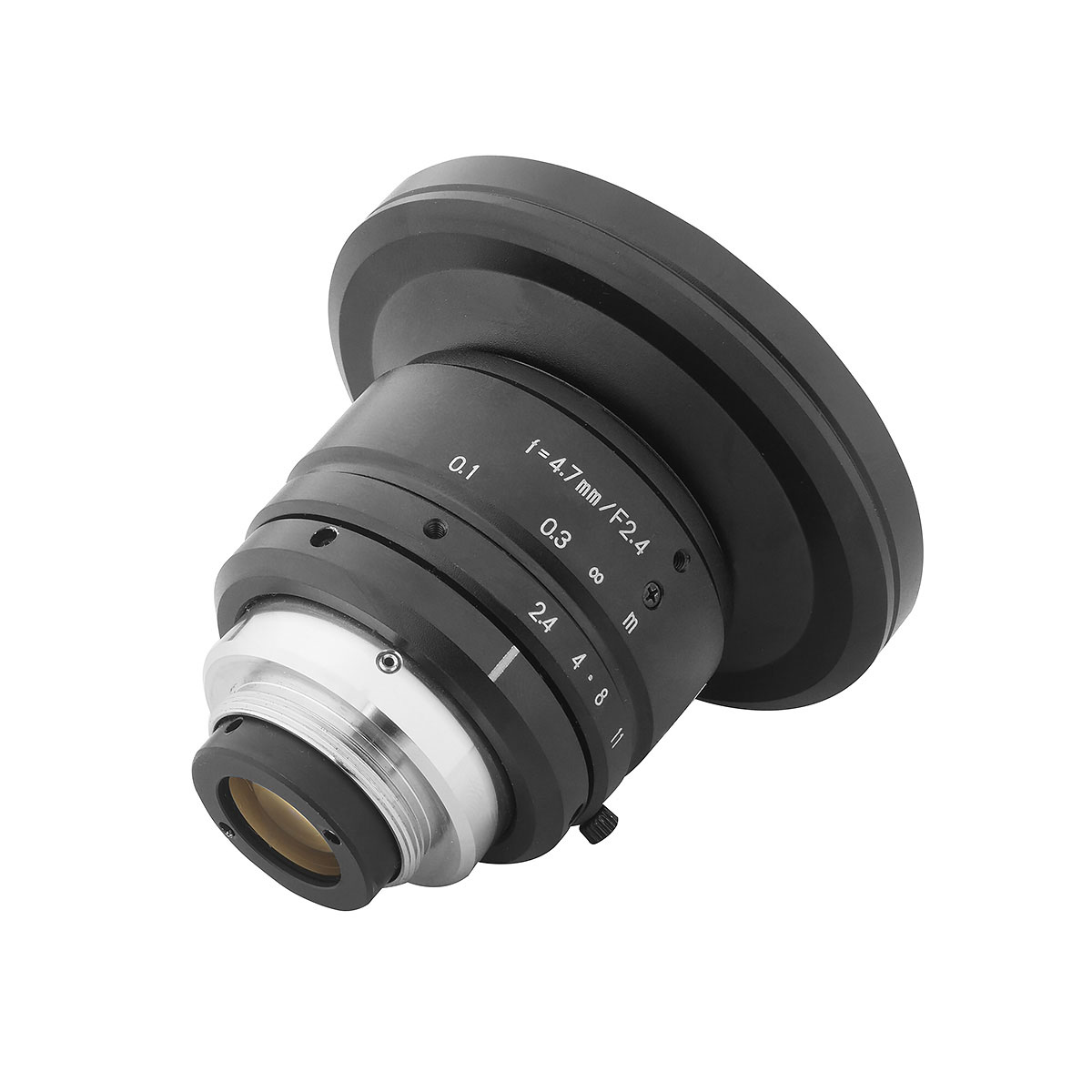

Product Information LM4HC | 1″ 4.7mm 5MP C-Mount Lens1″ 5 Megapixel C-mount industrial lens
Focal length 4.7mm
For sensors with a pixel size from 5.0μm
Suitable for Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more
Super wide-angle lens
Powerful compact lens
Designed for: 1
Compatible: 2/3,1/1.8,1/2,1/3
| Pixel size (µm) | 5 |
| Iris control | Manual |
| Iris range (f stop) | 2,4 – 11 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm) |
| Focusing range (m) | 0,1 – ∞ |
| Focus control | Manual |
| Shooting range at mod horizontal (mm) | 375,6 |
| Shooting range at mod vertical (mm) | 272,1 |
| Resolution center | 100 |
| Resolution corner | 50 |
| Megapixel | 5 |
| Distortion (tv) (%) | -0,58 |
| Back focus in air (mm) | 9 |
| Filter size (mm) | no |
| Size (mm) | Ø71 X 64,7 |
| Weight (g) | 360 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Broadcast, Machine Vision, ITS/Traffic Control |
For more information about the features, visit the Kowa Product Documentation.
