Description

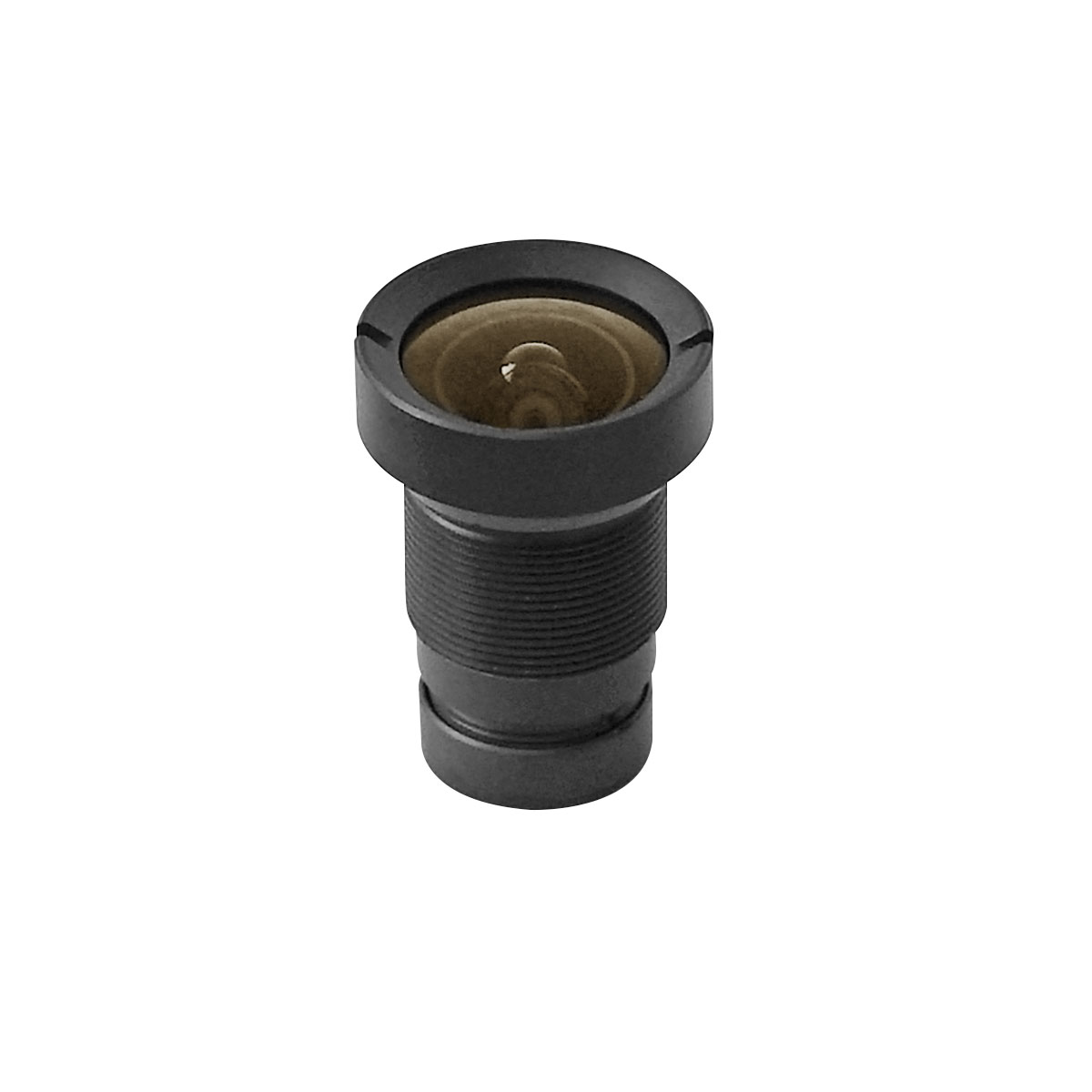

Product Information LM3QS56 | 1/2.5″ F5.6 3mm S-Mount (M12) LensKowa’s S-Mount lenses can be customized by request.
The F-stops can be modified and IR cut filters can be added. Another option is to glue the internal lens elements to make the lenses more resistant to shock and vibrations.
A complete new optical and mechanical design is possible as well.
Designed for: 1/2.5
Compatible: 1/2.8,1/3
| Pixel size (µm) | 3,2 |
| Iris range (f stop) | 5,6 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm) |
| Focusing range (m) | 0,1 – ∞ |
| Shooting range at mod horizontal (mm) | 86,7 |
| Shooting range at mod vertical (mm) | 70,6 |
| Resolution center | 160 |
| Resolution corner | 125 |
| Distortion (tv) (%) | 0,02 |
| Back focus in air (mm) | 2,6 |
| Size (mm) | Ø16×22,3 |
| Weight (g) | 6 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Machine Vision |
For more information about the features, visit the Kowa Product Documentation.
