Description

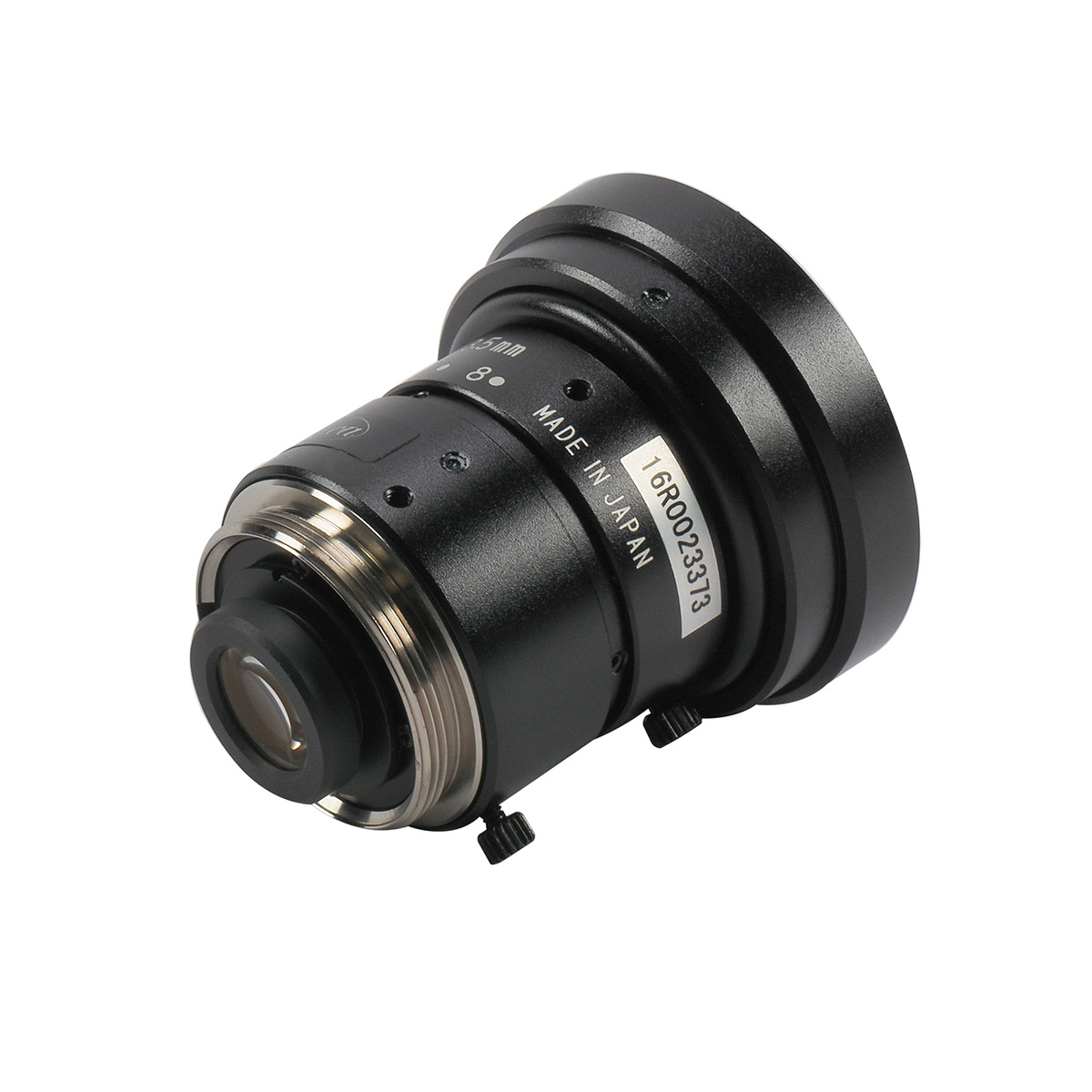

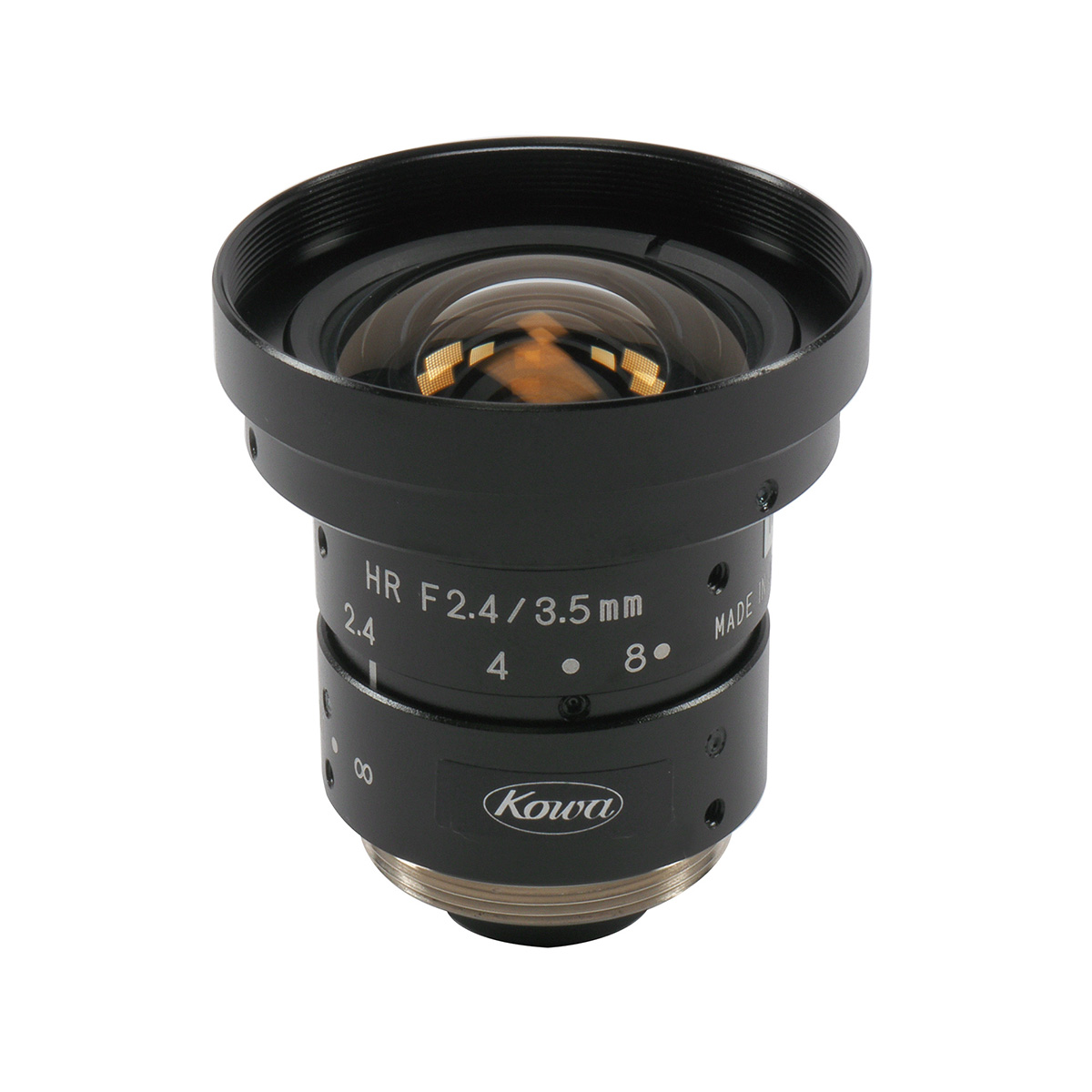

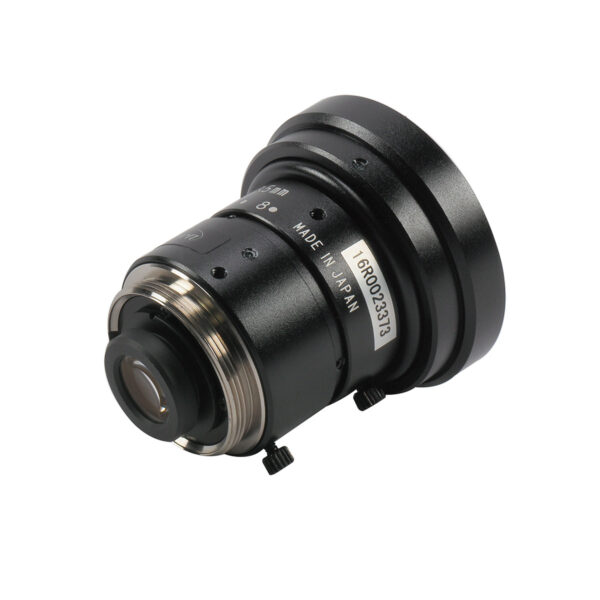

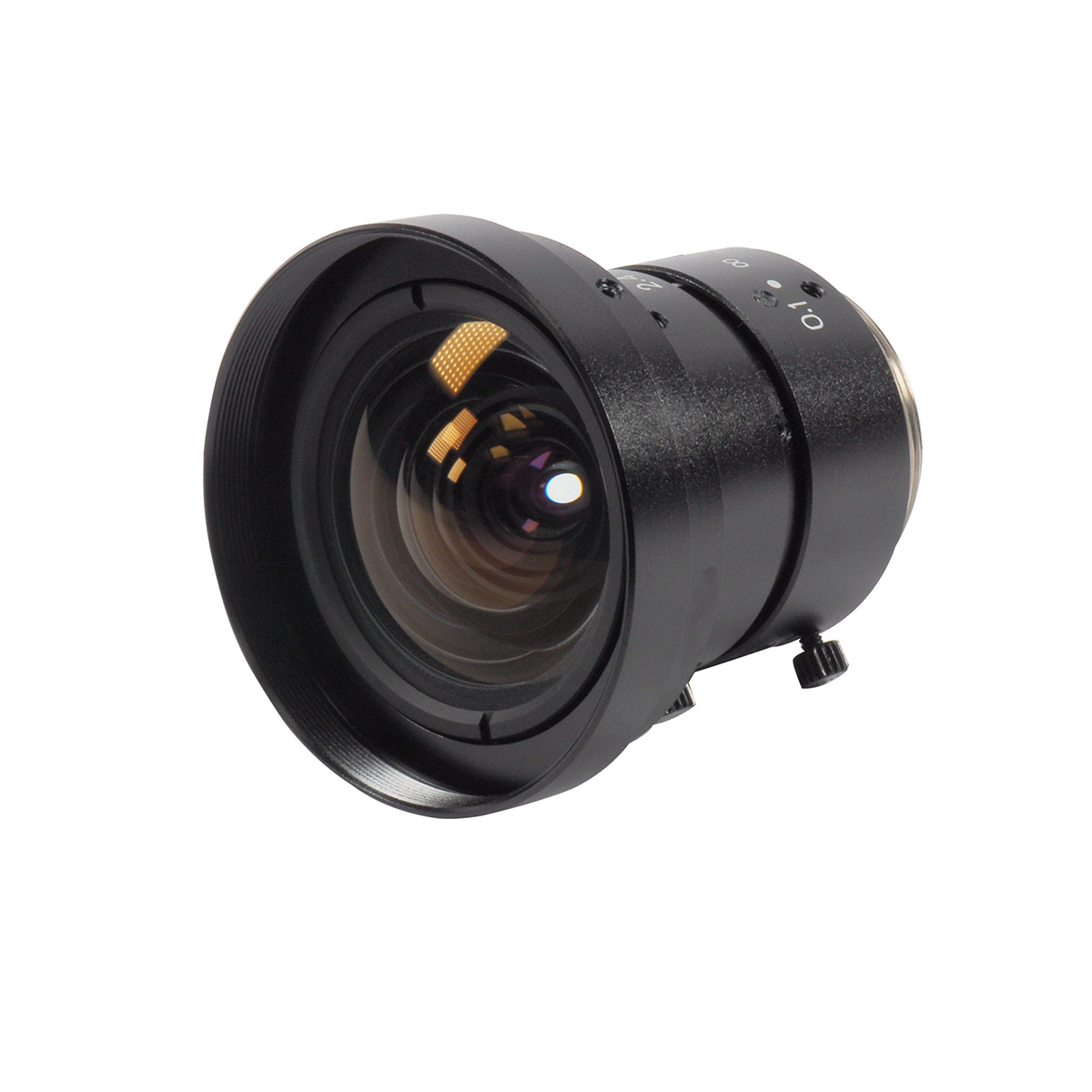

Product Information LM3NCM | 1/1.8″ 3.5mm 2MP C-Mount Lens1/1,8″ 2 Megapixel C-mount Industrial Lens
Focal length 3,5mm
For sensors with a pixel size from 4.5μm
Suitable for SONY IMX421, SONY IMX429 and SONY IMX437 sensors and many more
Super wide angle lens Powerful compact lens, very low distortion
Designed for: 1/1.8
Compatible: 1/2,1/3
| Pixel size (µm) | 4,5 |
| Iris control | Manual |
| Iris range (f stop) | 2,4 – 14 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm) |
| Focusing range (m) | 0,1 – ∞ |
| Focus control | Manual |
| Shooting range at mod horizontal (mm) | 201 |
| Shooting range at mod vertical (mm) | 151 |
| Resolution center | 120 |
| Resolution corner | 100 |
| Megapixel | 2 |
| Distortion (tv) (%) | 0,46 |
| Back focus in air (mm) | 9,7 |
| Filter size (mm) | M40,5 x P0,5 |
| Size (mm) | Ø42 X 38,2 |
| Weight (g) | 75 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Machine Vision |
For more information about the features, visit the Kowa Product Documentation.
