Description

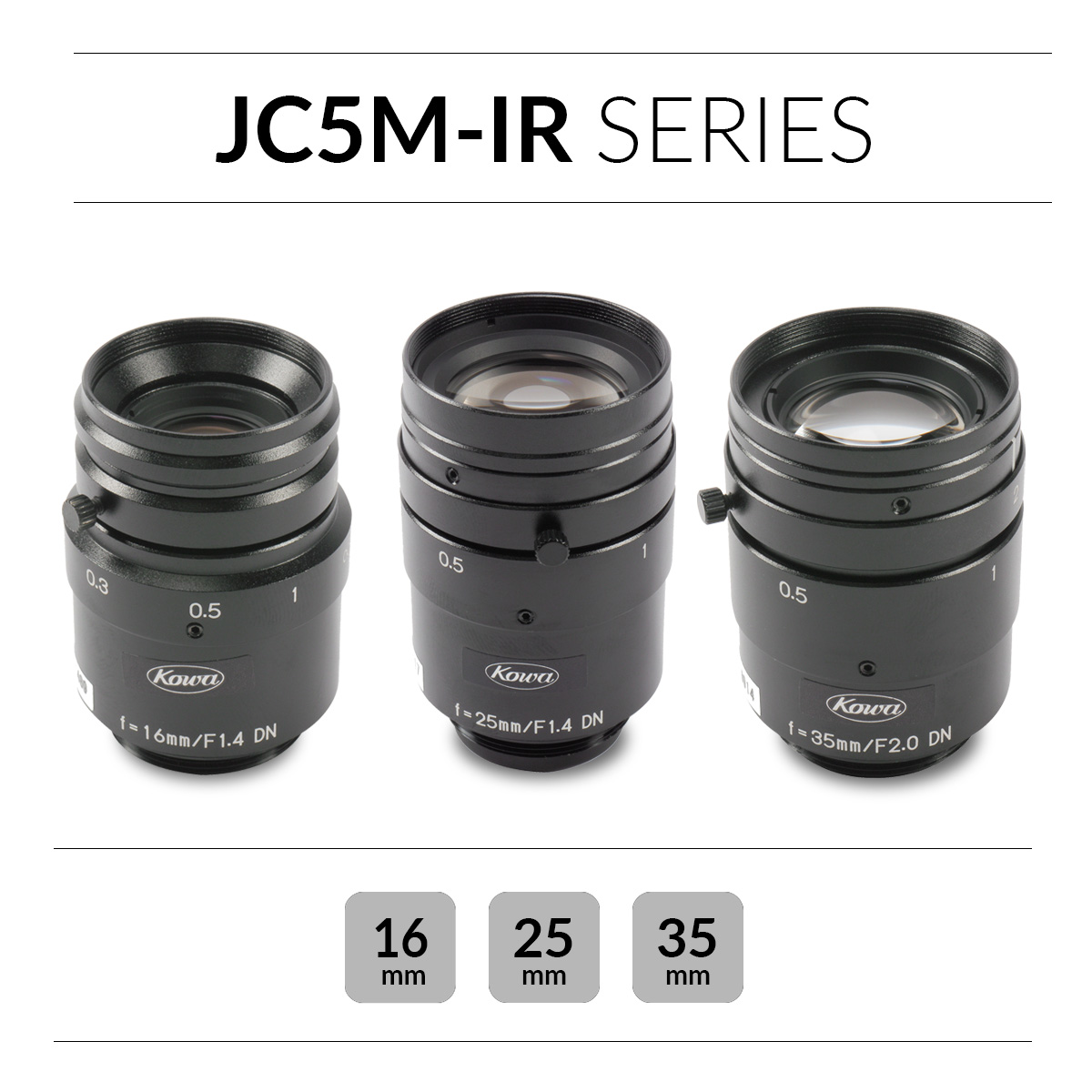

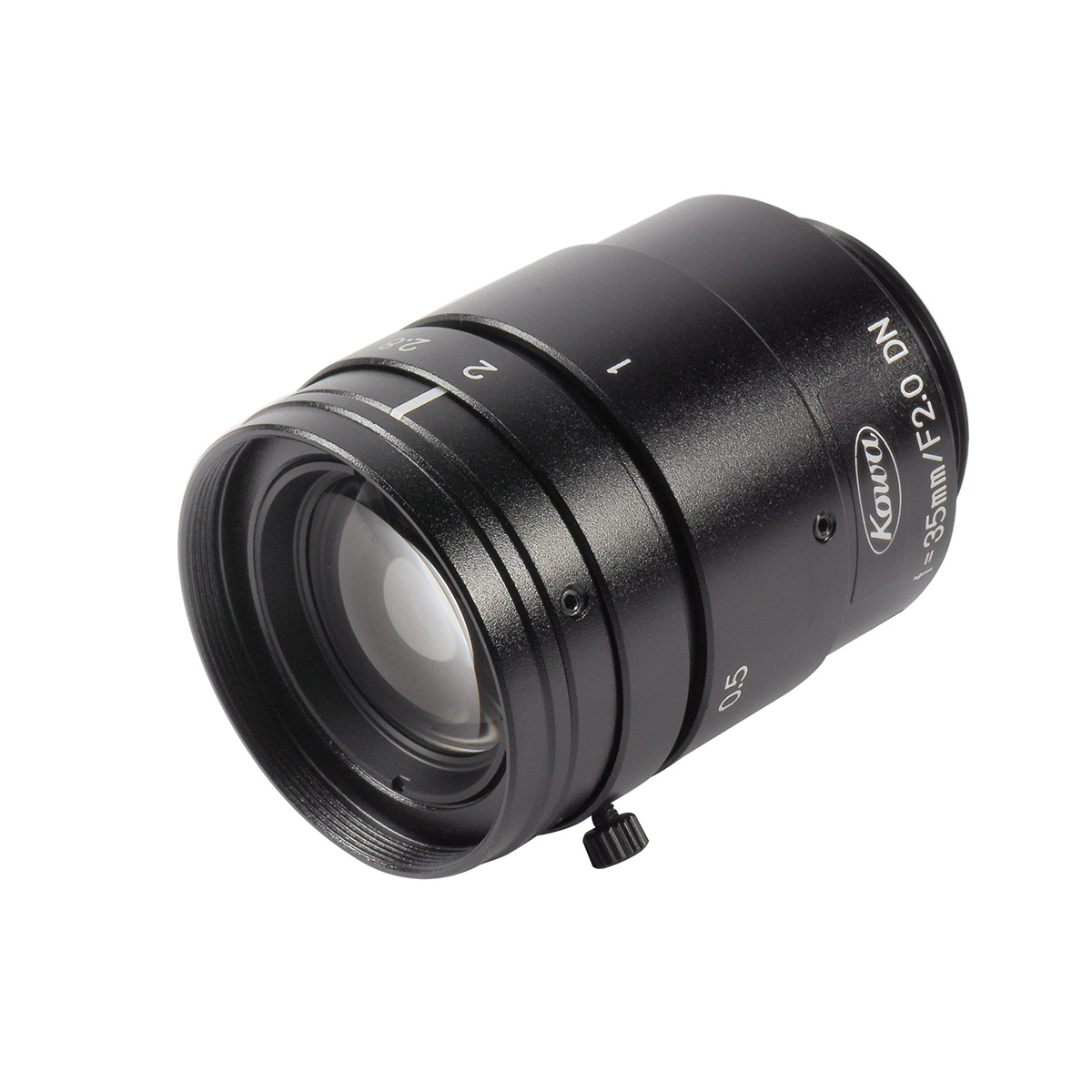

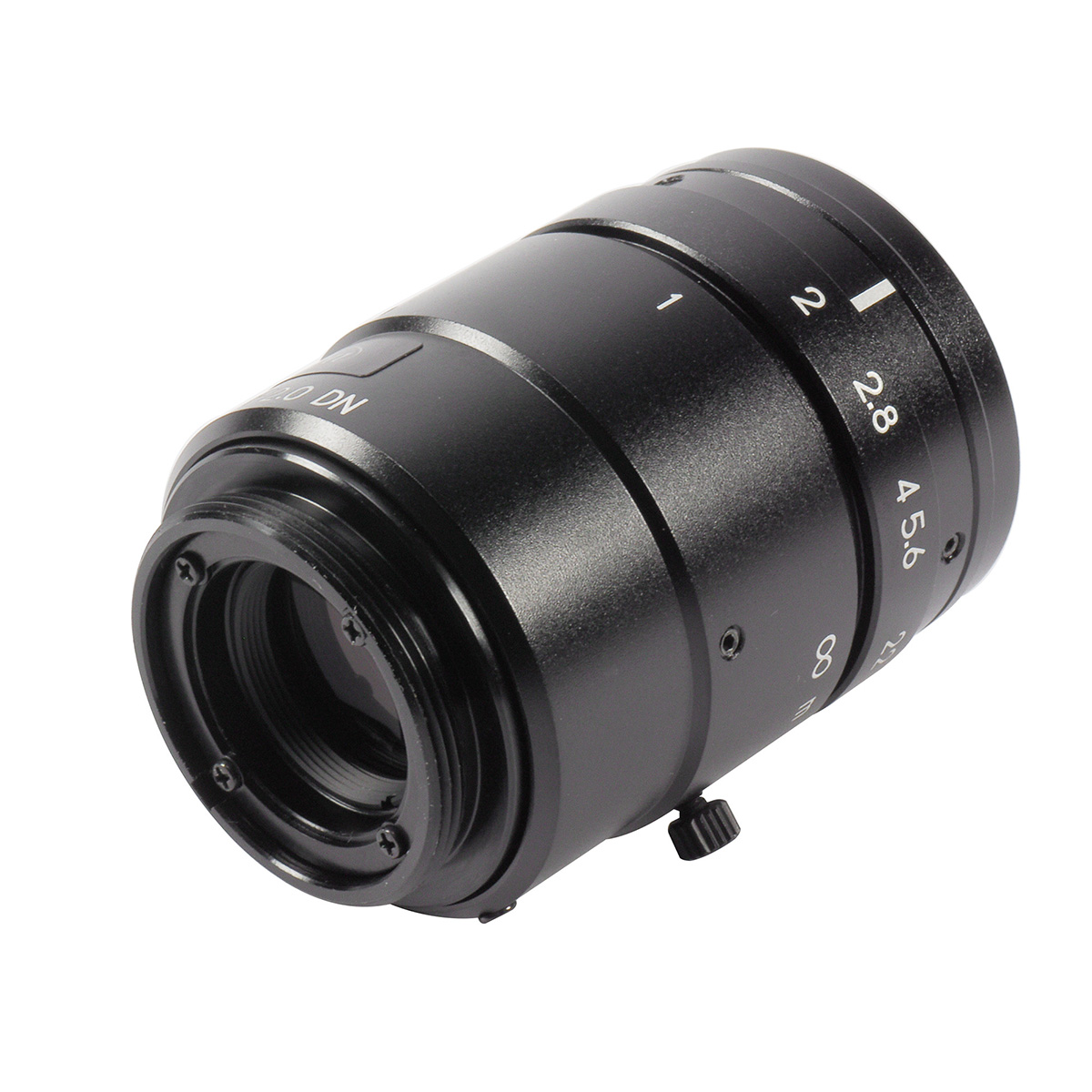

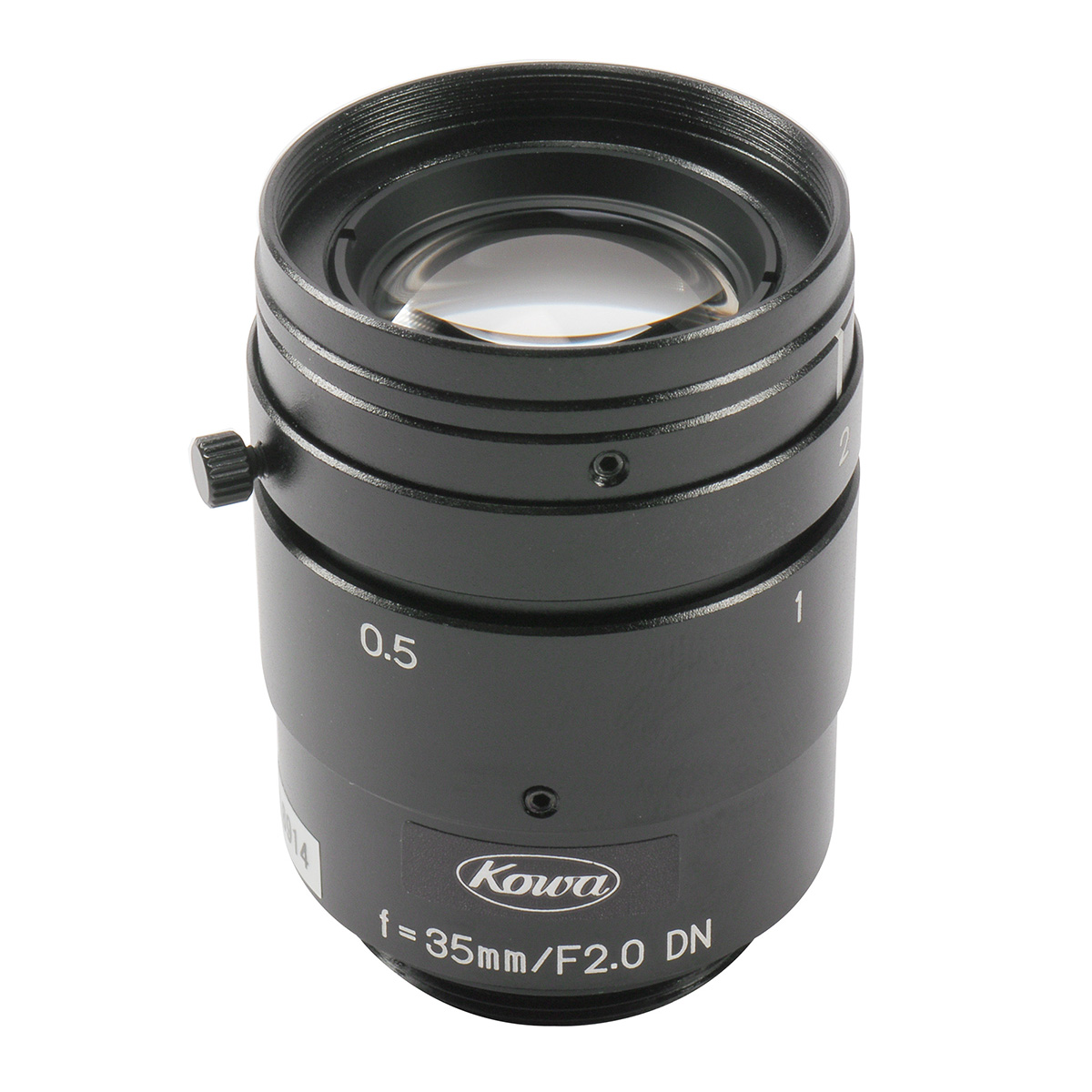

Product Information LM35JC5M-IR | 2/3″ 35mm 5MP IR correctedUp to 5 Megapixel
Metal mount
IR-corrected
Metal housing
Designed for: 2/3
Compatible: 1/1.8,1/2,1/3
Limited compatibility: 1/1.2
| Pixel size (µm) | 3,5 |
| Iris control | Manual |
| Iris range (f stop) | 2 – 22 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm), IR-corrected (Day & Night) |
| Focusing range (m) | 0,3 – ∞ |
| Focus control | Manual |
| Shooting range at mod horizontal (mm) | 75,8 |
| Shooting range at mod vertical (mm) | 56,6 |
| Resolution center | 160 |
| Resolution corner | 125 |
| Distortion (tv) (%) | -0,3 |
| Back focus in air (mm) | 19,2 |
| Filter size (mm) | M30,5 x P0,5 |
| Size (mm) | Ø34 X 43 |
| Weight (g) | 100 |
| Temperature range (℃) | -10°C – +50°C |
| Application | ITS/Verkehrsüberwachung |
For more information about the features, visit the Kowa Product Documentation.
