Description

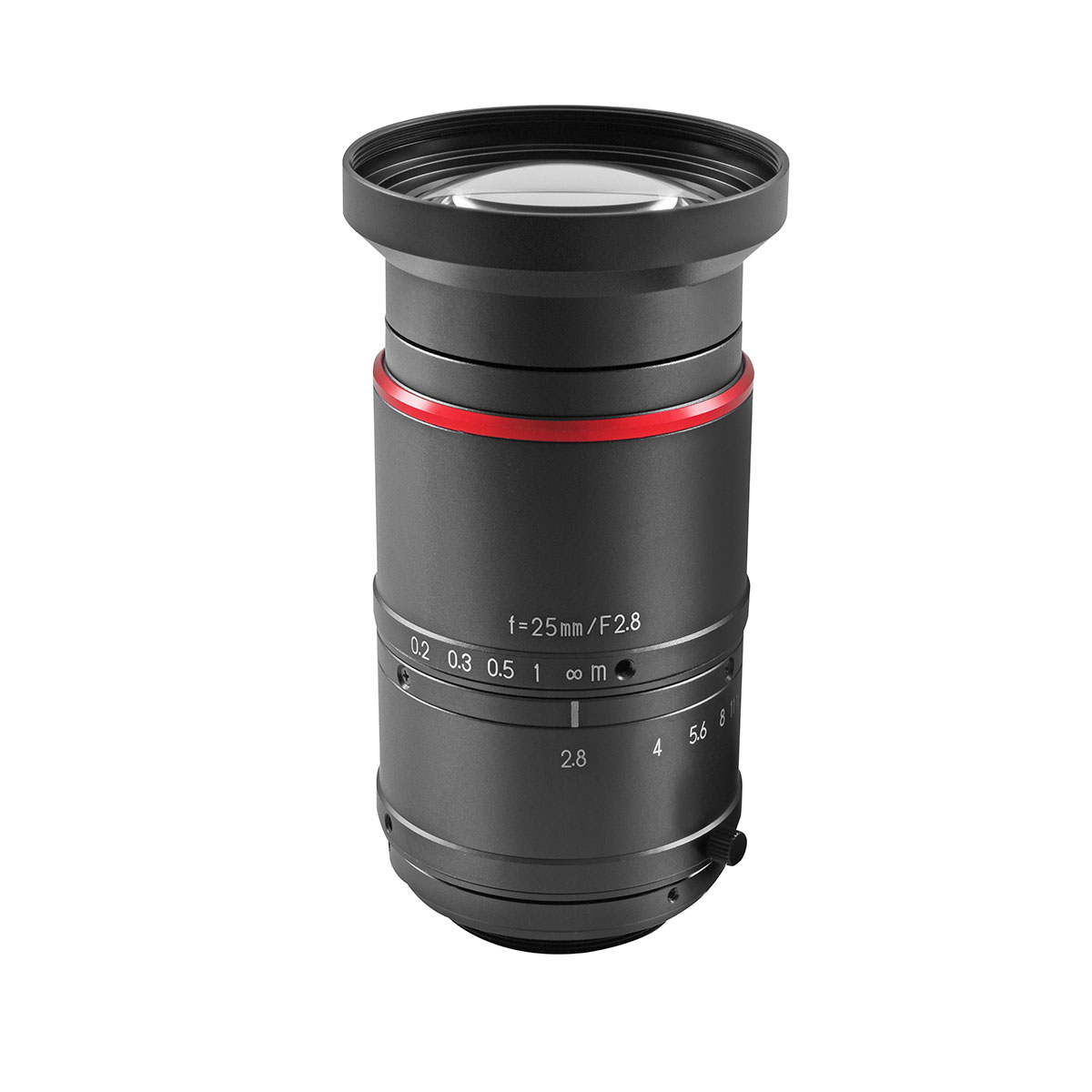

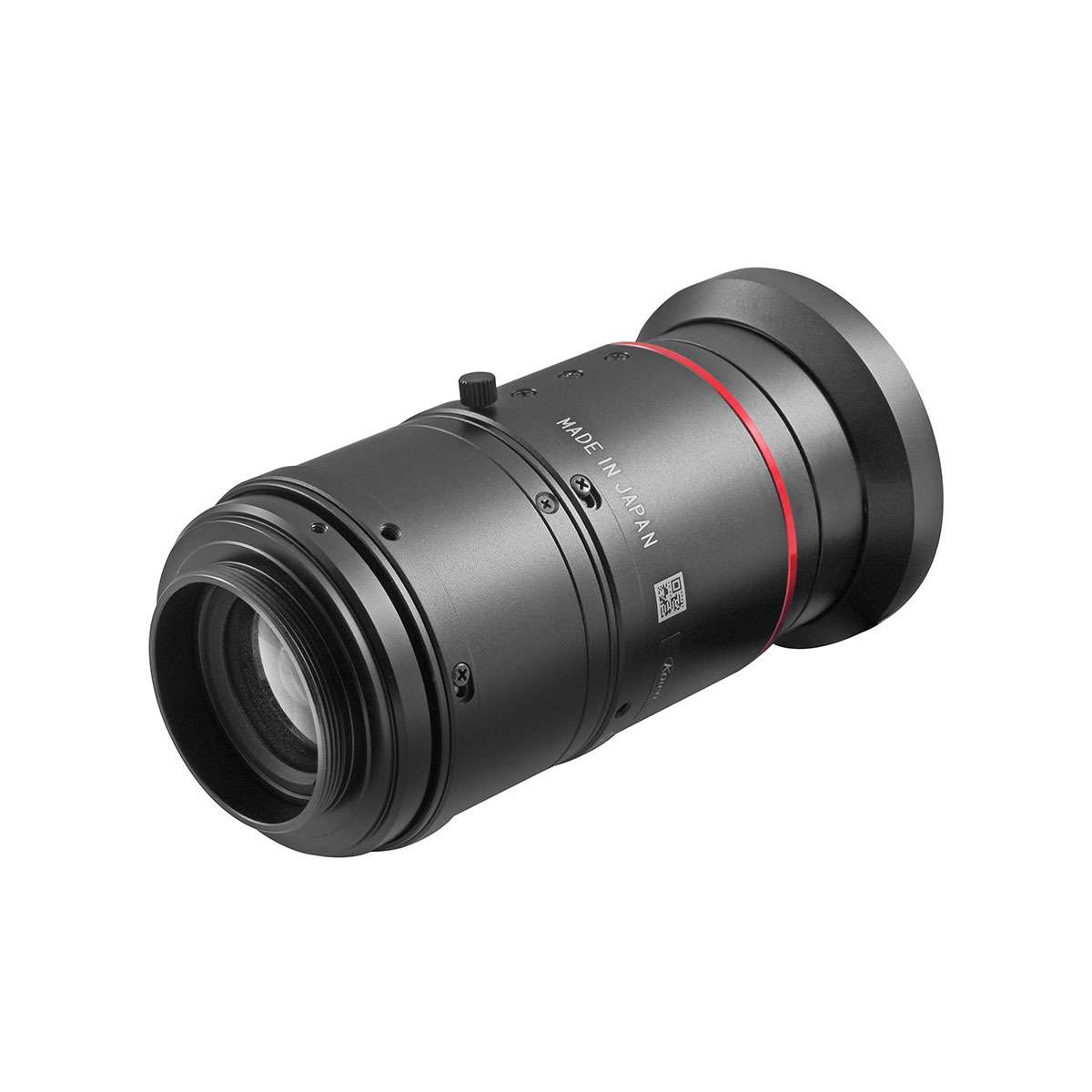

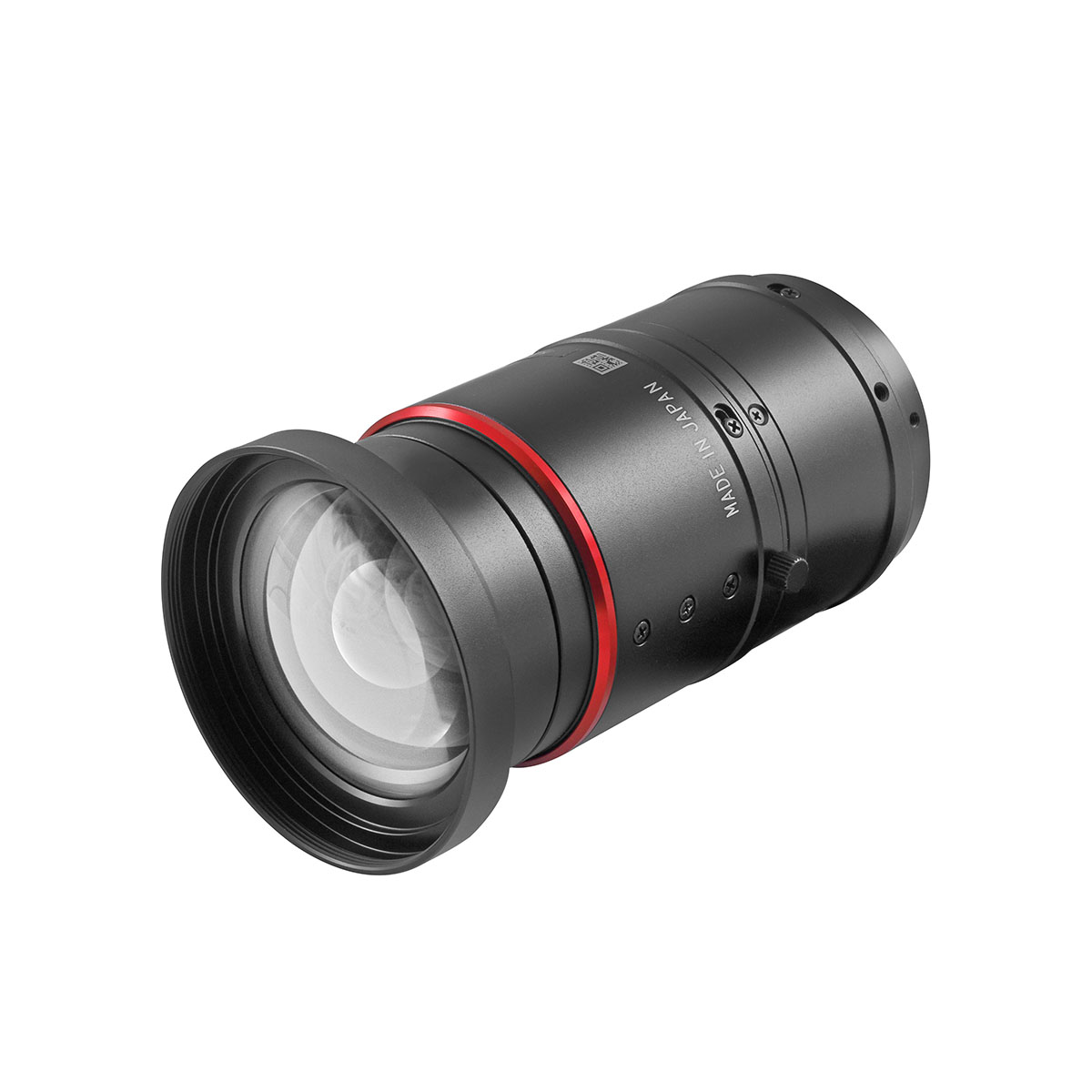

Product Information LM25VM35 | 2″ ø32mm 50MPø32mm image circle M35 mount/ TFL mount industrial lens
Focal length 25mm
High quality lenses with a resolving power of 3.1μm
Suitable for 8K resolution and with up to 50 megapixels for use with high performance cameras
High-magnification design with a focusing range of up to 0.1 m
Designed for: 2
Compatible: 4/3,1.1,1
| Pixel size (µm) | 3,1 |
| Iris control | Manual |
| Iris range (f stop) | 2,8-16 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm) |
| Focusing range (m) | 0,1 – ∞ |
| Focus control | Manual |
| Shooting range at mod horizontal (mm) | 125 |
| Shooting range at mod vertical (mm) | 93 |
| Resolution center | 160 |
| Resolution corner | 100 |
| Megapixel | 50 |
| Distortion (tv) (%) | 0,59 |
| Back focus in air (mm) | 20,3 |
| Filter size (mm) | M55 x 0,75 |
| Size (mm) | Ø57 x 102,6 |
| Weight (g) | 400 |
| Temperature range (℃) | -10°C – +50°C |
For more information about the features, visit the Kowa Product Documentation.
