Description

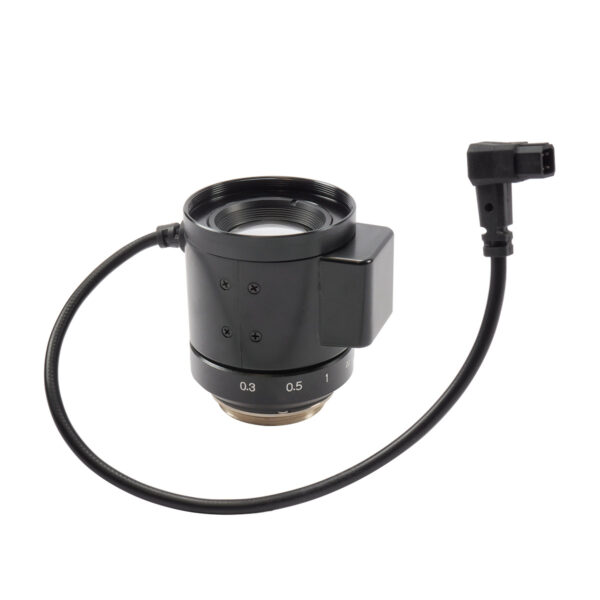

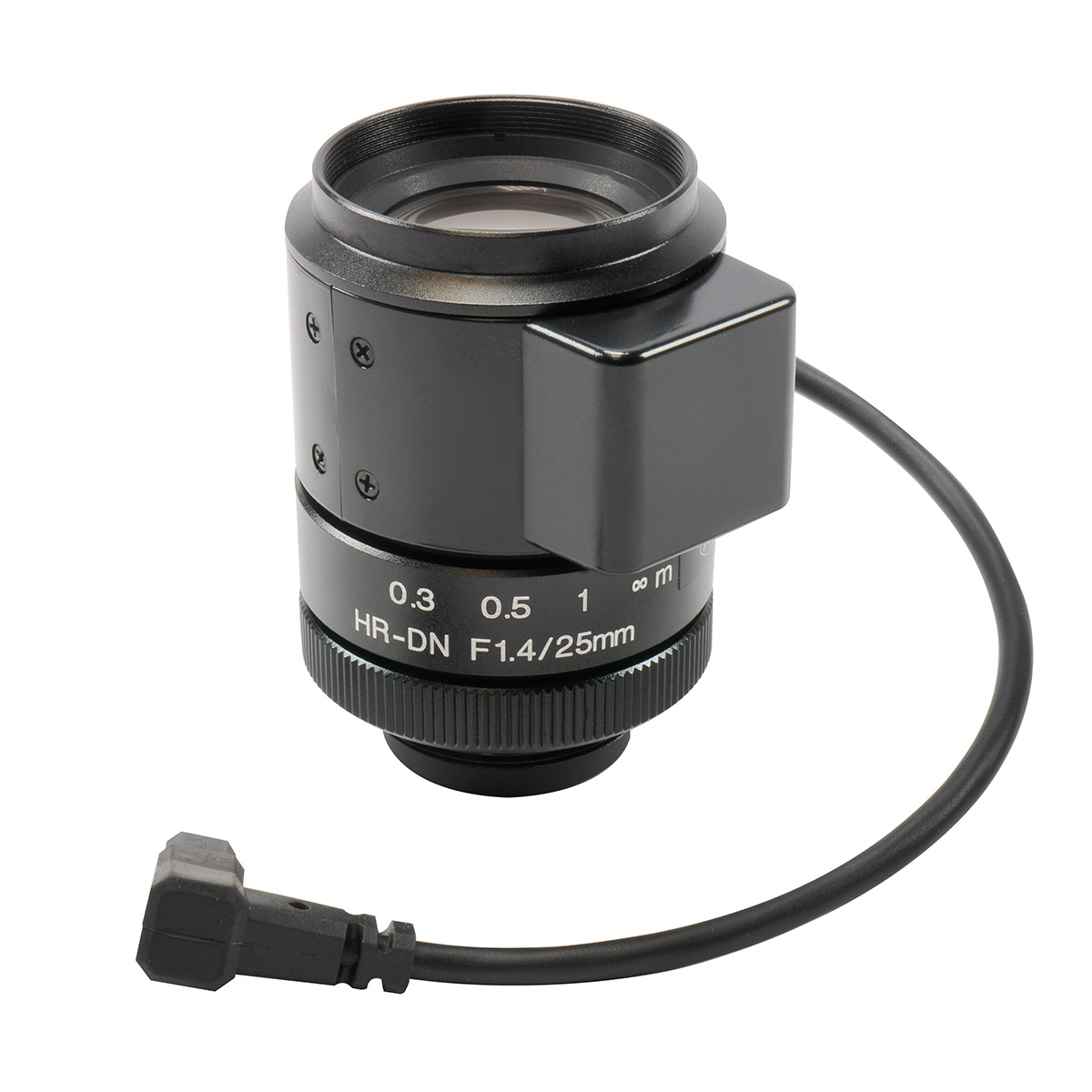

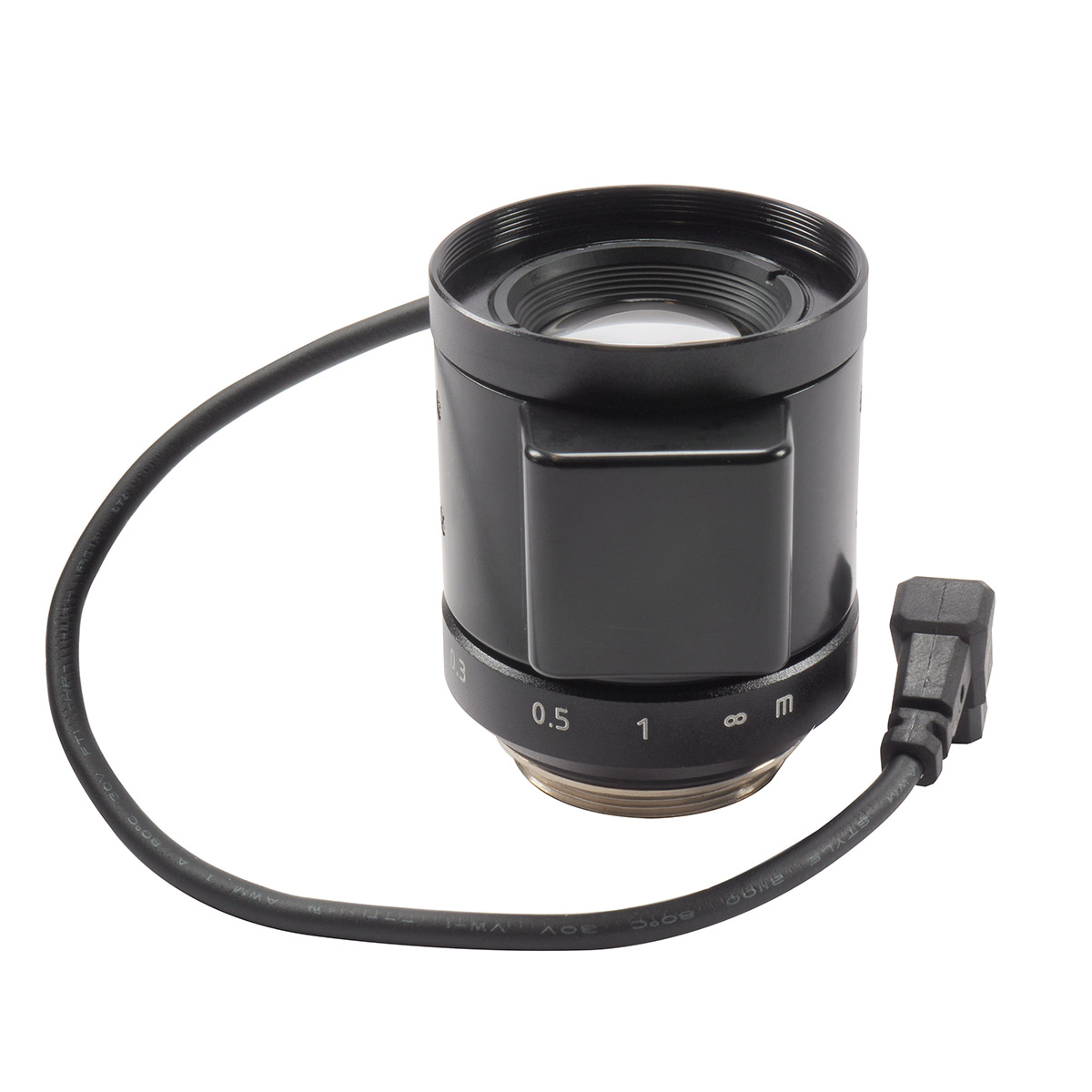

Product Information LM25JC5MM-IR | 2/3″ 25mm 5MP C-Mount LensUp to 5 Megapixel
P-Iris lens
Metal mount
IR-corrected
Metal housing
| Pixel size (µm) | 3,5 |
| Iris control | P-Iris |
| Iris range (f stop) | 1,4 – 38 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm), IR-corrected (Day & Night) |
| Focusing range (m) | 0,5 – ∞ |
| Focus control | Manual |
| Resolution center | 160 |
| Resolution corner | 125 |
| Distortion (tv) (%) | -0,3 |
| Back focus in air (mm) | 12 |
| Filter size (mm) | M30,5 x P0,5 |
| Size (mm) | Ø50 X 51,4 |
| Weight (g) | 100 |
| Temperature range (℃) | -10°C – +50°C |
| Application | ITS/Verkehrsüberwachung |
For more information about the features, visit the Kowa Product Documentation.
