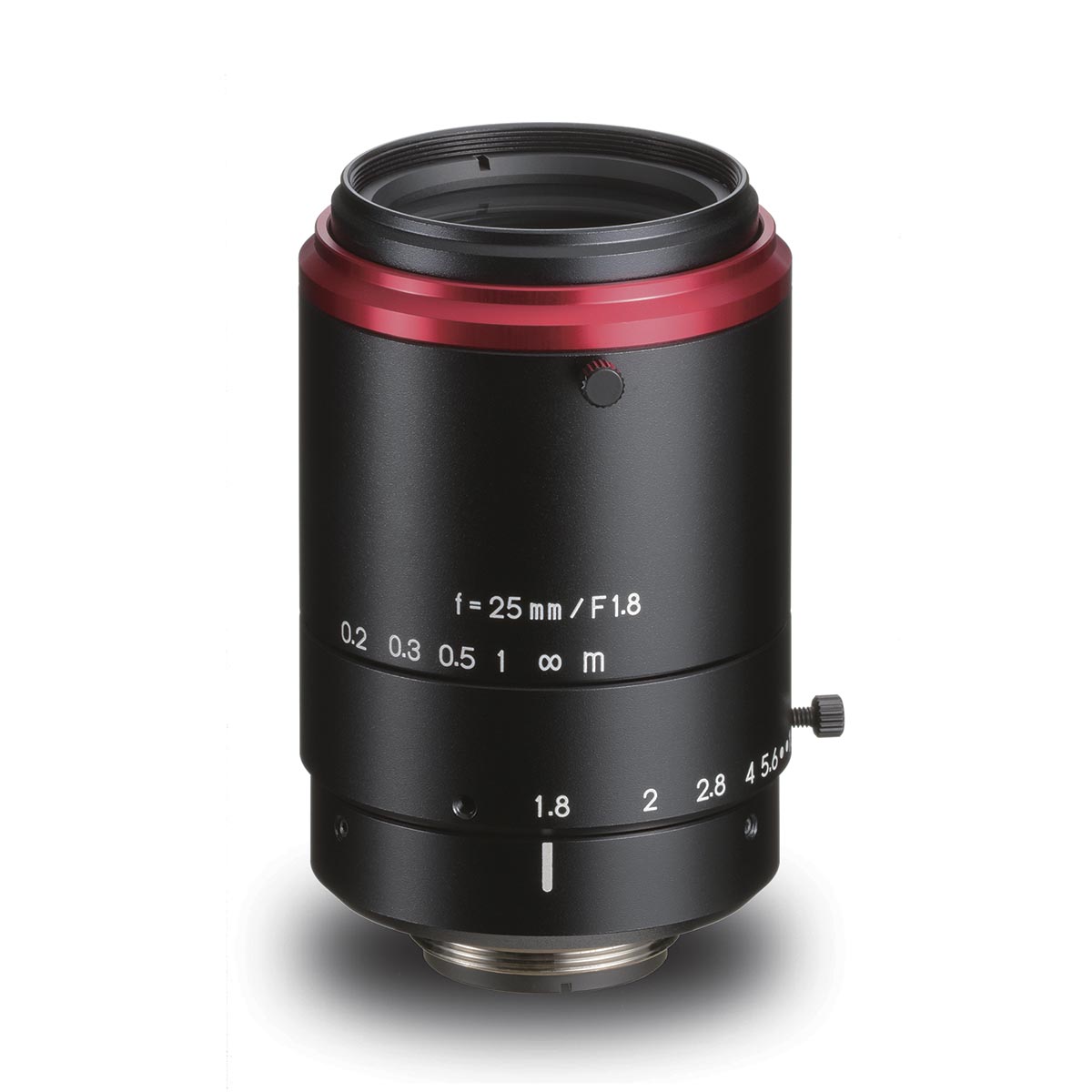

Product Information LM25FC24M | 1.1″ 25mm 24MP C-mount Lens1.1″ 24 Megapixel C-mount Industrial Lens
Focal length 25mm
For sensors with a pixel size from 2.5μm
Suitable for IMX183, IMX530/540, IMX531/541, IMX253/304 sensors and many more
Floating mechanism to eliminate optical aberrations
Broadband Coating: Transmission from VIS to NIR
Designed for: 1.1
Compatible: 1,2/3,1/1.8,1/2,1/3
| Pixel size (µm) | 2,5 |
| Iris control | Manual |
| Iris range (f stop) | 1,8 – 16 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm), Broad Band Coating (380nm – 1000nm) |
| Focusing range (m) | 0,1 – ∞ |
| Focus control | Manual |
| Shooting range at mod horizontal (mm) | 64 |
| Shooting range at mod vertical (mm) | 48 |
| Resolution center | 200 |
| Resolution corner | 100 |
| Megapixel | 24 |
| Distortion (tv) (%) | -0,3 |
| Back focus in air (mm) | 13,3 |
| Filter size (mm) | M35,5 x P0,5 |
| Size (mm) | Ø45 X 69,4 |
| Weight (g) | 220 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Broadcast, Machine Vision, ITS/Verkehrsüberwachung |
For more information about the features, visit the Kowa Product Documentation.
