Description

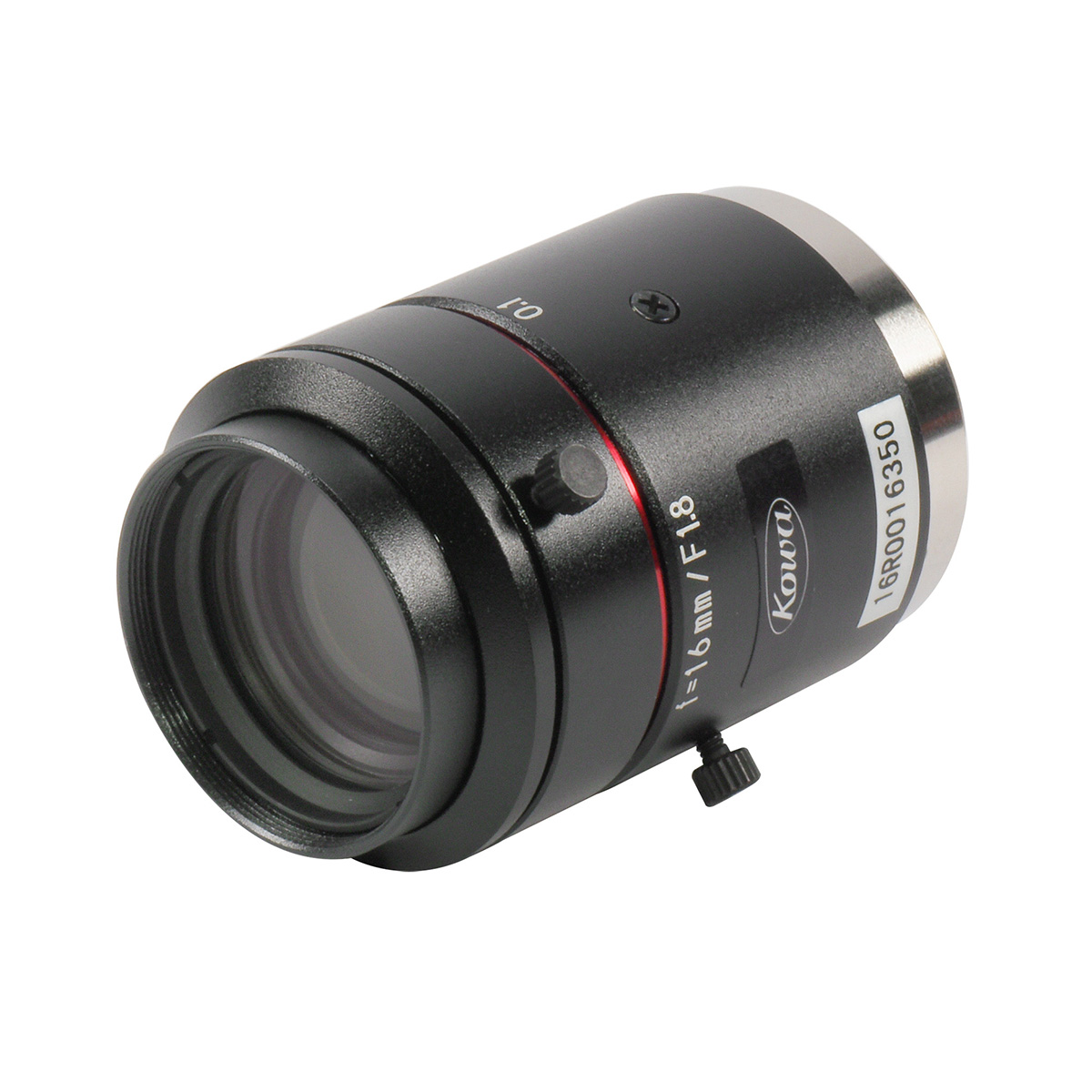

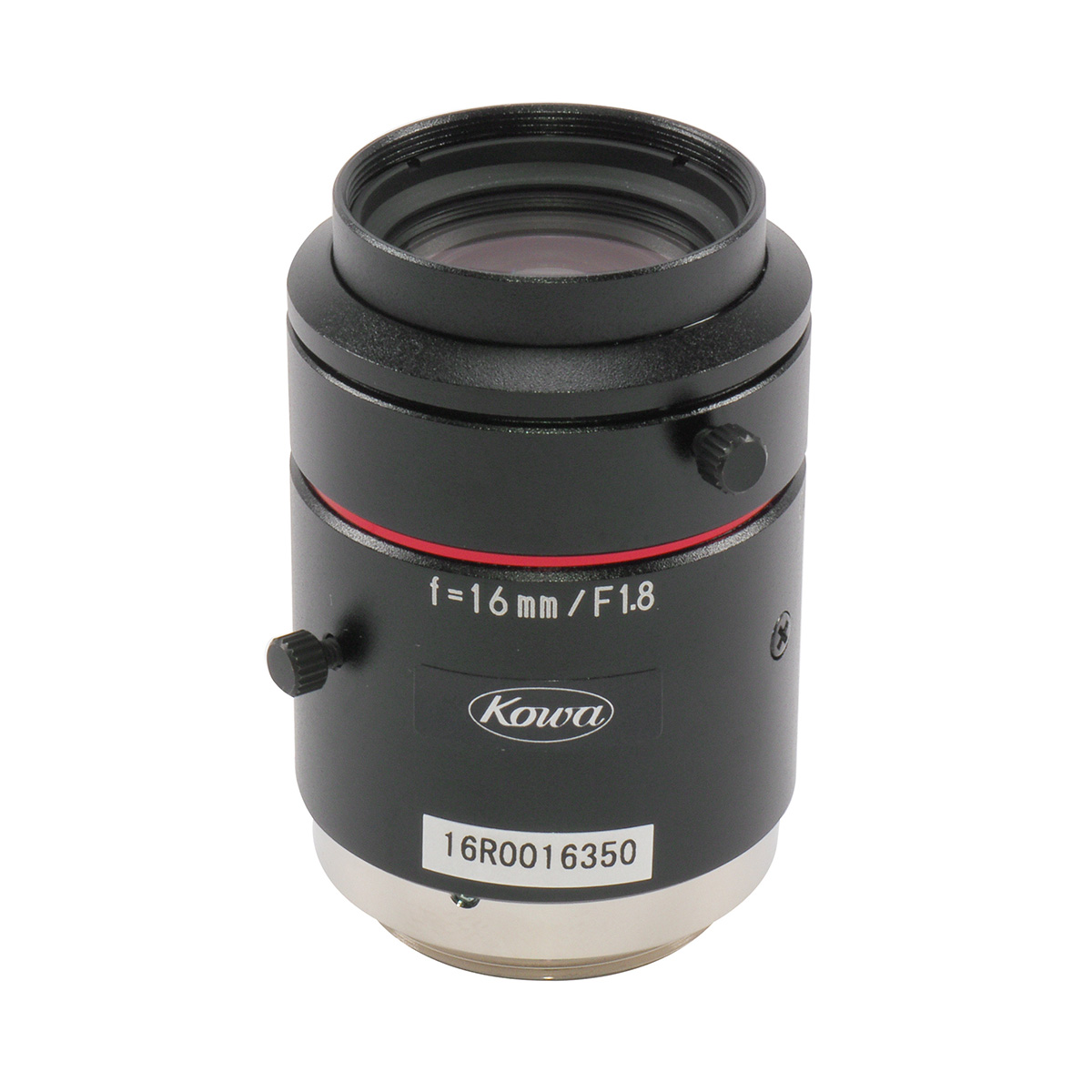

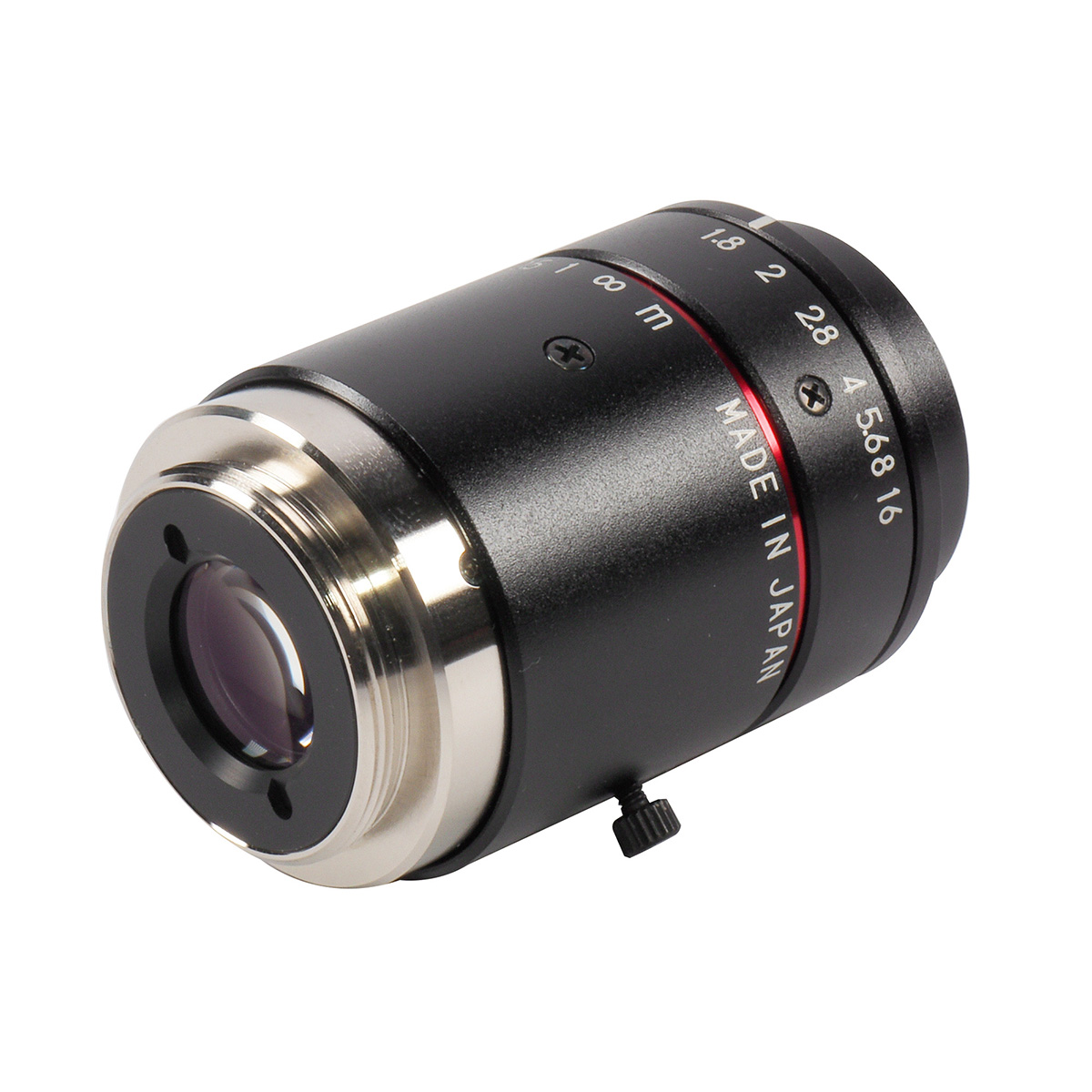

Product Information LM16JC10M | 2/3″ 16mm 10MP C-Mount Lens2/3″ 10 Megapixel C-mount Industrial Lens
Focal length 16mm
For sensors with a pixel size from 2.5μm
Suitable for Sony IMX250, Sony IMX264 and Aptina MT9D131 sensors and many more
Floating mechanism to eliminate optical aberrations
Broadband Coating: Transmission from VIS to NIR
Designed for: 2/3
Compatible: 1/1.8,1/2,1/3
Limited compatibility: 1/1.2
| Pixel size (µm) | 2,5 |
| Iris control | Manual |
| Iris range (f stop) | 1,8 – 16 |
| Lens type | Fixed Focal Lens |
| Wavelength range | Broad Band Coating (380nm – 1000nm), VIS (380nm – 780nm) |
| Focusing range (m) | 0,1 – ∞ |
| Focus control | Manual |
| Shooting range at mod horizontal (mm) | 61,1 |
| Shooting range at mod vertical (mm) | 45,7 |
| Resolution center | 200 |
| Resolution corner | 160 |
| Distortion (tv) (%) | -0,2 |
| Back focus in air (mm) | 14,6 |
| Filter size (mm) | M25,5 x P0,5 |
| Size (mm) | Ø27 X 47,5 |
| Weight (g) | 90 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Machine Vision, Broadcast |
For more information about the features, visit the Kowa Product Documentation.
