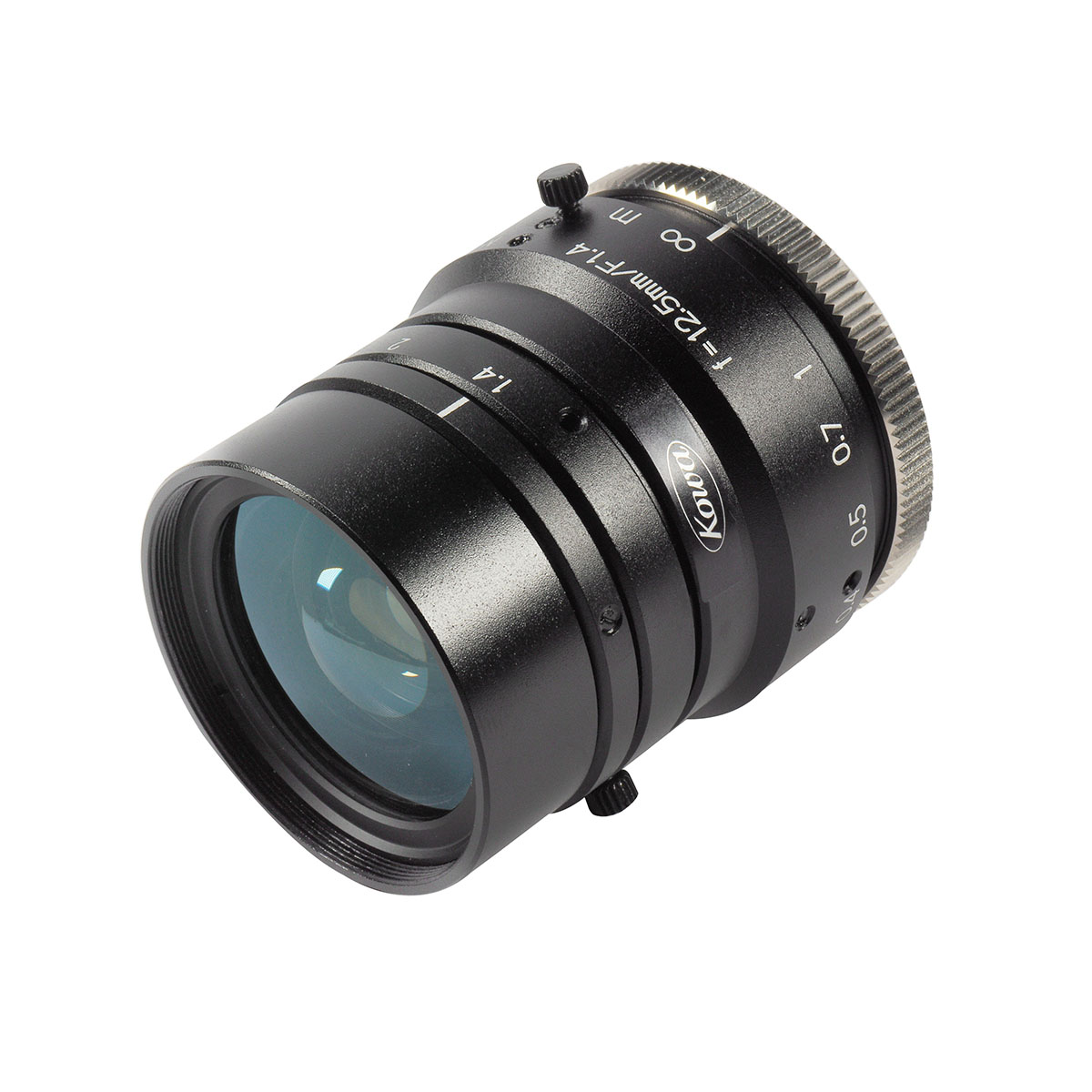

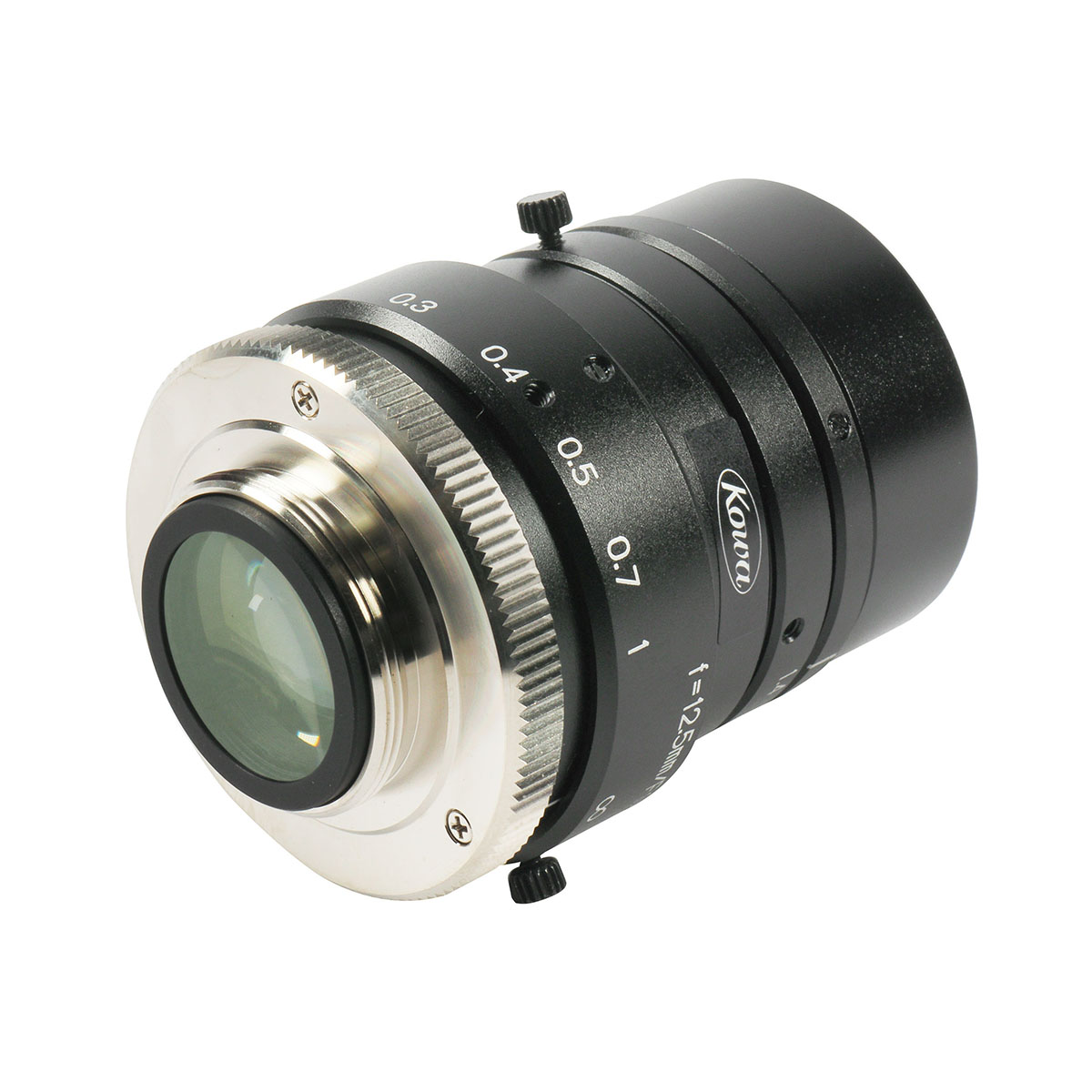

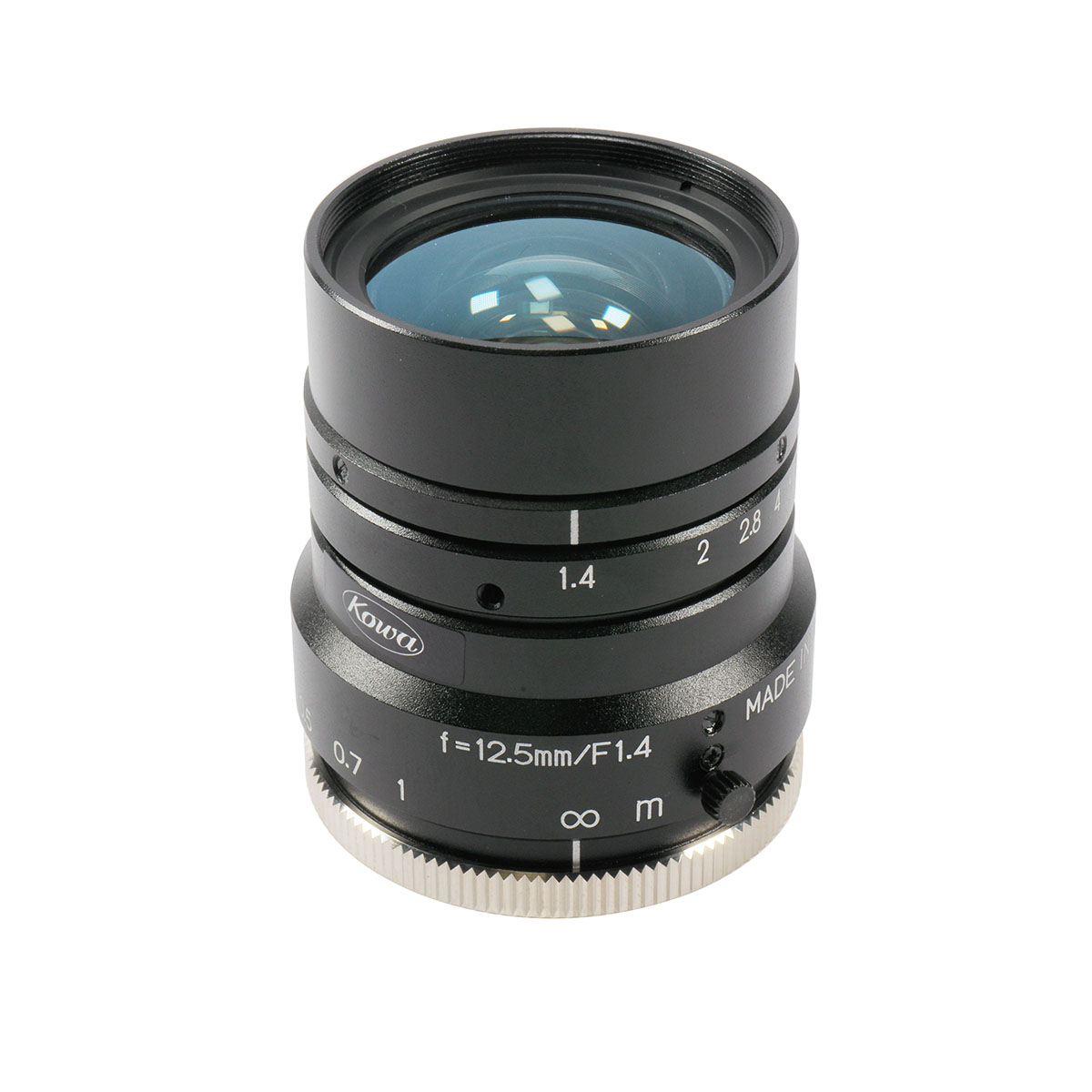

Product Information LM12HC-SW | 1″ 12mm SWIR C-Mount Lens1″ Megapixel C-mount Industrial Lens
Focal length 12mm
Optimized for SWIR: High transmission from 800nm up to 1900nm
For applications such as solar cell inspection, waste sorting and biological research
Designed for: 1
Compatible: 2/3,1/1.8,1/2,1/3
Limited compatibility: 1.1
| Iris control | Manual |
| Iris range (f stop) | 1,4 – 16 |
| Lens type | Fixed Focal Lens |
| Wavelength range | SWIR (1000nm – 2000nm) |
| Focusing range (m) | 0,9 – ∞ |
| Focus control | Manual |
| Resolution center | 120 |
| Resolution corner | 80 |
| Distortion (tv) (%) | -1,5 |
| Back focus in air (mm) | 12,6 |
| Filter size (mm) | M35 x P0,5 |
| Size (mm) | Ø43 X 52 |
| Weight (g) | 150 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Machine Vision |
For more information about the features, visit the Kowa Product Documentation.
