Description

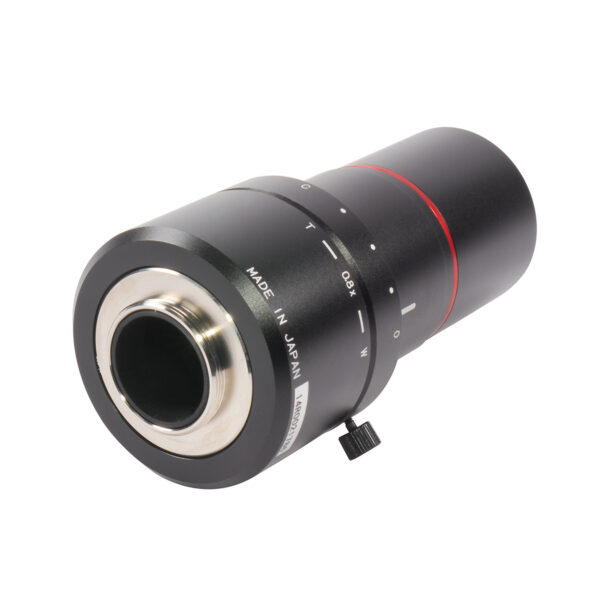

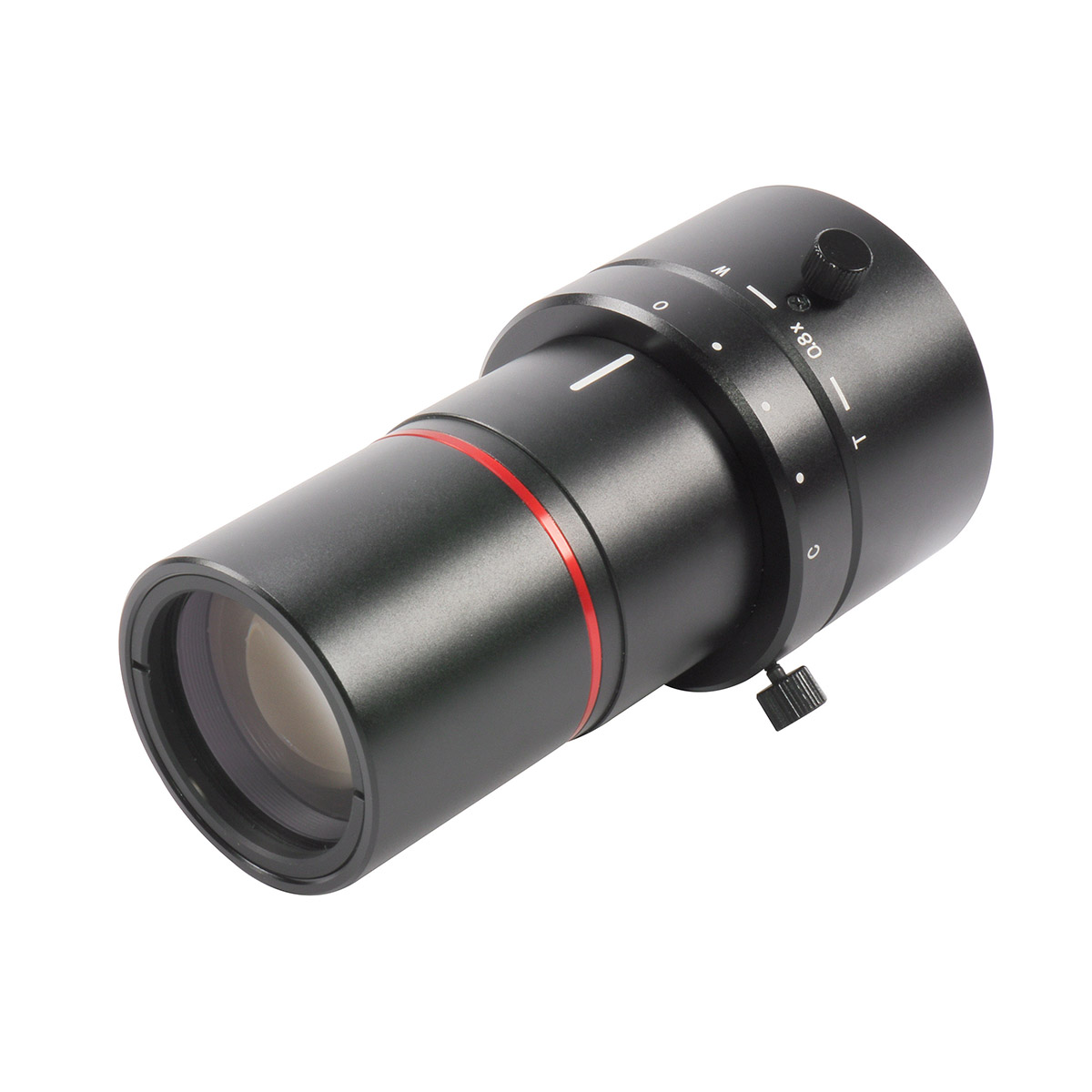

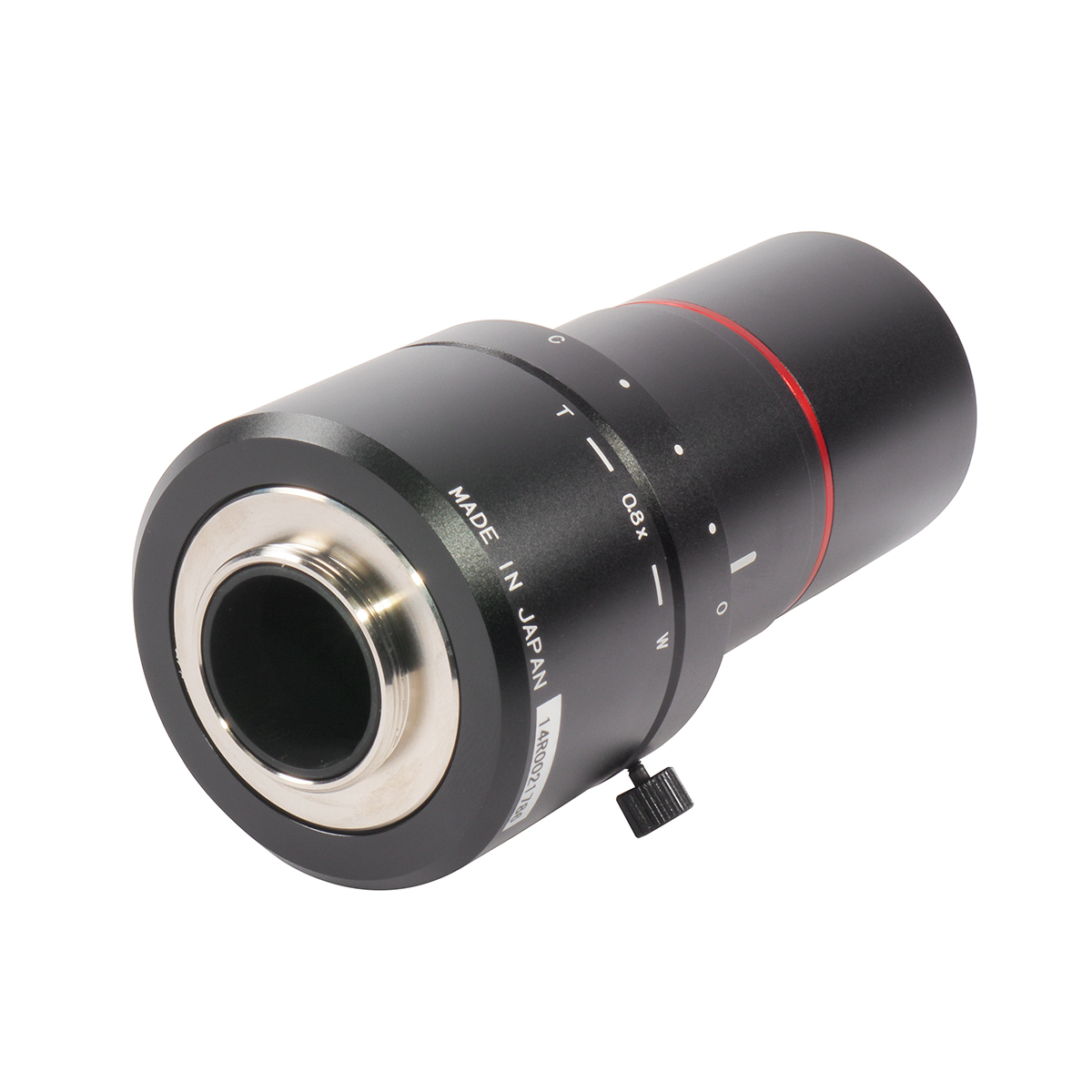

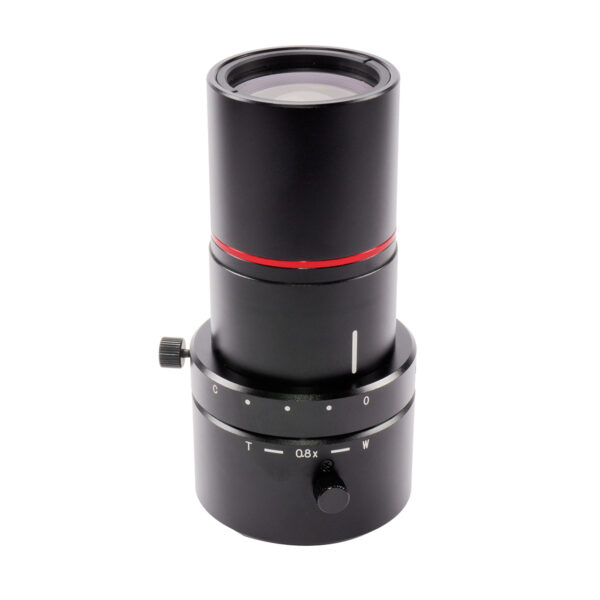

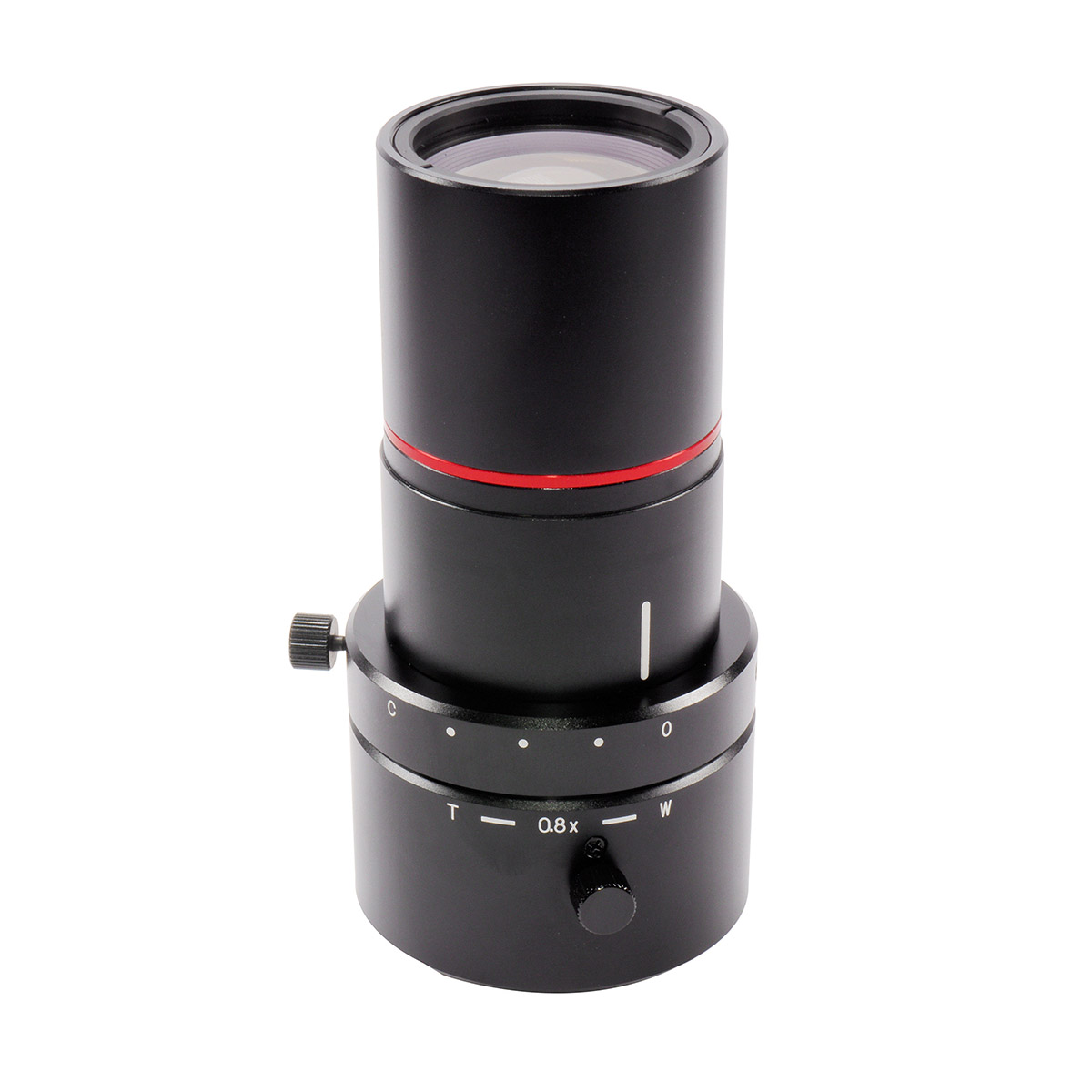

Product Information LM1123TC | 0.69~0.88x Telecentric Lens2/3″ 5 Megapixel C-mount industrial lens
High contrast throughout the image
Low TV-distortion
0.69-0.88x magnification
Designed for: 2/3
Compatible: 1/1.8,1/2,1/3
| Pixel size (µm) | 4,5 |
| Iris control | Manual |
| Lens type | Telecentric |
| Wavelength range | VIS (380nm – 780nm) |
| Focusing range (m) | 0,111 |
| Focus control | Manual |
| Resolution center | 120 |
| Resolution corner | 120 |
| Distortion (tv) (%) | -0.009 |
| Back focus in air (mm) | 25.3-34 |
| Size (mm) | Ø50 X 121,5 |
| Weight (g) | 290 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Machine Vision |
For more information about the features, visit the Kowa Product Documentation.
