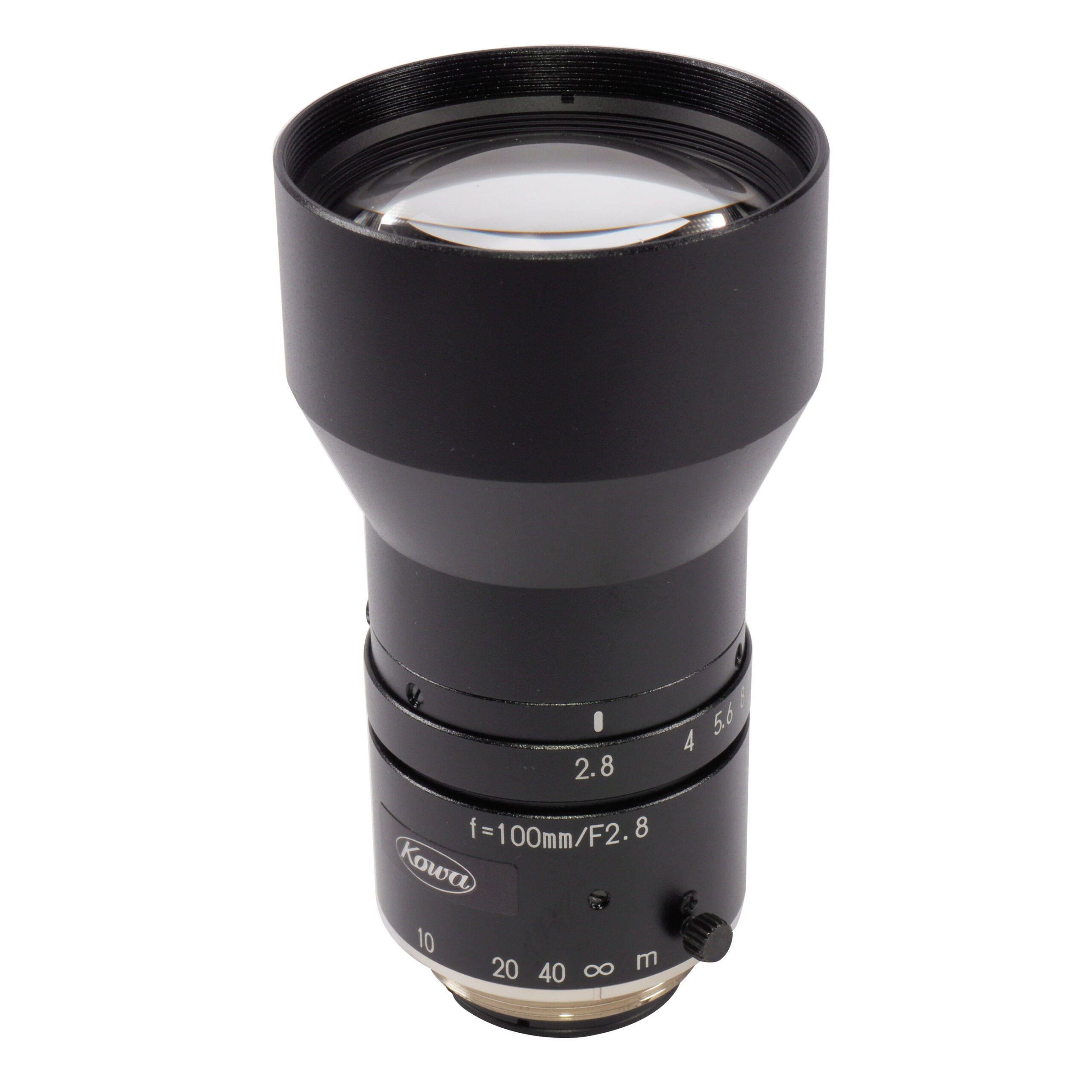

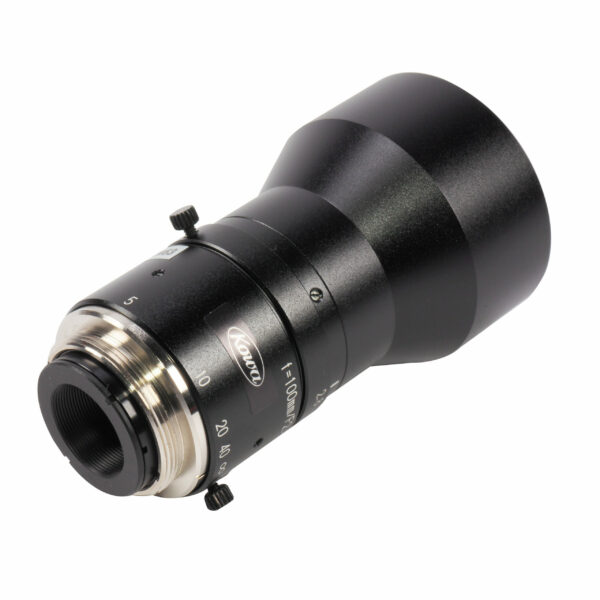

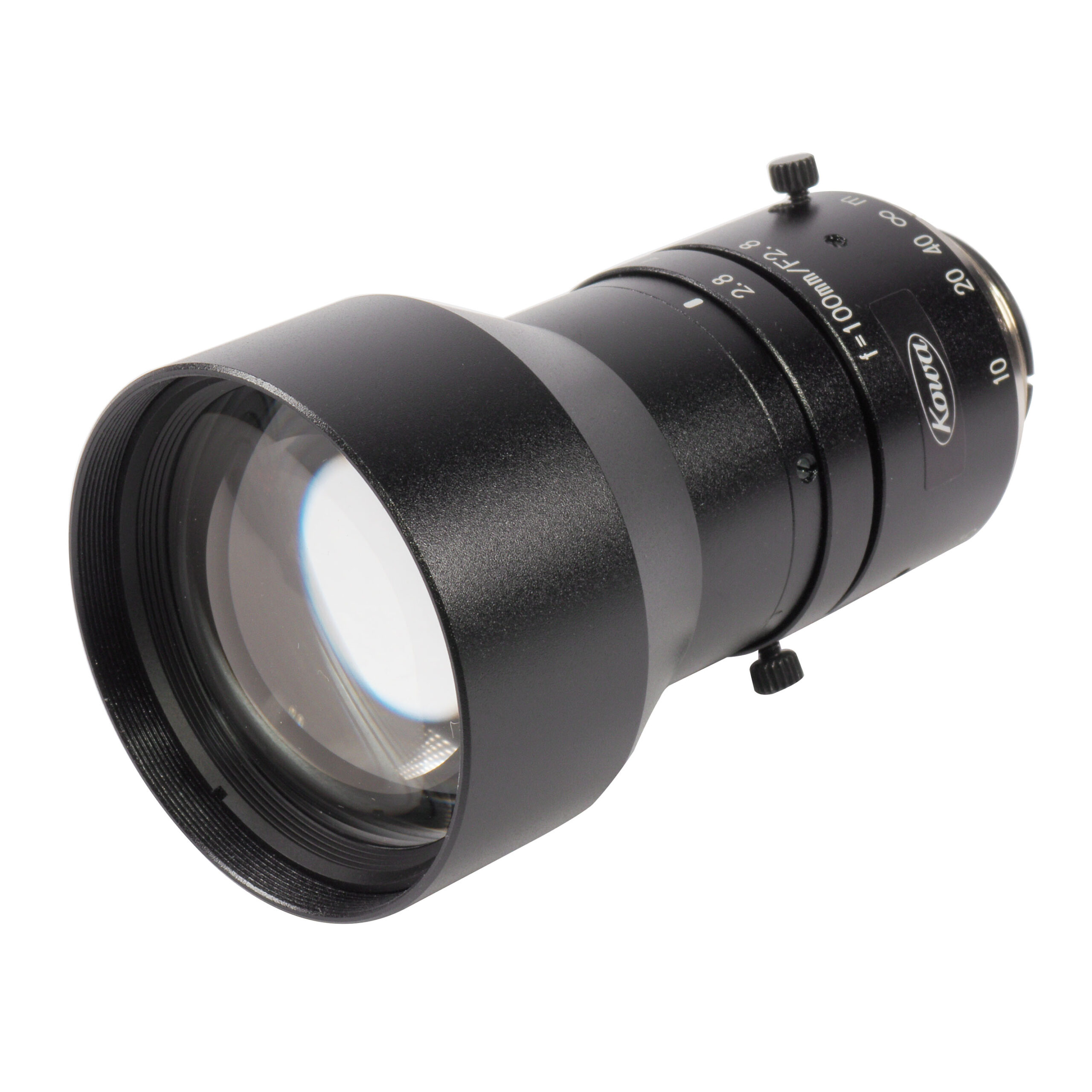

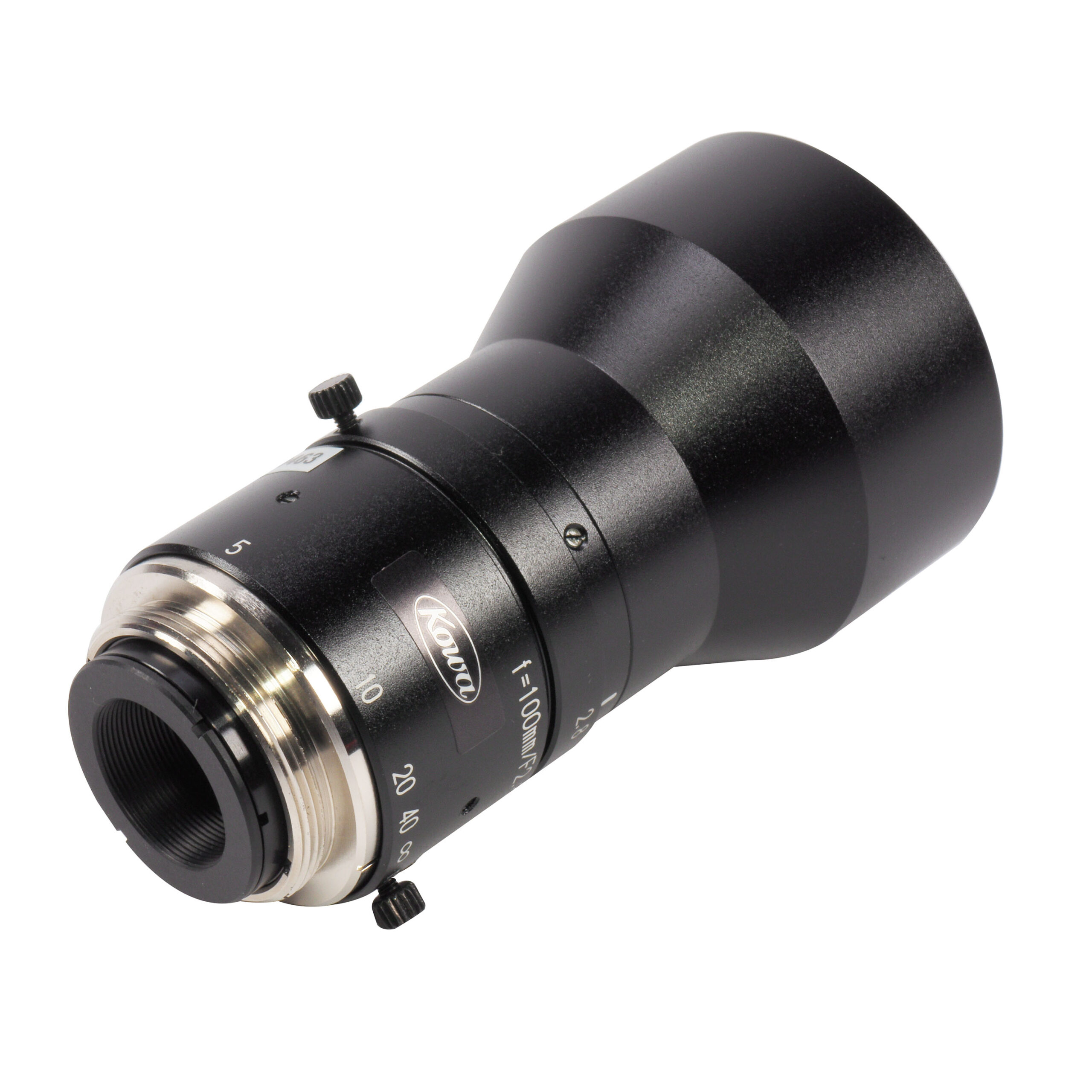

Product Information LM100JC – discontinued, available while stocks lastReplaced by LM100JC1MS
2/3″ Megapixel C-mount industrial lens
Focal length 100mm
For sensors with a pixel size from 5.0μm
Suitable for e2v EV76C560, CMOSIS CMV2000 and Aptina MT9M001 sensors and many more
| Pixel size (µm) | 5 |
| Iris control | Manual |
| Iris range (f stop) | 2,8 – 32 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm) |
| Focusing range (m) | 2 – ∞ |
| Focus control | Manual |
| Shooting range at mod horizontal (mm) | 36,8 |
| Shooting range at mod vertical (mm) | 27,6 |
| Resolution center | 100 |
| Resolution corner | 60 |
| Distortion (tv) (%) | -0,05 |
| Back focus in air (mm) | 24,01 |
| Filter size (mm) | M40,5 x P0,5 |
| Size (mm) | Ø42 X 70 |
| Weight (g) | 150 |
| Temperature range (℃) | -10°C – +50°C |
| Application | Machine Vision |
For more information about the features, visit the Kowa Product Documentation.
