Description

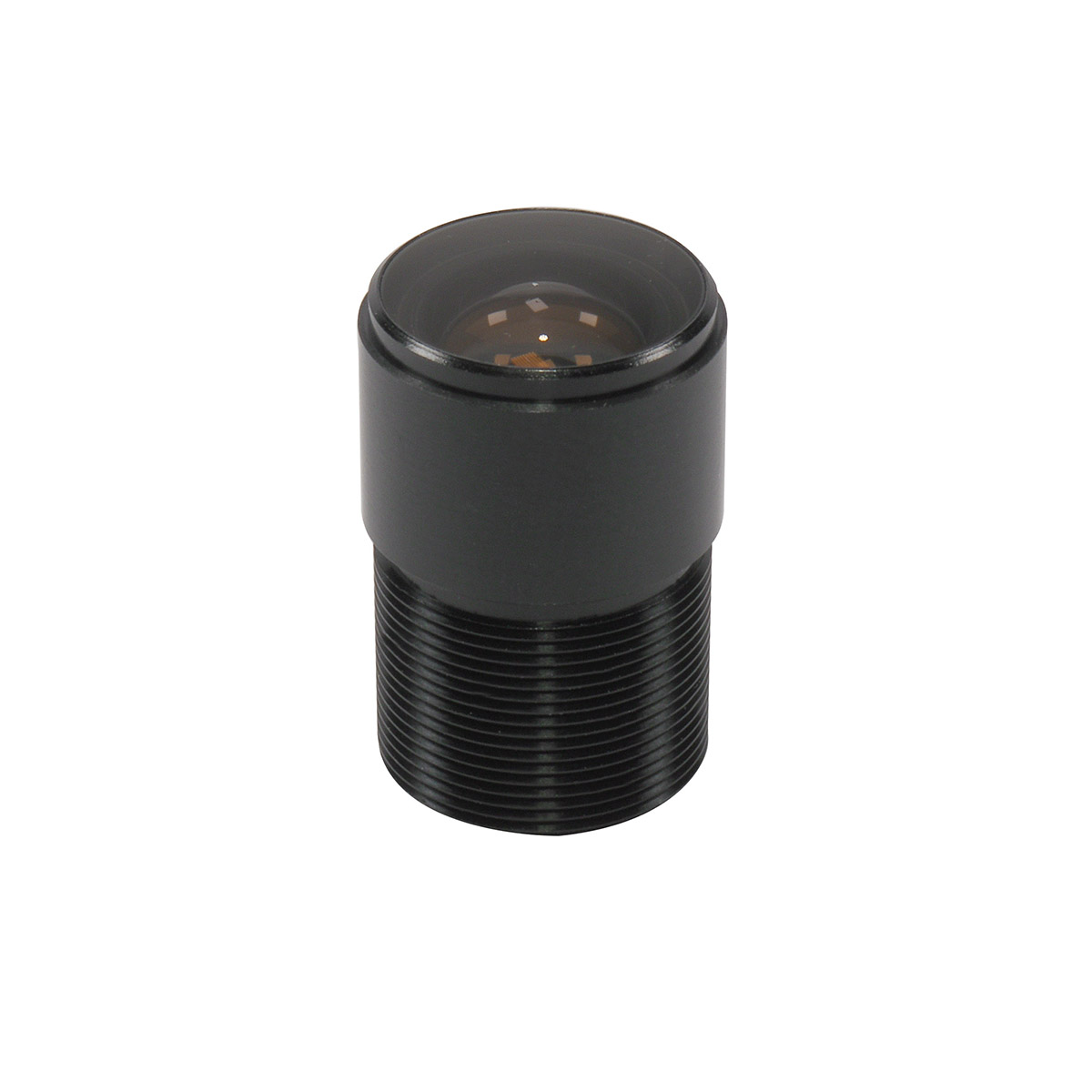

Product Information LM080-JCM | 2/3″ 8mm F2 (M12) S-Mount LensAperture modification possible
IR cut filter can be added
Gluing of the glass elements possible
Completely new optical and mechanical design on request
Available from a minimum order quantity of 100 lenses
Only available in Europe
| Iris range (f stop) | 2 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm) |
| Resolution center | 120 |
| Resolution corner | 30 |
| Distortion (tv) (%) | -2,2 |
| Back focus in air (mm) | 7,03 |
| Size (mm) | ɸ12,7 x 19,35 |
| Application | Machine Vision |
For more information about the features, visit the Kowa Product Documentation.
