Description

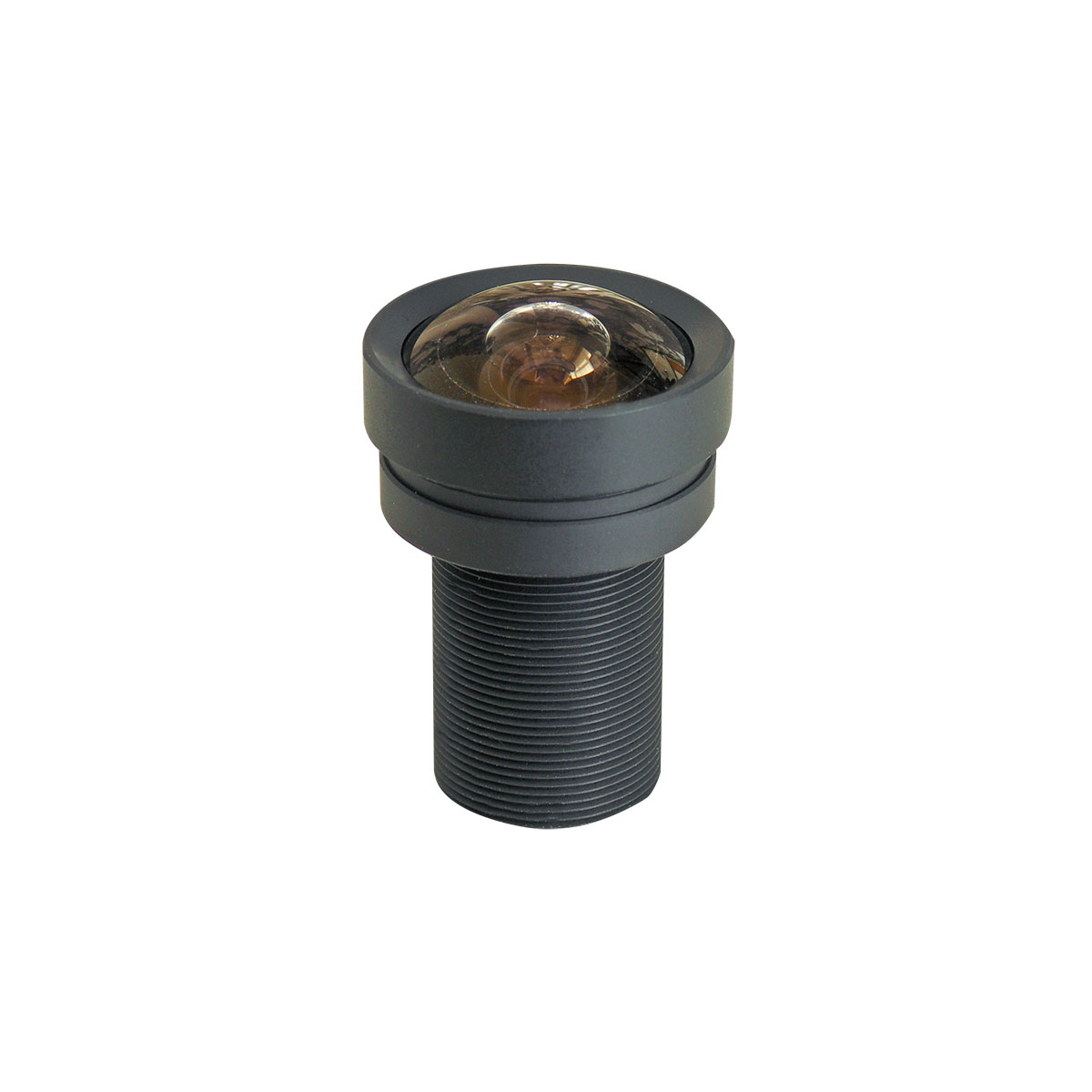

Product Information LM030D-NCM | 1/2″ 3.3mm F2 S-Mount (M12) Lens Aperture modification possible
IR cut filter can be added
Gluing of the glass elements possible
Completely new optical and mechanical design on request
Available from a minimum order quantity of 100 lenses
Only available in Europe
| Iris range (f stop) | 2 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm) |
| Resolution center | 200 |
| Resolution corner | 80 |
| Distortion (tv) (%) | -37,5 |
| Back focus in air (mm) | 4,09 |
| Size (mm) | ɸ18,5 x 27,19 |
| Application | Machine Vision |
For more information about the features, visit the Kowa Product Documentation.
