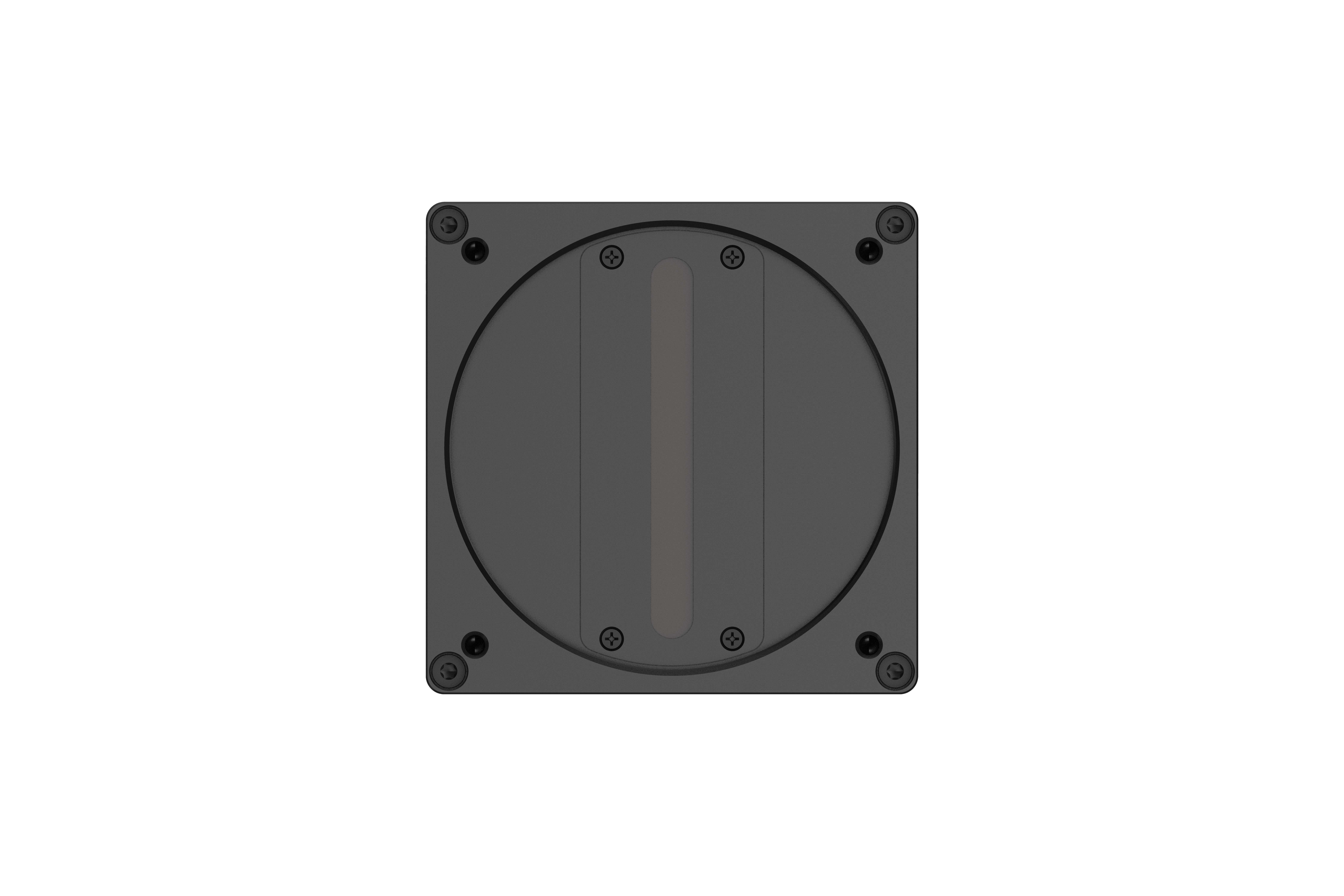

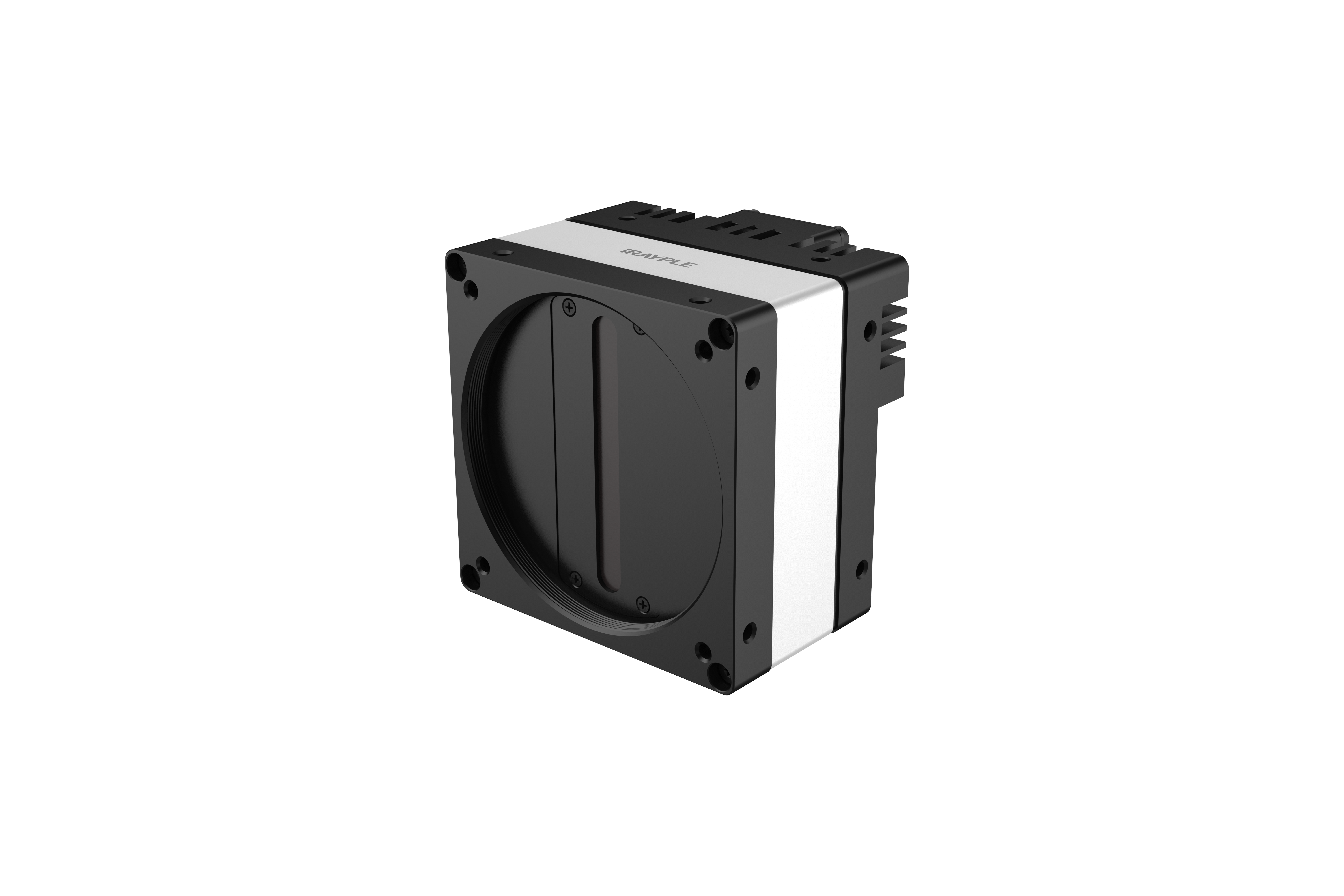

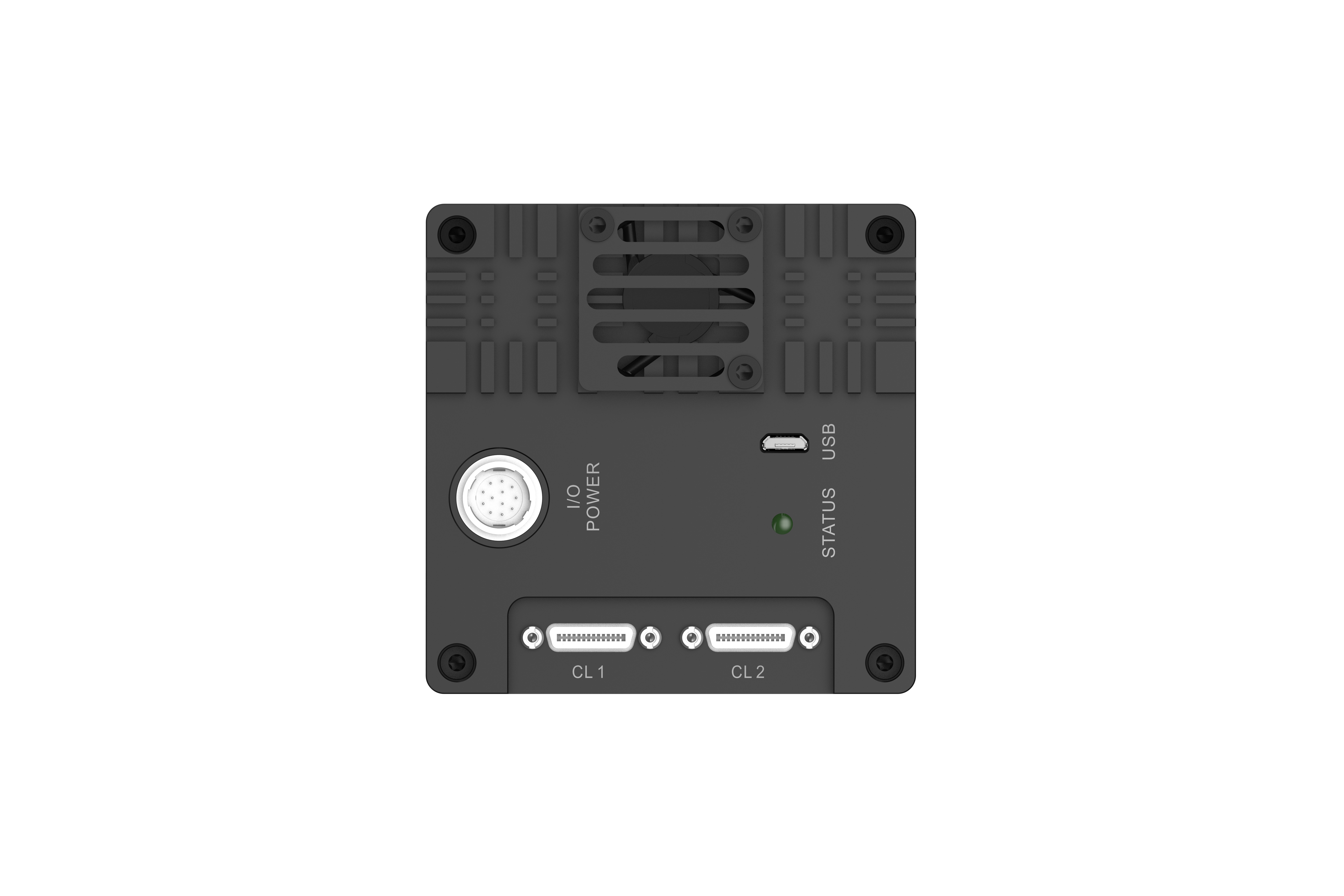

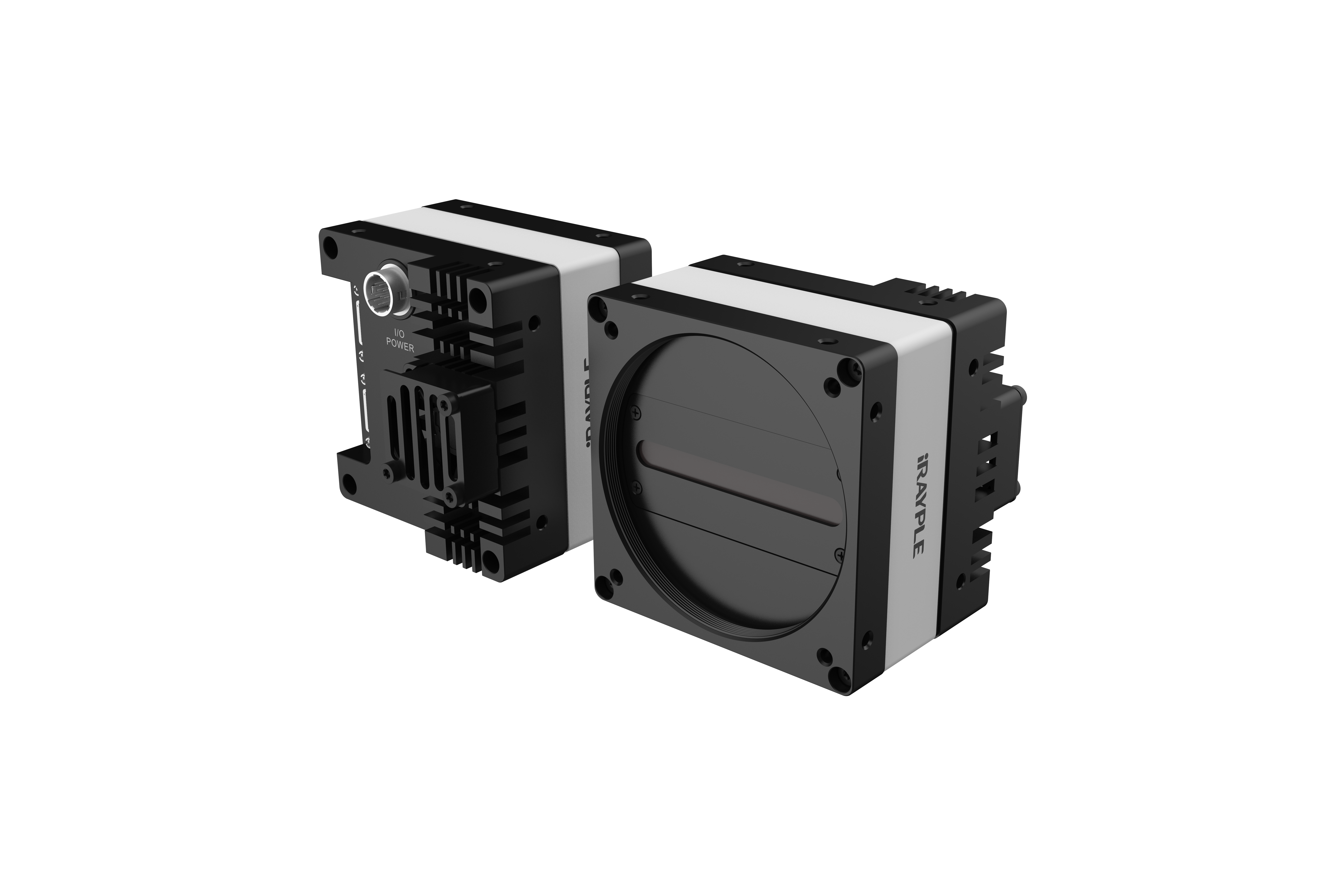

L5087CKA70E

Sensor	8 K
Image Sensor	CMOS
Shutter	Global
Resolution	8192 × 6
Line Rate	33 kHz
Bit Depth	10
Mono/Color	Colour
Pixel Size	5 μm × 5 μm
Pixel	8192*6
S/N Ratio	40 db
Dynamic Range	62 db
Image Format	RGB8
ROI	Support
X Flip	Support
Gain	1~32
White Balance	Support
Gamma	From 0 to 4, support LUT
Exposure Time	3 μS~100 mS
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
FPN	Support
TDI Stages	single_line, 2TDI
User Setting	Support two sets of user-defined configurations
Pixel Clock	34 51 68 85MHz
Port	CameraLink,use to camera control and data transmission, support base, medium, full mode.
GPIO Interface	4 differential input, output, and 1 GPIO input, output,
Lens Mount	M72
Power Supply	DC 12~24V power supply via 12-pin Hirose connector
Power Consumption	12 W
Product Dimensions	80 mm×80 mm×57.8 mm(Not including rear case connector)
Net Weight	520 g
Storage Temperature	– 30℃~+80℃
Operating Temperature	– 30℃~+50℃

Description

CameraLink supports Full, Medium, Base and Deca mode with maximum 6.8Gbps bandwidth
Supports external trigger, free run mode and multiple modes
Supports Gamma correction, LUT and other ISP functions
Applies DC 24V power supply
Compatible with Cameralink protocol and GenICam standard
Comply with CE, FCC, UL, RoHS certifications.

Bit depth	10
Dynamic range	62 dB
Exposure time	3 us~100 ms
Fpn	Support
Gain	1~32
Gamma	From 0 to 4，support LUT
Gpio interface	4 differential input, output, and 1 GPIO input, output,
Image format	RGB8
Image sensor	CMOS
Lens mount	M72
Line-rate	33 kHz
Pixel	8192*6
Pixel size	5 um x 5 um
Port	CameraLink,use to camera control and data transmission, support base, medium, full mode.
Power consumption	12 W
Power supply	DC 12~24V power supply via 12-pin Hirose connector
Resolution	8192 x 6
Roi	Support
Sensor	8 K
Shutter	Global
Storage temperature	– 30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support two sets of user-defined configurations
White balance	Support
X flip	Support
Mono-color	Colour
S/n ratio	40 dB
Tdi stages	single_line，2TDI
Pixel clock	34 51 68 85MHz
