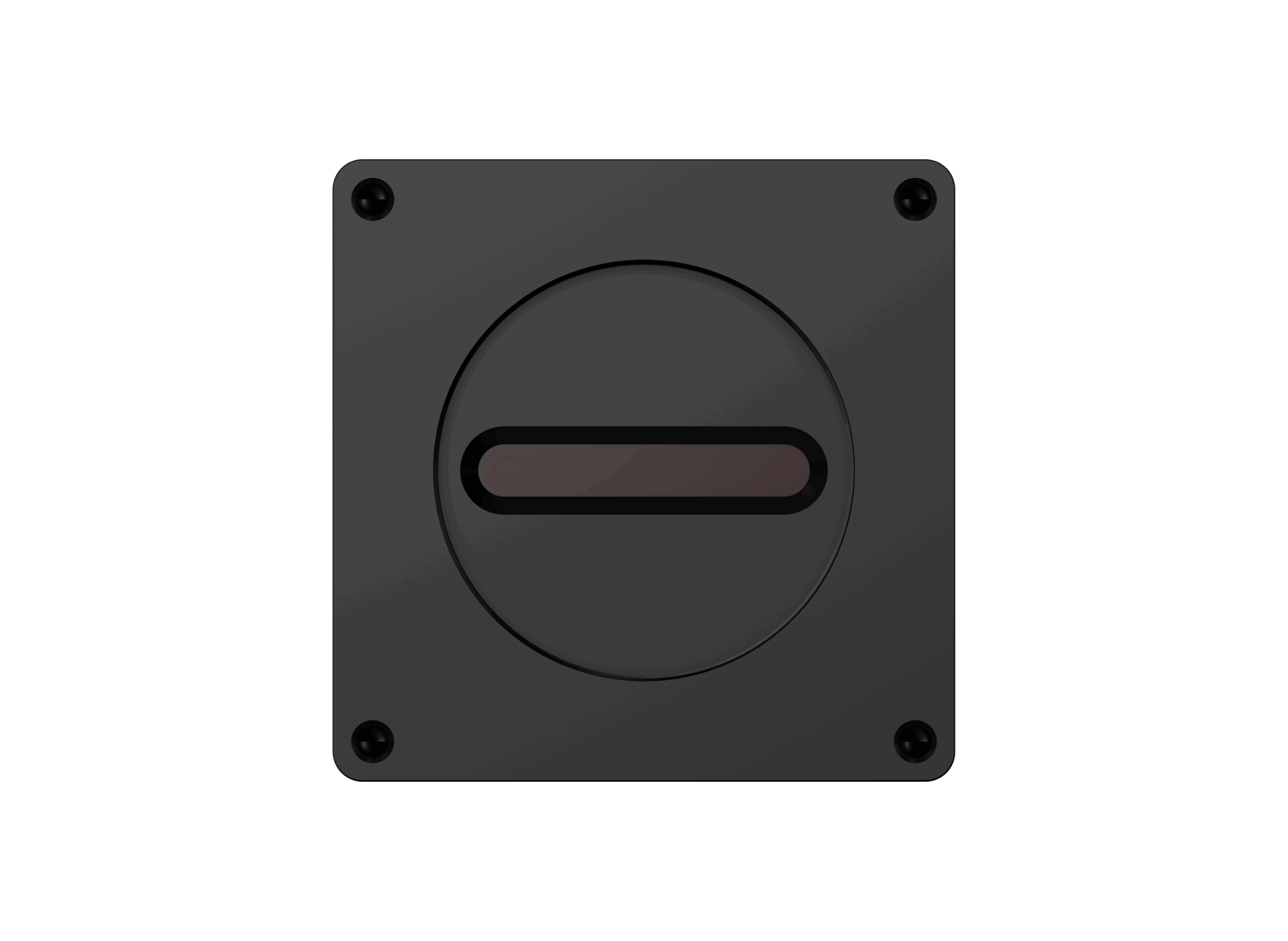

L5022CG141E

Sensor	2K
Image Sensor	CMOS
Shutter	Global
Resolution	2048 × 2
Line Rate	49 kHz
Bit Depth	12
Mono/Color	Color
Pixel Size	14 μm × 14 μm
S/N Ratio	>38dB
Dynamic Range	66dB
Image Format	BayerRG8/BayerRG10/BayerRG12/RGB8Packed/YUV422Packed
ROI	Support
X Flip	Support
Gain	1~32
White Balance	Support
Gamma	From 0 to 4, support LUT
Exposure Time	8μS~100mS
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
FPN	Support
User Setting	Support two sets of user-defined configurations
Image Buffer	64MB image cache, 64MB data cache
Port	GigE
GPIO Interface	2 differential input, 2 single-end input, 1 differential output and 1 GPIO.
Lens Mount	M42 x 1
Power Supply	DC12~24V power supply via 12-pin Hirose connector
Power Consumption	≈4.5W
Product Dimensions	62 mm × 62 mm × 35.8 mm (Not including rear case connector)
Net Weight	240 g
Storage Temperature	-30℃~+80℃
Operating Temperature	0℃~+50℃

Description

Bit depth	12
Dynamic range	66dB
Exposure time	8us~100mS
Fpn	Support
Gain	1~32
Gamma	From 0 to 4，support LUT
Gpio interface	2 differential input, 2 single-end input, 1 differential output and 1 GPIO.
Image buffer	64MB image cache，64MB data cache
Image format	BayerRG8/BayerRG10/BayerRG12/RGB8Packed/YUV422Packed
Image sensor	CMOS
Lens mount	M42 x 1
Line-rate	49 kHz
Pixel size	14 um x 14 um
Port	GigE
Power consumption	≈4.5W
Power supply	DC12~24V power supply via 12-pin Hirose connector
Resolution	2048 x 2
Roi	Support
Sensor	2K
Shutter	Global
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support two sets of user-defined configurations
White balance	Support
X flip	Support
Mono-color	Color
S/n ratio	>38dB
