Description
- Measured with 24V power supply
- Case temperature, measured on the front part of the camera body
- Ambient temperature

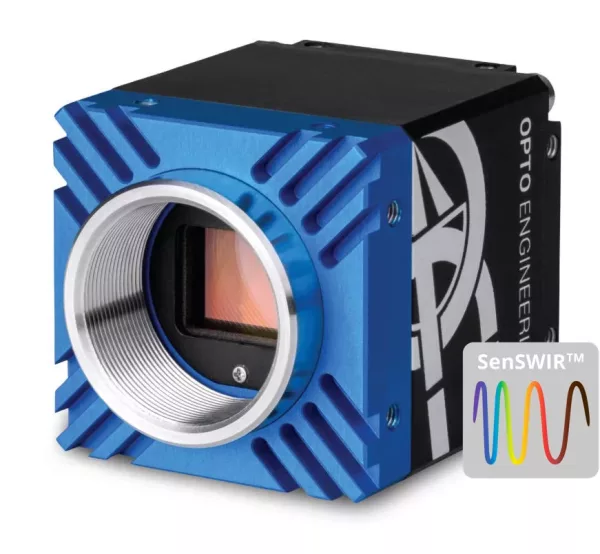

ITA13-GM-10C-SWIR
| Specification | Value |
|---|---|
| Megapixel | 1.3 |
| Resolution | 1296 x 1032 |
| Sensor format | 1/2″ |
| Sensor diagonal | 8.2 (mm) |
| Pixel size | 5.00 (μm) |
| Sensor model | IMX990 |
| Sensor type | CMOS |
| Shutter | Global |
| Chroma | VIS-SWIR |
| Filter | AR glass |
| Frame rate | 87.8 (fps) |
| Burst frame rate | 125.2 (fps) |
| Exposure time | 2.96 μs – 10 s |
| ADC resolution | 10/12 (bit) |
| Dynamic range | 56.5 (dB) |
| Gain range | 0-48 (dB) |
| SNR | 52.2 (dB) |
| Image buffer | 384 (MB) |
| Image processing | Binning, decimation, ROI, gamma, black level, LUT, defective pixel correction |
| Pixel formats | Mono 8/ 10p/ 10Packed/ 12p/12Packed |
| Chunk data | yes |
| User sets | 3 |
| Timers/Counters | 2/4 |
| Synchronization | Free run, software trigger, hardware trigger, PTP (IEEE 1588) |
| Data connector | RJ45 |
| Data interface | 1 GigE |
| I/O connector | 12-pin Hirose |
| I/O interface | 2x opto-isolated input, 4x opto-isolated output |
| Serial interface | RS232, RS485 |
| Liquid lens controller | no |
| Encoder interface | yes, incremental |
| Power supply | 12-24, PoE (IEEE 802.3af class 2) (V) |
| Max power consumption | 4.0 (W) |
| Standards | GigE Vision 2.2, GenICam, GenTL |
| Client software | ITALA View or other GigE Vision 2.x software |
| Operating systems | 64-bit Windows 10/11, Ubuntu 18.04/20.04/22.04 |
| Shock and vibrations | EN 60068-2-27, EN 60068-2-6, EN 60068-2-64 |
| Warranty | 5 (years) |
| Mount | C |
| Dimensions | 40.5 x 40.5 x 51.2 (mm) |
| Clamping system | 16x M3 threaded holes (on all sides) |
| Mass | 142 (g) |
| Operating temperature | -25 – +65 (°C ) |
| Storage temperature | -10 – +60 (°C ) |
| Operating relative humidity | 20-80, non condensing (%) |
| IP rating | IP30 |
Additional information
| Frame rate | 87.8 (fps) |
|---|---|
| Exposure time | 2.96 μs – 10 s |
| Operating relative humidity | 20-80, non condensing (%) |
| Clamping system | 16x M3 threaded holes (on all sides) |
| Megapixel | 1.3 |
| Dynamic range | 56.5 (dB) |
| Serial interface | RS232, RS485 |
| Pixel size | 5.00 (μm) |
| Sensor format | 1/2" |
| Filter | AR glass |
| Sensor type | CMOS |
| Shutter | Global |
| Operating temperature | -25 – +65 (°C ) |
| Adc resolution | 10/12 (bit) |
| Resolution | 1296 x 1032 |
| Dimensions | 40.5 x 40.5 x 51.2 (mm) |
| Chroma | VIS-SWIR |
| Data connector | RJ45 |
| Interface | 1 GigE |
| Lens mount | C |
| Mono-color | VIS-SWIR |
| Storage temperature | -10 – +60 (°C ) |
| Ip rating | IP30 |
| Max power consumption | 4.0 (W) |
| Burst frame rate | 125.2 (fps) |
| Standards | GigE Vision 2.2, GenICam, GenTL |
| Sensor diagonal | 8.2 (mm) |
| User sets | 3 |
| Timers counters | 04.febr |
| Synchronization | Free run, software trigger, hardware trigger, PTP (IEEE 1588) |
| Data interface | 1 GigE |
| I/o interface | 2x opto-isolated input, 4x opto-isolated output |
| Gain range | 0-48 (dB) |
| I/o connector | 12-pin Hirose |
| Encoder interface | yes, incremental |
| Mass | 142 (g) |
| Snr | 52.2 (dB) |
| Client software | ITALA View or other GigE Vision 2.x software |
| Power supply | 12-24, PoE (IEEE 802.3af class 2) (V) |
| Operating systems | 64-bit Windows 10/11, Ubuntu 18.04/20.04/22.04 |
| Shock and vibrations | EN 60068-2-27, EN 60068-2-6, EN 60068-2-64 |
| Warranty | 5 (years) |
| Image buffer | 384 (MB) |
| Image processing | Binning, decimation, ROI, gamma, black level, LUT, defective pixel correction |
| Mount | C |
| Sensor model | IMX990 |
| Liquid lens controller | no |
| Pixel formats | Mono 8/ 10p/ 10Packed/ 12p/12Packed |
| Chunk data | yes |
| Accessory developer | Opto |
