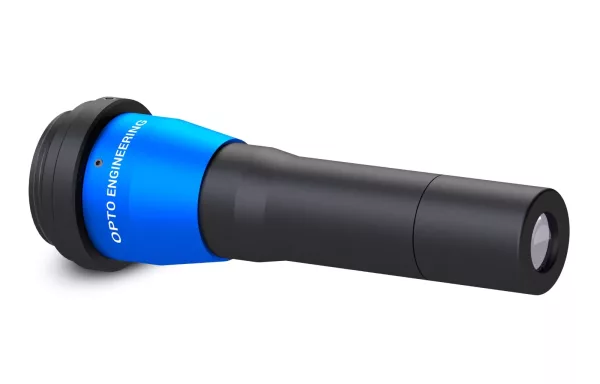

HCN13010

Specification	Value
Image circle diameter	3.8 (mm)
Min sensor size	1/3″
Maximum	2.0 x 5.0 (mm x mm)
Medium	1.4 x 3.5 (mm x mm)
Minimum	0.8 x 1.9 (mm x mm)
Working distance with maximum object	16.8 (mm)
Working distance with medium object	15.3 (mm)
Working distance with minimum object	14.9 (mm)
Convergence point distance	13.3 (mm)
Angle of view	34 (deg)
f/N	30
Mount	C
Length	95.6 (mm)
Front diameter	19.0 (mm)
Mass	74 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only

Description

Working distance: distance between the front end of the mechanics and the object.
Distance between the front end of the mechanics and the point where all the optical rays coming from the object converge (entrance pupil).
Measured from the front end of the mechanics to the camera flange.

Lens mount	C
F/n	30
Convergence point distance	13.3 (mm)
Image circle diameter	3.8 (mm)
Length	95.6 (mm)
Front diameter	19.0 (mm)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Installation	Indoor use only
Mass	74 (g)
Min sensor size	1/3"
Operating relative humidity	20-85, non condensing (%)
Minimum	0.8 x 1.9 (mm x mm)
Maximum	2.0 x 5.0 (mm x mm)
Wd (min object)	14.9 (mm)
Wd (max object)	16.8 (mm)
Angle of view	34 (deg)
Medium	1.4 x 3.5 (mm x mm)
Wd (med object)	15.3 (mm)
Mount	C
Accessory developer	Opto
