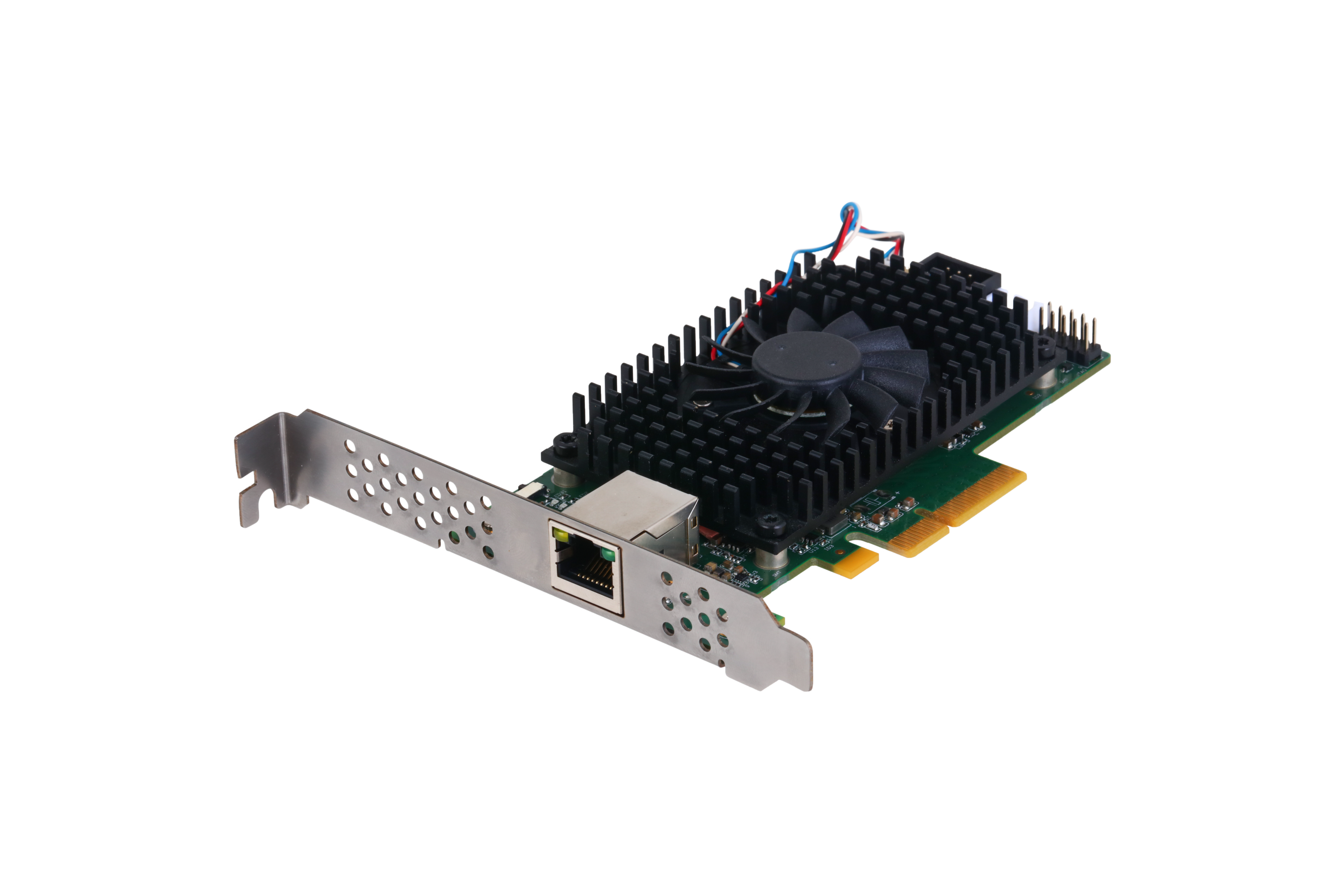

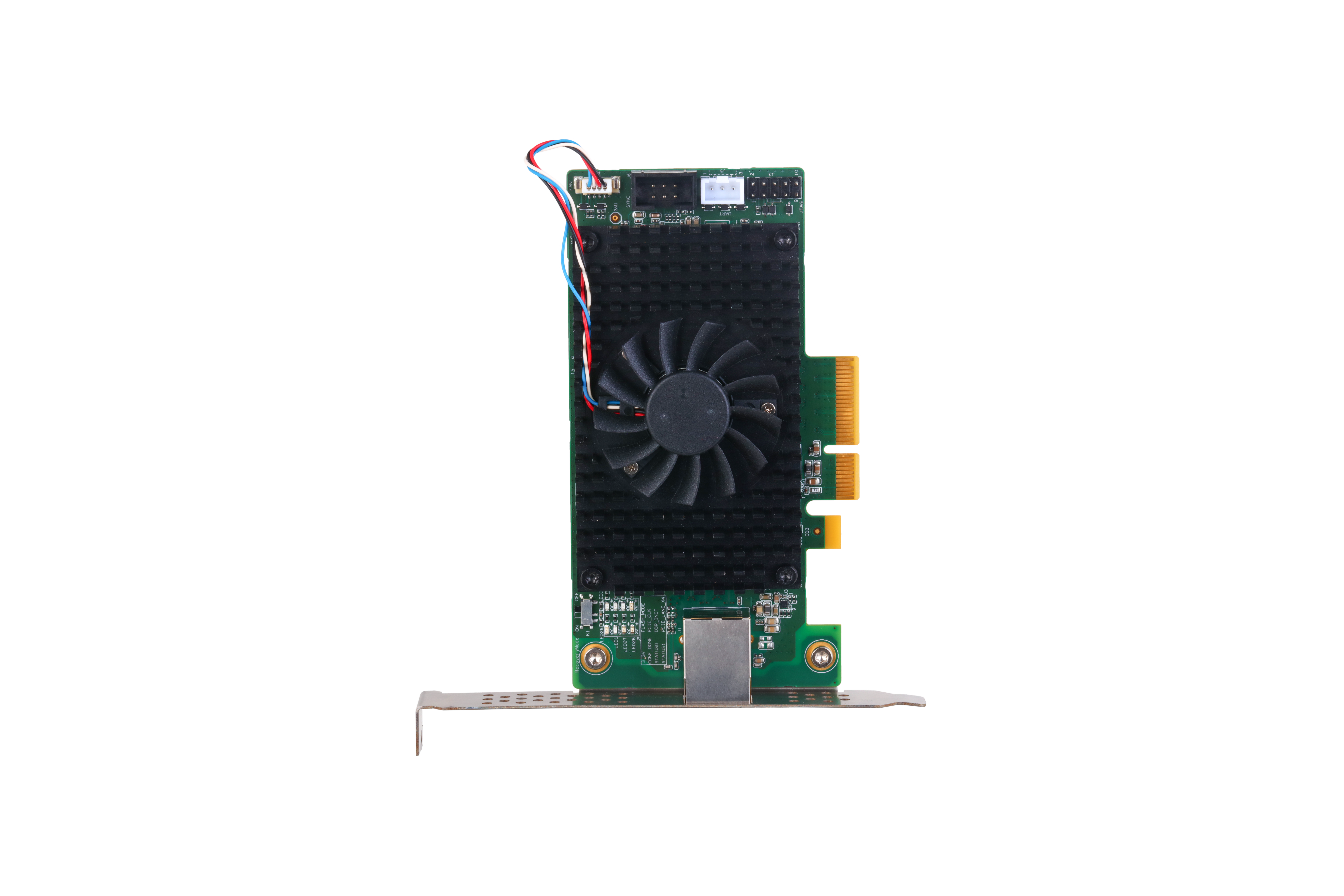

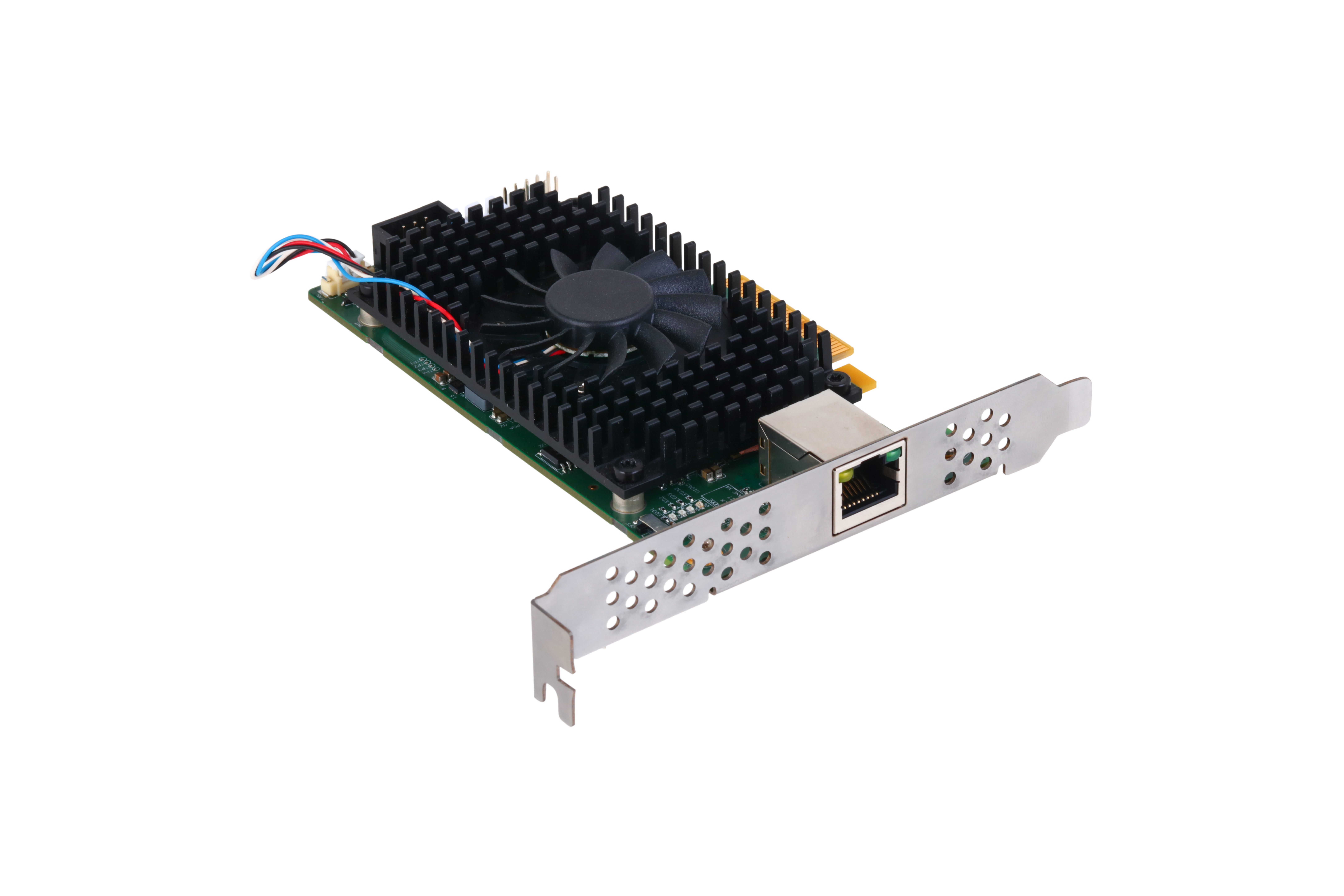

GT-7G10E

Type	10Gige Frame Grabber
Model	GT-7G10E
Number of Channels	1 channels
Camera Compatibility	GigE industrial camera; 10GigE industrial camera
Number of Cameras	Max 1 cameras
Operating System	Windows7/10/11 64bits
Power Supply	PCIE
Power Consumption	9W
Product Dimensions	137.5mmx120.8mmx21.6mm
Net Weight	0.35kg
Host Bus Standard	PCIe Gen2 X4
Interface	1xRJ45
Transfer Rate	100Mbps; 1Gbps; 2.5Gbps; 10Gbps
Operating Temperature	0?~50?
Storage Temperature	-20?~70?
Operating Humidity	10%~90%RH, non-condensing
Storage Humidity	10%~90%RH, non-condensing

Description

support One network interface, providing a maximum bandwidth of 10Gbps and a maximum transmission distance of 100m
Port status indicator, real-time feedback of network port status
Built-in data processing control chip to reduce CPU utilization
Conform to CE, KC

Interface	1xRJ45
Operating humidity	10%~90%RH, non-condensing
Power consumption	9W
Power supply	PCIE
Product type	10GigE Frame Grabber
Storage temperature	-20℃~70℃
Number of channels	1 channels
Camera compatibility	GigE industrial camera; 10GigE industrial camera
Number of cameras	Max 1 cameras
Operating system	Windows7/10/11 64bits
Host bus standard	PCIe Gen2 X4
Transfer rate	100Mbps; 1Gbps; 2.5Gbps; 10Gbps
Storage humidity	10%~90%RH, non-condensing
