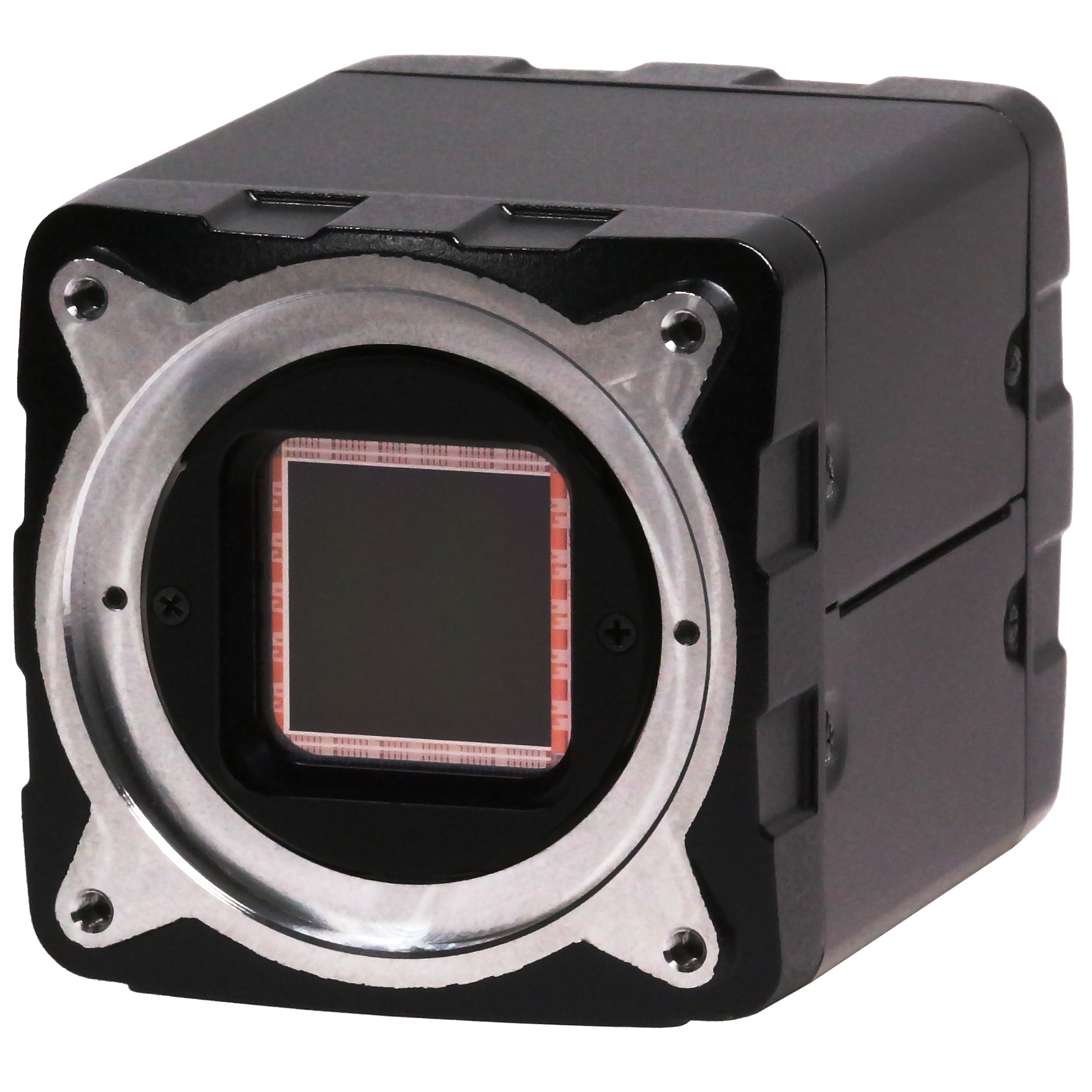

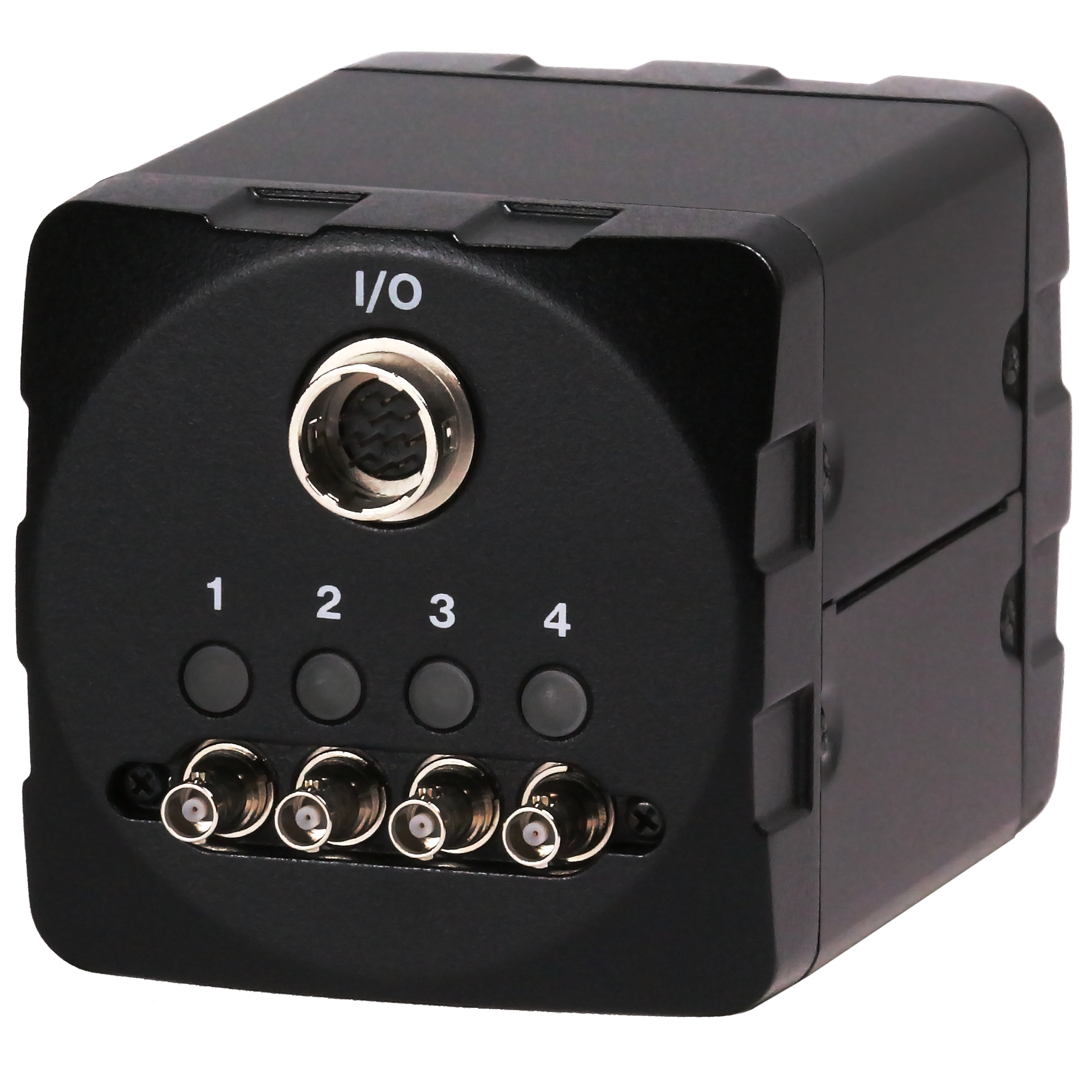

EX670AMCG-X

EX670AM Series is an integrated camera with a CoaXPress 2.0 interface. Incorporating a 67MP CMOS sensor, the EX Series provides a wide field of view. The use of CXP-12 Quad allows high speed transfer of images. Measuring only 60 mm square, the chassis can be installed easily. The lens-mountless structure makes it possible to use different lenses according to the application requirements.

Description

Key Features

e2v 67MP CMOS sensor
TELI original IP core
Global electronic shutter
CoaXPress 2.0 interface
50Gbps transfer bandwidth provided by CXP-12 Quad
GenICam conformity
IIDC2 Digital Camera Control Specification
Square grid array
Camera control / image acquisition by TeliCamSDK

Downloads

https://www.toshiba-teli.co.jp/pdf/industrial-camera-en/op-ex370bm_ex670am_e.pdf

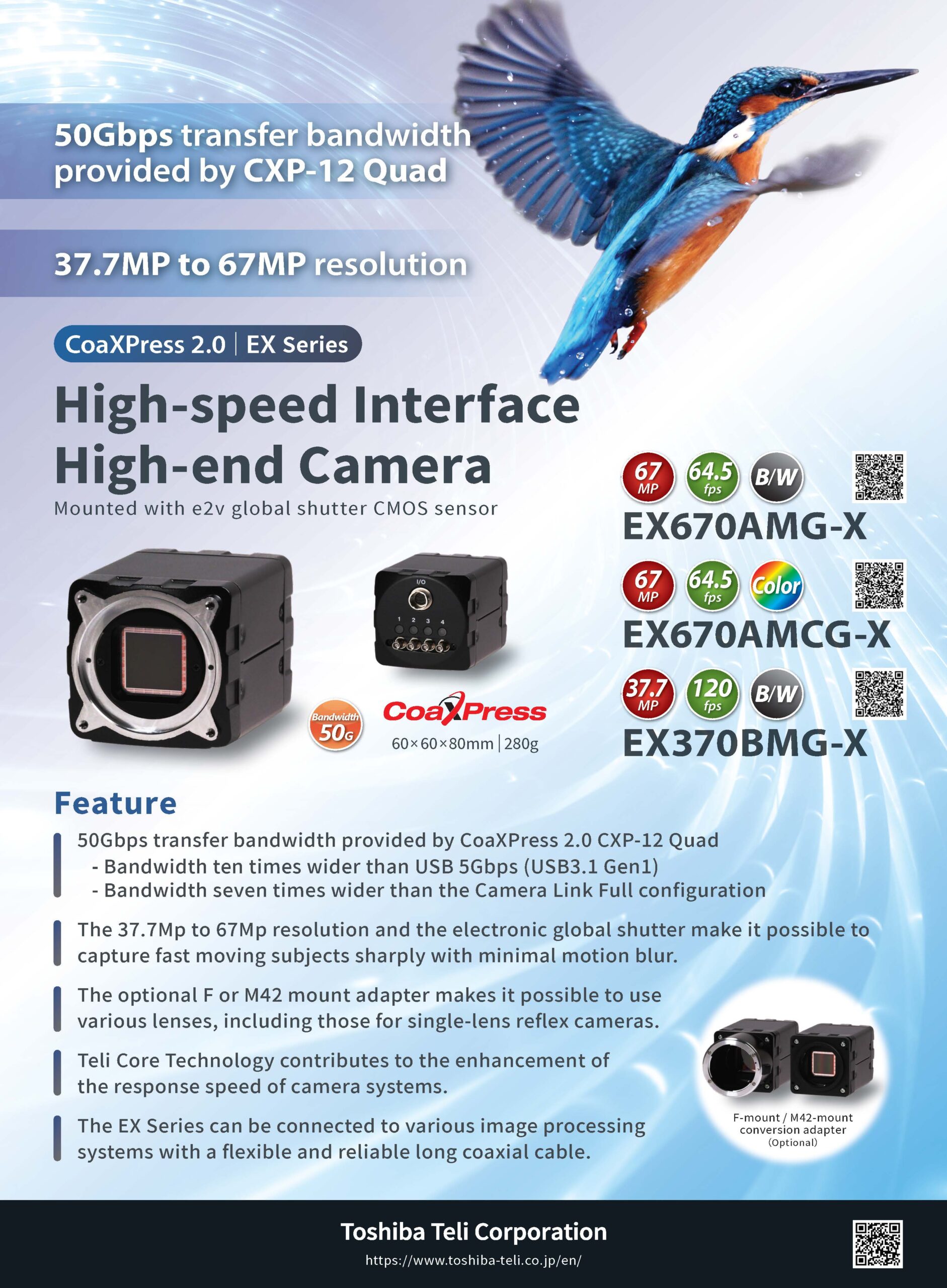

https://www.toshiba-teli.co.jp/pdf/catalog-en/fl_ex-series_en.pdf
https://www.toshiba-teli.co.jp/pdf/industrial-camera-en/ex370bm_ex670am_e.pdf

Additional information

Frame rate	64.5fps (CXP-12 Quad, Mono 8bit) 31.6fps (CXP-6 Quad, Mono 8bit) 15.8fps (CXP-12, Mono 8bit) 8fps (CXP-6, Mono 8bit)
Gain	MANUAL: 0 to +36dB
Interface	CoaXPress 2.0 Camera
Mass	approx. 280g
Pixel size	2.5μm x 2.5μm
Power consumption	13.6W *1
Power supply	PoCXP / DC+24V (18.5V to 26V) (HIROSE connector)
Resolution	8,192(H) x 8,192(V)
Sensitivity	2,100 lx (F5.6, 1/66.7s)
Aspect ratio	1:01
Black level	-25% to +25%
Color type	Color Camera
Conformity	CE, FCC, RoHS, WEEE, CoaXPress 2.0, GenICam, IIDC2
Electronic shutter method	Global shutter
Exposure time2	MANUAL: 10μs to 16s Random Trigger Shutter: 10μs to 1s (Edge or Bulk mode), 200μs to Trigger width (Level mode)
External dimension	60(W) x 60(H) x 80(D) mm (Not including protruding parts)
External trigger input	"Low: 0 to 0.5V, High: 2 to 24.0V High active / Low active, Pulse width: 200μs (minimum)
High gain mode	OFF / x4
Image output format	Bayer 8bit
Image size	1.8 type (APS-C)
Imager	CMOS image sensor
Imager model	EV2S67MB
Interface3	CoaXPress 2.0
Lens mount \| flange back	8mm, Mountless (Φ50 H7)
Lut	In 12bit, Out 12bit
Minimum illuminance	1 lx (F1.4, Gain: +36dB, High Gain Mode: x4, Video level: 50%)
On chip color filter	RGB primary color mosaic-on-tip color filter
Operation humidity	10% to 90% (no condensation)
Operation temperature	0°C to 40°C (below 60°C on cabinet surface)
Optical glass filter	Dust-proof glass
Pixels	67M
Random trigger shutter mode	Edge / Level / Bulk (255 times)
Random trigger shutter type	External Trigger / Software Trigger / Link Trigger
Readout mode	All pixel, Scalable, Binning, Mirroring, Flip
Scanning	Progressive
Scanning area	20.48mm(H) x 20.48mm(V)
Sequential shutter	16 entry (max)
Synchronization system	Internal
