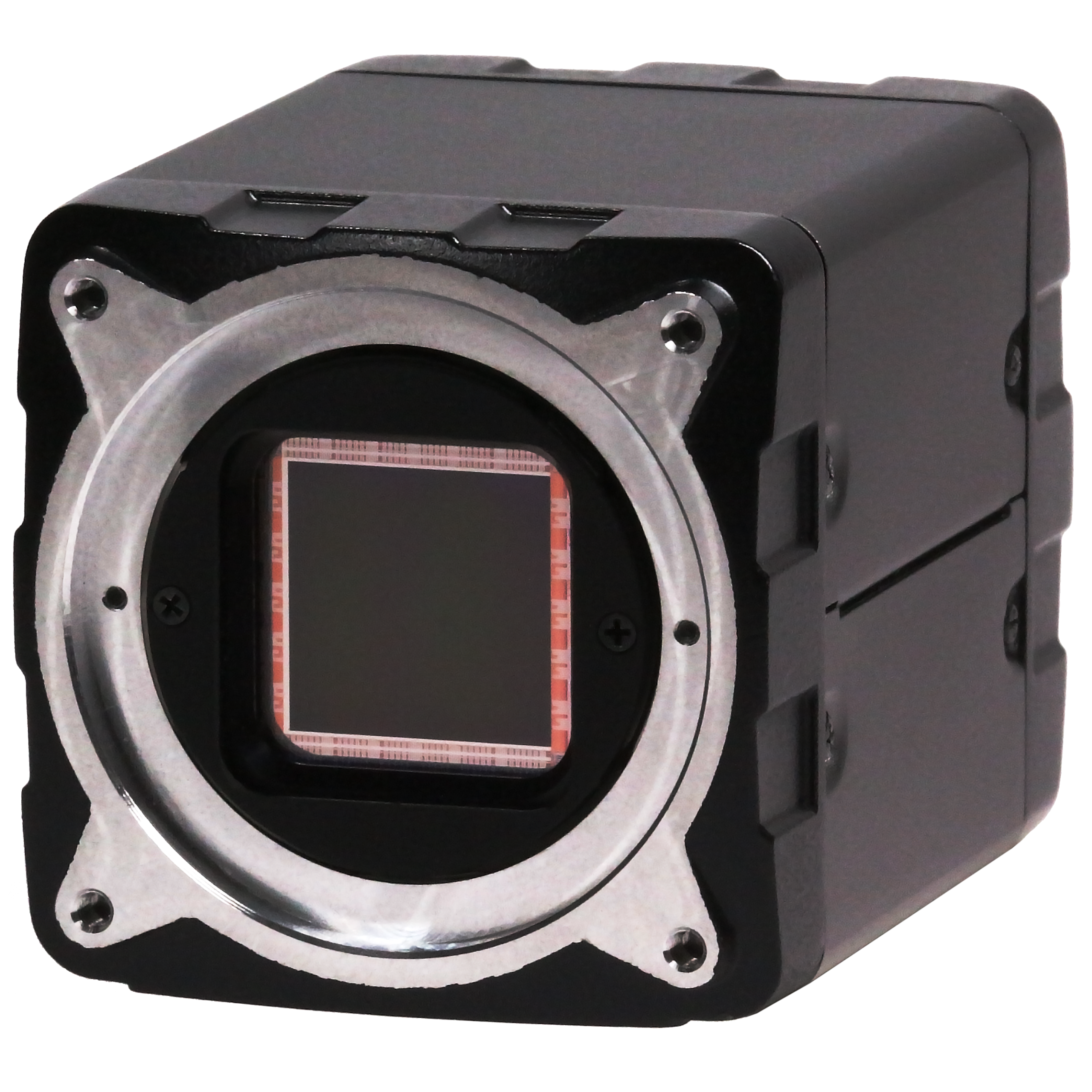

EX370BMG-X Series is an integrated camera with a CoaXPress 2.0 interface. Incorporating a 37.7MP CMOS sensor, the EX Series provides a wide field of view. The use of CXP-12 Quad allows high speed transfer of images. Measuring only 60 mm square, the chassis can be installed easily. The lens-mountless structure makes it possible to use different lenses according to the application requirements.

Add to Quote
Category: Tag: Brand:

Description

Key Features

  • e2v 37.7MP CMOS sensor
  • TELI original IP core
  • Global electronic shutter
  • CoaXPress 2.0 interface
  • 50Gbps transfer bandwidth provided by CXP-12 Quad
  • GenICam conformity
  • IIDC2 Digital Camera Control Specification
  • Square grid array
  • Camera control / image acquisition by TeliCamSDK

Downloads

https://www.toshiba-teli.co.jp/pdf/industrial-camera-en/op-ex370bm_ex670am_e.pdf
https://www.toshiba-teli.co.jp/pdf/catalog-en/fl_ex-series_en.pdf
https://www.toshiba-teli.co.jp/pdf/industrial-camera-en/ex370bm_ex670am_e.pdf

Additional information

Frame rate

120 fps (CXP-12 Quad, Mono 8bit) 42.1 fps (CXP-6 Quad, Mono 8bit) 21 fps (CXP-12, Mono 8bit) 10.7 fps (CXP-6, Mono 8bit)
Gain

MANUAL: 0 to +36dB
Interface

CoaXPress 2.0 Camera
Lens mount

Mountless (Φ50 H7)
Mass

approx. 280g
Pixel size

2.5μm x 2.5μm
Power consumption

13.6W
Power supply

PoCXP / DC+24V (18.5V to 26V) (HIROSE connector)
Resolution

6,144(H) x 6,144(V)
Sensitivity

2,350 lx (F5.6, 1/125s)
Aspect ratio

1:01
Black level

-25% to +25%
Color type

B/W Camera
Conformity

CE, FCC, RoHS, WEEE, CoaXPress 2.0, GenICam, IIDC2
Electronic shutter method

Global shutter
Exposure time2

MANUAL: 10μs to 16s Random Trigger Shutter: 10μs to 1s (Edge or Bulk mode), 200μs to Trigger width (Level mode)
External dimension

60(W) x 60(H) x 80(D) mm (Not including protruding parts)
External trigger input

"Low: 0 to 0.5V, High: 2 to 24.0V High active / Low active, Pulse width: 200μs (minimum)
Image output format

Mono12, Mono10, Mono8
Image size

4/3 type
Imager

CMOS image sensor
Imager model

EV2S36MB
Interface3

CoaXPress 2.0
Lut

In 12bit, Out 12bit
Minimum illuminance

2 lx (F1.4, Gain: +36dB, Video level: 50%)
Operation humidity

10% to 90% (no condensation)
Operation temperature

0°C to 40°C (below 60°C on cabinet surface, below 75°C on image sensor)
Optical glass filter

Dust-proof glass
Pixels

37.7M
Random trigger shutter mode

Edge / Level / Bulk (255 times)
Random trigger shutter type

External Trigger / Software Trigger / Link Trigger
Readout mode

All pixel, Scalable, Binning, Mirroring, Flip
Scanning

Progressive
Scanning area

15.36mm(H) x 15.36mm(V)
Sequential shutter

16 entry (max)
Synchronization system

Internal
