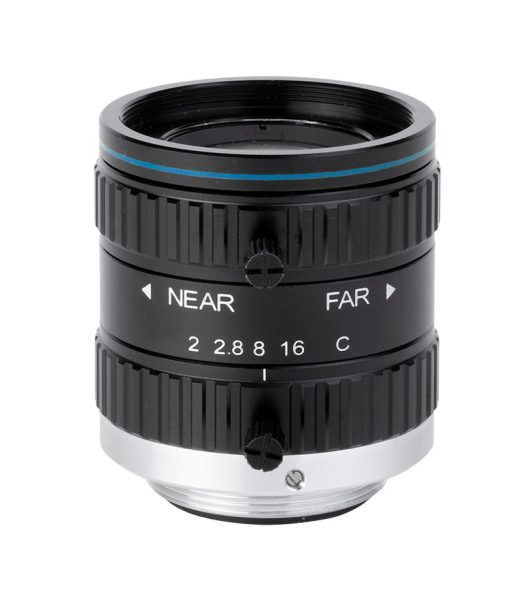

EN8MPL3520

EN8MPL3520

Specification Value
Focal length 35 (mm)
Magnification 0.198 (x)
Image circle diameter 16.0 (mm)
Max sensor size 1″
1/2″ 13.1 (deg)
2/3″ 17.8 (deg)
1″ 25.7 (deg)
1/2″ 32.29 x 24.22
2/3″ 42.89 x 35.77
1″ 62.76 x 49.60
Working distance range 0.2 – inf (m)
f/N 2.0 – close
Back focal length 12.96 (mm)
Distortion on 1/2″ 0.08 (%)
Distortion on 2/3″ 0.16 (%)
Distortion on 1″ 0.33 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M30.5 x 0.5
Outer diameter 35.7 (mm)
Length 35.7 (mm)
Mass 74 (g)
Set screw thread M2
Operating temperature -10-+50 (°C)
Add to Quote
Category: Tag: Brand:

Description

  1. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  2. Calculated at minimum object distance.
  3. Working distance: distance between the front end of the mechanics and the object.
  4. Measured from the front end of the mechanics to the camera flange at infinity focus.

Additional information

Lens mount

C
F/n

2.0 – close
Optmag

0.198 (x)
Accessory developer

Opto
Zoom ratio

0.198 (x)
Magnification

0.198 (x)
Max sensor size

1″
Distortion on 1

0.33 (%)
Mass

74 (g)
1

62.76 x 49.60
Image circle diameter

16.0 (mm)
Length

35.7 (mm)
Operating temperature

-10-+50 (°C)
Focal length

35 (mm)
Working distance range

0.2 – inf (m)
Back focal length

12.96 (mm)
Distortion on 1 2

0.08 (%)
Distortion on 2 3

0.16 (%)
Iris control

Manual
Focus control

Manual
Filter thread

M30.5 x 0.5
Outer diameter

35.7 (mm)
Set screw thread

M2
Mount

C
Focal length (mm)

35 (mm)
Sensor size
