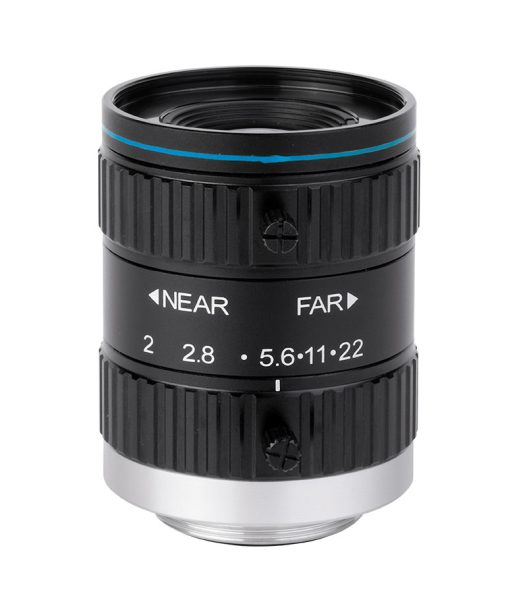

EN8MPL1620

EN8MPL1620

Specification Value
Focal length 16 (mm)
Magnification 0.147 (x)
Image circle diameter 16.0 (mm)
Max sensor size 1″
1/2″ 28.0 (deg)
2/3″ 38.0 (deg)
1″ 53.7 (deg)
1/2″ 43.60 x 32.70
2/3″ 57.90 x 48.30
1″ 84.74 x 66.96
Working distance range 0.1 – inf (m)
f/N 2.0 – 22
Back focal length 11.19 (mm)
Distortion on 1/2″ 0.71 (%)
Distortion on 2/3″ 1.27 (%)
Distortion on 1″ 2.20 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M34 x 0.5
Outer diameter 37.4 (mm)
Length 45.9 (mm)
Mass 151 (g)
Set screw thread M2
Operating temperature -10-+50 (°C)
Add to Quote
Category: Tag: Brand:

Description

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinity focus.

Additional information

Lens mount

C
F/n

2.0 – 22
Optmag

0.147 (x)
Accessory developer

Opto
Zoom ratio

0.147 (x)
Magnification

0.147 (x)
Max sensor size

1″
Distortion on 1

2.20 (%)
Mass

151 (g)
1

84.74 x 66.96
Image circle diameter

16.0 (mm)
Length

45.9 (mm)
Operating temperature

-10-+50 (°C)
Focal length

16 (mm)
Working distance range

0.1 – inf (m)
Back focal length

11.19 (mm)
Distortion on 1 2

0.71 (%)
Distortion on 2 3

1.27 (%)
Iris control

Manual
Focus control

Manual
Filter thread

M34 x 0.5
Outer diameter

37.4 (mm)
Set screw thread

M2
Mount

C
Focal length (mm)

16 (mm)
Sensor size
