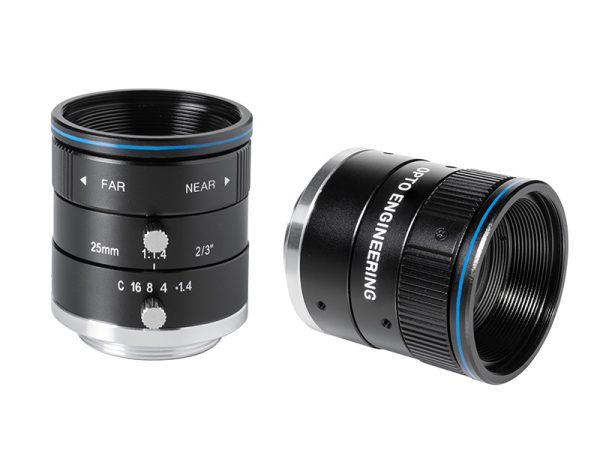

EN2MP2514

EN2MP2514

Specification Value
Focal length 25 (mm)
Magnification 0.100 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/3″ 13.7 (deg)
1/2″ 18.1 (deg)
1/1.8″ 20.4 (deg)
2/3″ 24.7 (deg)
1/3″ 48.00 x 36.00
1/2″ 64.00 x 48.00
1/1.8″ 71.20 x 53.30
2/3″ 85.00 x 70.90
Working distance range 0.25 – inf (m)
f/N 1.4 – close
Back focal length 13.6 (mm)
Distortion on 1/3″ 0.04 (%)
Distortion on 1/2″ 0.10 (%)
Distortion on 2/3″ 0.27 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M30.5 x 0.5
Outer diameter 34.0 (mm)
Length 35.6 (mm)
Mass 83 (g)
Set screw thread M1.7
Operating temperature -10-+50 (°C)
Add to Quote
Category: Tag: Brand:

Description

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinity focus.

Additional information

Lens mount

C
F/n

1.4 – close
Optmag

0.100 (x)
Accessory developer

Opto
Zoom ratio

0.100 (x)
Magnification

0.100 (x)
Max sensor size

2/3″
Set screw thread

M1.7
1 1 8

71.20 x 53.30 (mm x mm)
Mass

83 (g)
Image circle diameter

11.0 (mm)
Length

35.6 (mm)
Operating temperature

-10-+50 (°C)
Focal length

25 (mm)
Working distance range

0.25 – inf (m)
Back focal length

13.6 (mm)
Distortion on 1 3

0.04 (%)
Distortion on 1 2

0.10 (%)
Distortion on 2 3

0.27 (%)
Iris control

Manual
Focus control

Manual
Filter thread

M30.5 x 0.5
Outer diameter

34.0 (mm)
Mount

C
Focal length (mm)

25 (mm)
Sensor size
