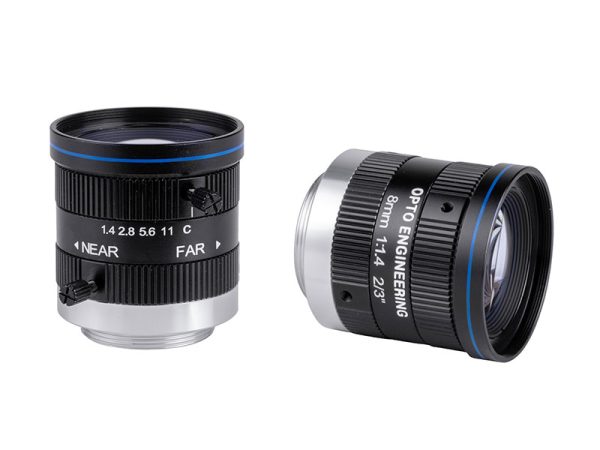

EN2MP0814

EN2MP0814

Specification Value
Focal length 8 (mm)
Magnification 0.071 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/3″ 40.2 (deg)
1/2″ 52.4 (deg)
1/1.8″ 58.7 (deg)
2/3″ 68.6 (deg)
1/3″ 67.61 x 50.70
1/2″ 90.14 x 67.61
1/1.8″ 100.28 x 75.07
2/3″ 119.72 x 99.86
Working distance range 0.1 – inf (m)
f/N 1.4 – close
Back focal length 11.76 (mm)
Distortion on 1/3″ 1.23 (%)
Distortion on 1/2″ 1.93 (%)
Distortion on 2/3″ 2.81 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M34 x 0.5
Outer diameter 36.0 (mm)
Length 35.5 (mm)
Mass 77 (g)
Set screw thread M2
Operating temperature -10-+50 (°C)
Add to Quote
Category: Tag: Brand:

Description

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinity focus.

Additional information

Lens mount

C
F/n

1.4 – close
Optmag

0.071 (x)
Accessory developer

Opto
Zoom ratio

0.071 (x)
Magnification

0.071 (x)
Max sensor size

2/3″
Set screw thread

M2
1 1 8

100.28 x 75.07 (mm x mm)
Mass

77 (g)
Image circle diameter

11.0 (mm)
Length

35.5 (mm)
Operating temperature

-10-+50 (°C)
Focal length

8 (mm)
Working distance range

0.1 – inf (m)
Back focal length

11.76 (mm)
Distortion on 1 3

1.23 (%)
Distortion on 1 2

1.93 (%)
Distortion on 2 3

2.81 (%)
Iris control

Manual
Focus control

Manual
Filter thread

M34 x 0.5
Outer diameter

36.0 (mm)
Mount

C
Focal length (mm)

8 (mm)
Sensor size
