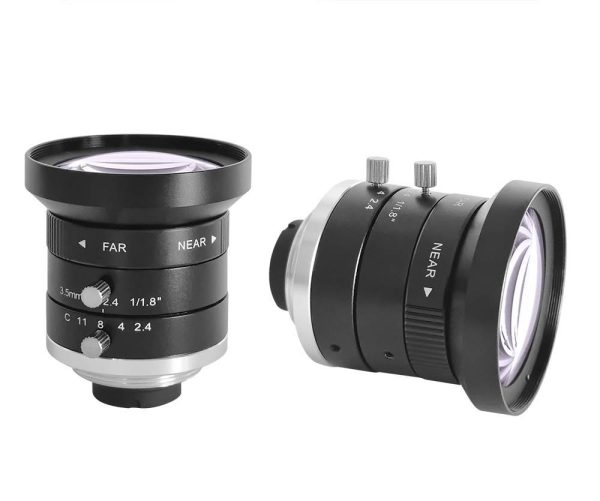

EN2MP0324

EN2MP0324

Specification Value
Focal length 3.5 (mm)
Magnification 0.022 (x)
Image circle diameter 9.0 (mm)
Max sensor size 1/1.8″
1/3″ 84.2 (deg)
1/2″ 99.6 (deg)
1/1.8″ 104.5 (deg)
2/3″ – (deg)
1/3″ 218.18 x 163.64
1/2″ 290.91 x 218.18
1/1.8″ 323.64 x 242.27
2/3″ –
Working distance range 0.15 – inf (m)
f/N 2.4 – close
Back focal length 8.57 (mm)
Distortion on 1/3″ 5.80 (%)
Distortion on 1/2″ 4.10 (%)
Distortion on 2/3″ – (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M40.5 x 0.5
Outer diameter 42.0 (mm)
Length 37.7 (mm)
Mass 70 (g)
Set screw thread M1.7
Operating temperature -10-+50 (°C)
Add to Quote
Category: Tag: Brand:

Description

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinity focus.

Additional information

Lens mount

C
F/n

2.4 – close
Optmag

0.022 (x)
Accessory developer

Opto
Zoom ratio

0.022 (x)
Magnification

0.022 (x)
Max sensor size

1/1.8″
Set screw thread

M1.7
1 1 8

323.64 x 242.27 (mm x mm)
Mass

70 (g)
Image circle diameter

9.0 (mm)
Length

37.7 (mm)
Operating temperature

-10-+50 (°C)
Focal length

3.5 (mm)
Working distance range

0.15 – inf (m)
Back focal length

8.57 (mm)
Distortion on 1 3

5.80 (%)
Distortion on 1 2

4.10 (%)
Distortion on 2 3

– (%)
Iris control

Manual
Focus control

Manual
Filter thread

M40.5 x 0.5
Outer diameter

42.0 (mm)
Mount

C
Focal length (mm)

3.5 (mm)
Sensor size
