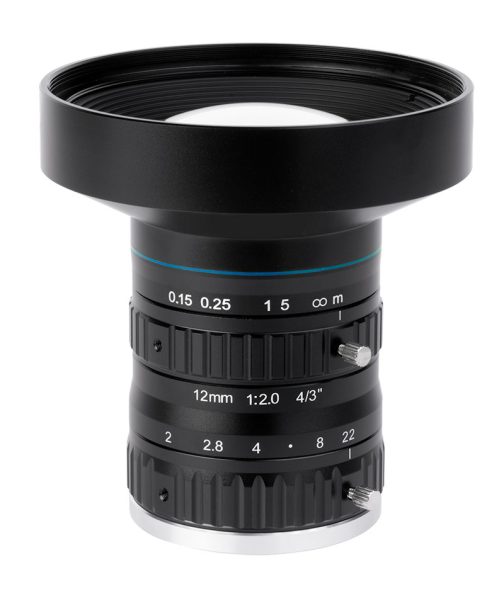

EN10MPL1220

EN10MPL1220

Specification Value
Focal length 12 (mm)
Magnification 0.069 (x)
Image circle diameter 23.0 (mm)
Max sensor size 4/3″
2/3″ 50.1 (deg)
1″ 68.9 (deg)
4/3″ 89.0 (deg)
2/3″ 122.83 x 102.46
1″ 179.77 x 142.05
4/3″ 273.55 x 153.32
Working distance range 0.15 – inf (m)
f/N 2.0 – 22
Back focal length 18.93 (mm)
Distortion on 2/3″ 1.77 (%)
Distortion on 1″ 1.78 (%)
Distortion on 4/3″ 2.4 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M77 x 0.75
Outer diameter 80.0 (mm)
Length 84.4 (mm)
Mass 447 (g)
Set screw thread M2
Operating temperature -10-+50 (°C)
Add to Quote
Category: Tag: Brand:

Description

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinity focus.

Additional information

Lens mount

C
F/n

2.0 – 22
Optmag

0.069 (x)
Accessory developer

Opto
Zoom ratio

0.069 (x)
Magnification

0.069 (x)
Max sensor size

4/3″
Distortion on 4 3

2.4 (%)
Mass

447 (g)
1

179.77 x 142.05
Image circle diameter

23.0 (mm)
Length

84.4 (mm)
Operating temperature

-10-+50 (°C)
Focal length

12 (mm)
Working distance range

0.15 – inf (m)
Back focal length

18.93 (mm)
Distortion on 2 3

1.77 (%)
Iris control

Manual
Focus control

Manual
Filter thread

M77 x 0.75
Outer diameter

80.0 (mm)
Set screw thread

M2
Distortion on 1

1.78 (%)
Mount

C
Focal length (mm)

12 (mm)
Sensor size
