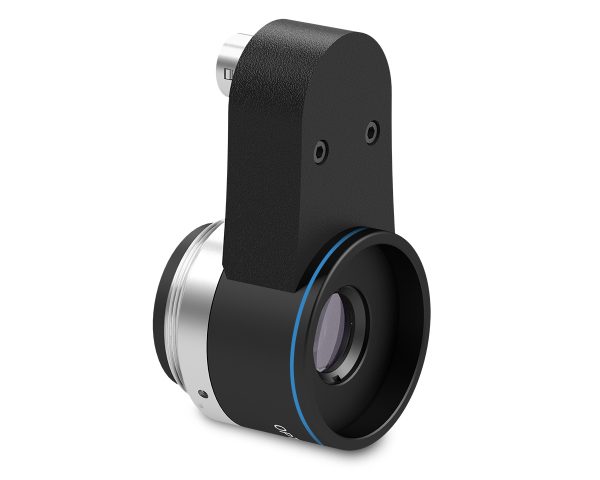

EL5MP2556

Specification	Value
Focal length	25 (mm)
Magnification	0.116 (x)
Image circle diameter	11.0 (mm)
Max sensor size	2/3″
1/3″	13.2 (deg)
1/1.8″	19.5 (deg)
2/3″	24.0 (deg)
1/3″	41.38 x 31.03
1/1.8″	61.47 x 45.95
2/3″	73.28 x 61.12
Working distance range	200 – inf (mm)
f/N	5.6
Back focal length	10.3 (mm)
Distortion	< 0.2 (%)
Liquid lens model	Optotune EL-3-10
Temperature sensor	Yes
Focal power mode	Yes
Response time	1 (ms)
Setting time	4 (ms)
Current range	-120 to +120 (mA)
Lifecycles (10%-90% sinusoidal)	>1,000,000,000
Connector	HR10A-7R-6PB
Mount	C
Phase adjustment	Yes
Filter thread	M27 x 0.5
Front diameter	30.0 (mm)
Length	21.0 (mm)
Mass	48 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only

Description

Calculated at minimum object distance.
Working distance: distance between the front end of the mechanics and the object.
Percent deviation of the real image compared to an ideal, undistorted image.
Typical at 30°C, 0 to ±250 mA step.
Measured from the front end of the mechanics to the camera flange.

Lens mount	C
Connector	HR10A-7R-6PB
Optmag	0.116 (x)
Accessory developer	Opto
Zoom ratio	0.116 (x)
Max sensor size	2/3″
Mount	C
Lifecycle (1090% sin)	>1,000,000,000
1 1 8	61.47 x 45.95 (mm x mm)
Phase adjustment	Yes
Mass	48 (g)
Image circle diameter	11.0 (mm)
Length	21.0 (mm)
Front diameter	30.0 (mm)
Distortion	< 0.2 (%)
Operating temperature	0-40 (°C)
Focal length	25 (mm)
Temperature sensor	Yes
Magnification	0.116 (x)
Current range	-120 to +120 (mA)
Setting time	4 (ms)
Response time	1 (ms)
Focal power mode	Yes
Liquid lens model	Optotune EL-3-10
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Filter thread	M27 x 0.5
Back focal length	10.3 (mm)
F/n	5.6
Working distance range	200 – inf (mm)
Installation	Indoor use only
Focal length (mm)	25 (mm)
Sensor size
