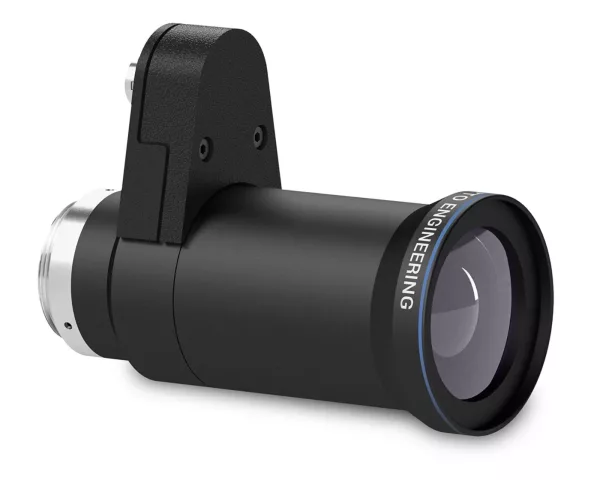

EL12MP1640

Specification	Value
Focal length	16 (mm)
Magnification	0.090 (x)
Image circle diameter	17.6 (mm)
Max sensor size	1.1″
2/3″	38 (deg)
1″	53.5 (deg)
1.1″	58.0 (deg)
2/3″	94.44 x 78.78
1″	157.67 x 83.44
1.1″	157.33 x 115.22
Working distance range	160 – inf (mm)
f/N	4
Back focal length	13.5 (mm)
Distortion	< 3.00 (%)
Liquid lens model	EL-12-30
Temperature sensor	Yes
Focal power mode	Yes
Response time	3 (ms)
Setting time	20 (ms)
Current range	-300 to +300 (mA)
Lifecycles (10%-90% sinusoidal)	>1,000,000,000
Connector	HR10A-7R-6PB
Mount	C
Phase adjustment	Yes
Filter thread	M40.5 x 0.5
Front diameter	42.0 (mm)
Length	82.4 (mm)
Mass	161 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only

Description

Calculated at minimum object distance.
Working distance: distance between the front end of the mechanics and the object.
Percent deviation of the real image compared to an ideal, undistorted image.
Typical at 30°C, 0 to ±250 mA step.
Measured from the front end of the mechanics to the camera flange at infinite focusing.

Lens mount	C
Max sensor size	1.1″
Optmag	0.090 (x)
Accessory developer	Opto
Zoom ratio	0.090 (x)
Connector	HR10A-7R-6PB
Distortion	< 3.00 (%)
Front diameter	42.0 (mm)
Installation	Indoor use only
Image circle diameter	17.6 (mm)
1 1	157.33 x 115.22 (mm x mm)
1	53.5 (deg)
Mass	161 (g)
Phase adjustment	Yes
Lifecycle (1090% sin)	>1,000,000,000
Mount	C
Length	82.4 (mm)
Temperature sensor	Yes
Operating temperature	0-40 (°C)
Focal length	16 (mm)
Working distance range	160 – inf (mm)
F/n	4
Back focal length	13.5 (mm)
Filter thread	M40.5 x 0.5
Liquid lens model	EL-12-30
Magnification	0.090 (x)
Operating relative humidity	20-85, non condensing (%)
Focal power mode	Yes
Response time	3 (ms)
Setting time	20 (ms)
Current range	-300 to +300 (mA)
Storage temperature	0-50 (°C)
Focal length (mm)	16 (mm)
Sensor size
