| Frame rate |
28.4fps (Dual USB, Mono 8bit) 14.4fps (Single USB, Mono 8bit)
|
| Image buffer |
256MB / 10 frames (all pixels readout)
|

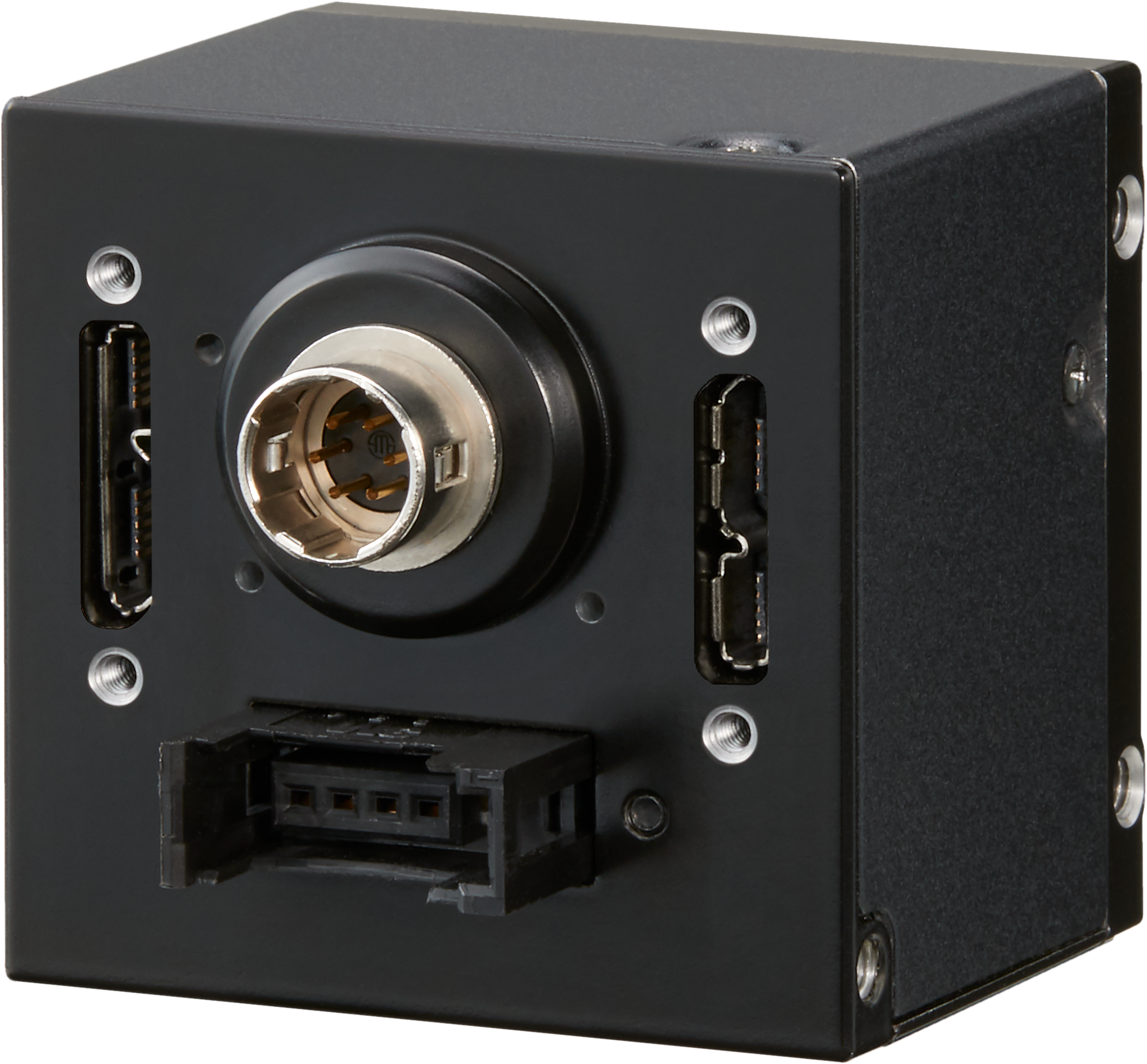

| Interface |
Dual USB3 Camera
|

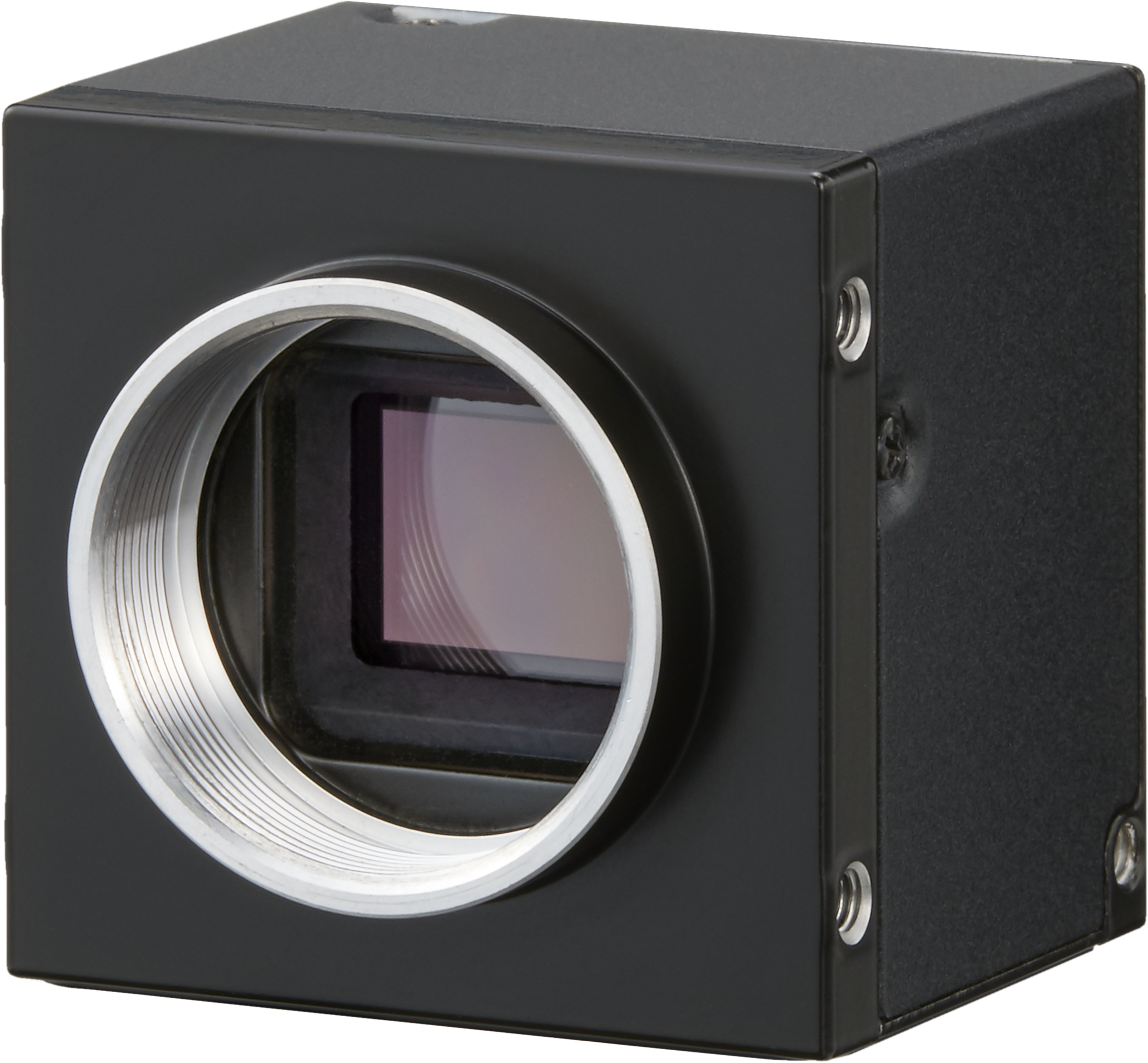

| Lens mount |
C-mount
|
| Mass |
approx. 90g
|
| Pixel size |
2.5μm x 2.5μm
|
| Power consumption |
5.6W max.
|
| Power supply |
DC5V ±5%
|
| Resolution |
5,120(H) x 5,120(V)
|
| Sensitivity |
2,040 lx (F8, 1/28.6s)
|
| White balance |
Manual white-balance / One-push white-balance
|
| Aspect ratio |
1:01
|
| Black level |
-25% to +25%
|
| Color type |
Color Camera
|
| Conformity |
CE, FCC, RoHS, WEEE, USB3 Vision, GenICam, IIDC2
|
| Digital gain |
MANUAL: x1 to x8, AGC: x1 to x8
|
| Electronic shutter method |
MANUAL: Global shutter / Random Trigger Shutter: Global shutter
|
| Exposure time2 |
MANUAL: 25μs to 16s AE: 25μs to 1s Random Trigger Shutter: 25μs to 16s (Edge or Bulk mode), 50μs to Trigger width (Level mode)
|
| External dimension |
40(W) x 40(H) x 35(D) mm (Not including protruding parts)
|
| External trigger input |
Low: 0 to 0.5V, High: 2 to 24.0V High active / Low active, Pulse width: 50μs (minimum)
|
| Gamma / lut |
γ=1.0 to 0.45 / In 12bit, Out 12bit
|
| Image output format |
Bayer 8bit / Bayer 10bit / Bayer 12bit
|
| Image size |
1.1 type
|
| Imager |
CMOS image sensor
|
| Imager model |
GMAX0505
|
| Interface3 |
USB 5Gbps (USB3.1 Gen1) (Only SuperSpeed is supported) / 2 channels
|
| Minimum illuminance |
2 lx (F1.4, Digital Gain: x8, Analog Gain: x2, Video level: 50%)
|
| On chip color filter |
RGB primary color mosaic-on-tip color filter
|
| Operation humidity |
10% to 90% (no condensation)
|
| Operation temperature |
-5°C to 45°C (below 60°C on cabinet surface)
|
| Optical glass filter |
Dust-proof glass
|
| Pixels |
26.2M
|
| Random trigger shutter mode |
Edge / Level / Bulk (255 times)
|
| Random trigger shutter type |
External Trigger / Software Trigger
|
| Readout mode |
All pixel, Scalable, Binning, Decimation, Mirroring, Flip
|
| Scanning |
Progressive
|
| Scanning area |
12.80mm(H) x 12.80mm(V)
|
| Sequential shutter |
16 entries (max)
|
| Synchronization system |
Internal / Bus (USB)
|
