Description
| Ordernumber | 106982 |
| Sensor shutter | Global Shutter |
| Sensor Type | CMOS |
| Sensor width (mm) | 7.2 |
| Sensor height (mm) | 5.4 |
| Resolution (horizontal) (pixels) | 1600 |
| Resolution (vertical) (pixels) | 1200 |
| Pixel Size (horizontal) (µm) | 4.5 |
| Pixel Size (vertical) (µm) | 4.5 |
| Pixel Depth (bits) | 8, 12 |
| Synchronization | hardware trigger,free-run,software trigger |
| Exposure Control | programmable via the camera API |
| Digital Input | 1 |
| Digital Output | 2 |
| General Purpose I/O | 2 |
| Power Requirements | Via USB 3.0 interface |
| Power Consumption (typical) (W) | 1.3 |

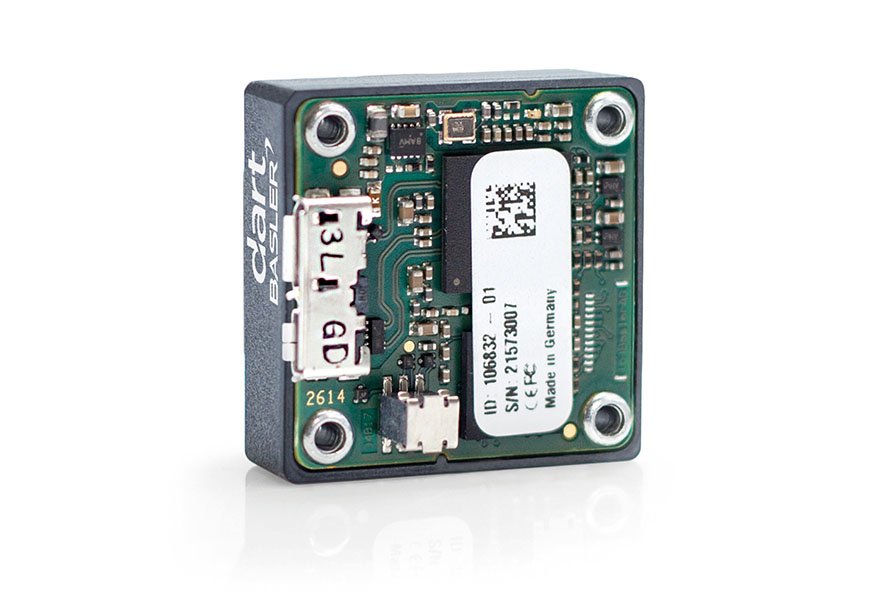

| Housing | Board Level |
| Housing Size L (mm) | 19.9 |
| Housing Size W (mm) | 29.3 |
| Housing Size H (mm) | 29 |
| Housing Temperature min (°C) | 0 |
| Housing Temperature max (°C) | 50 |
| Weight (typical) (g) | 15 |
| Conformity | CE,RoHS,GenICam,UL,USB3 Vision,FCC,KC,EAC |
For more information about the features, visit the Basler Product Documentation.
