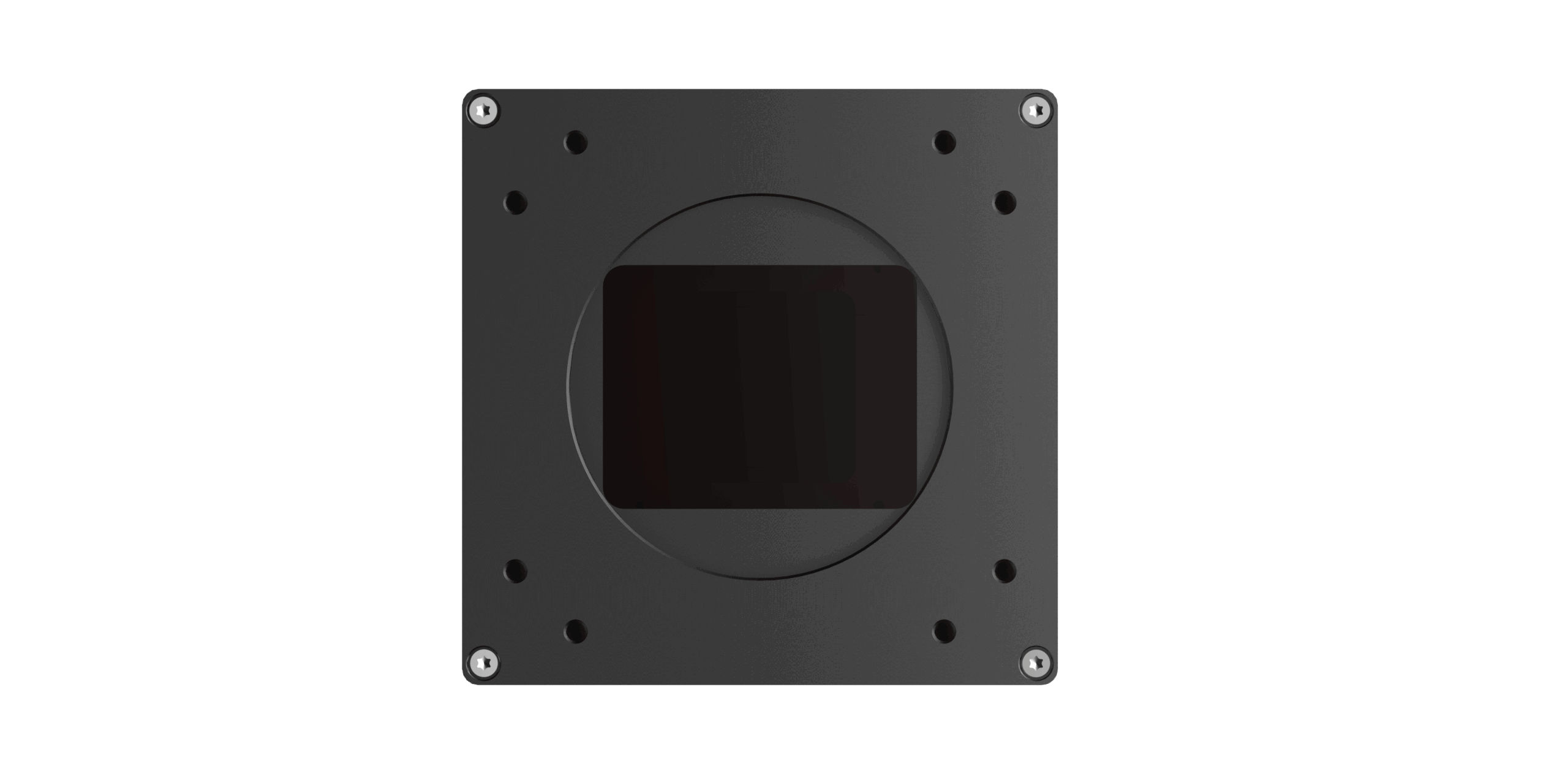

AX7Q10CX770E

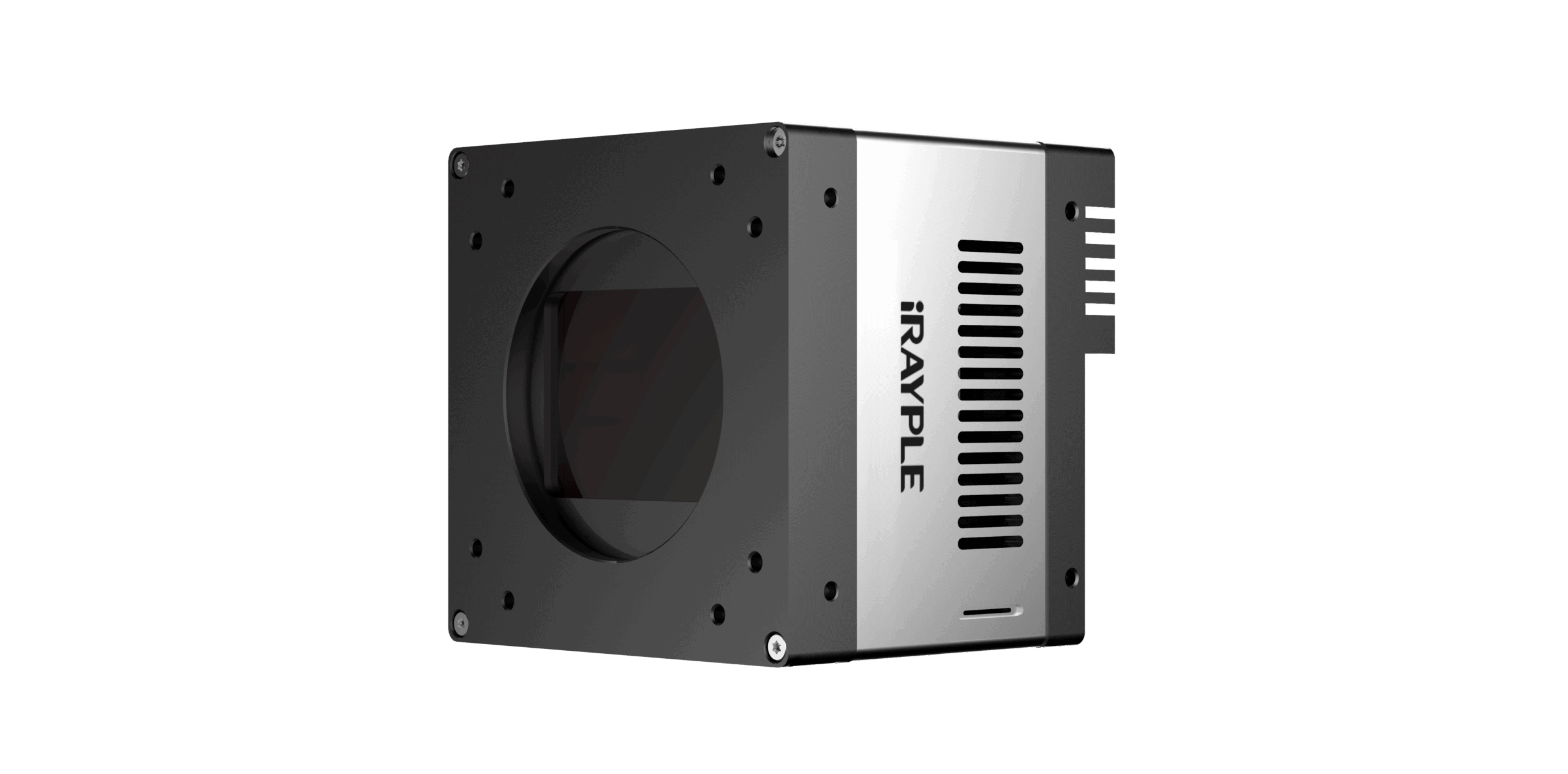

AX7Q10CX770E - Image 2

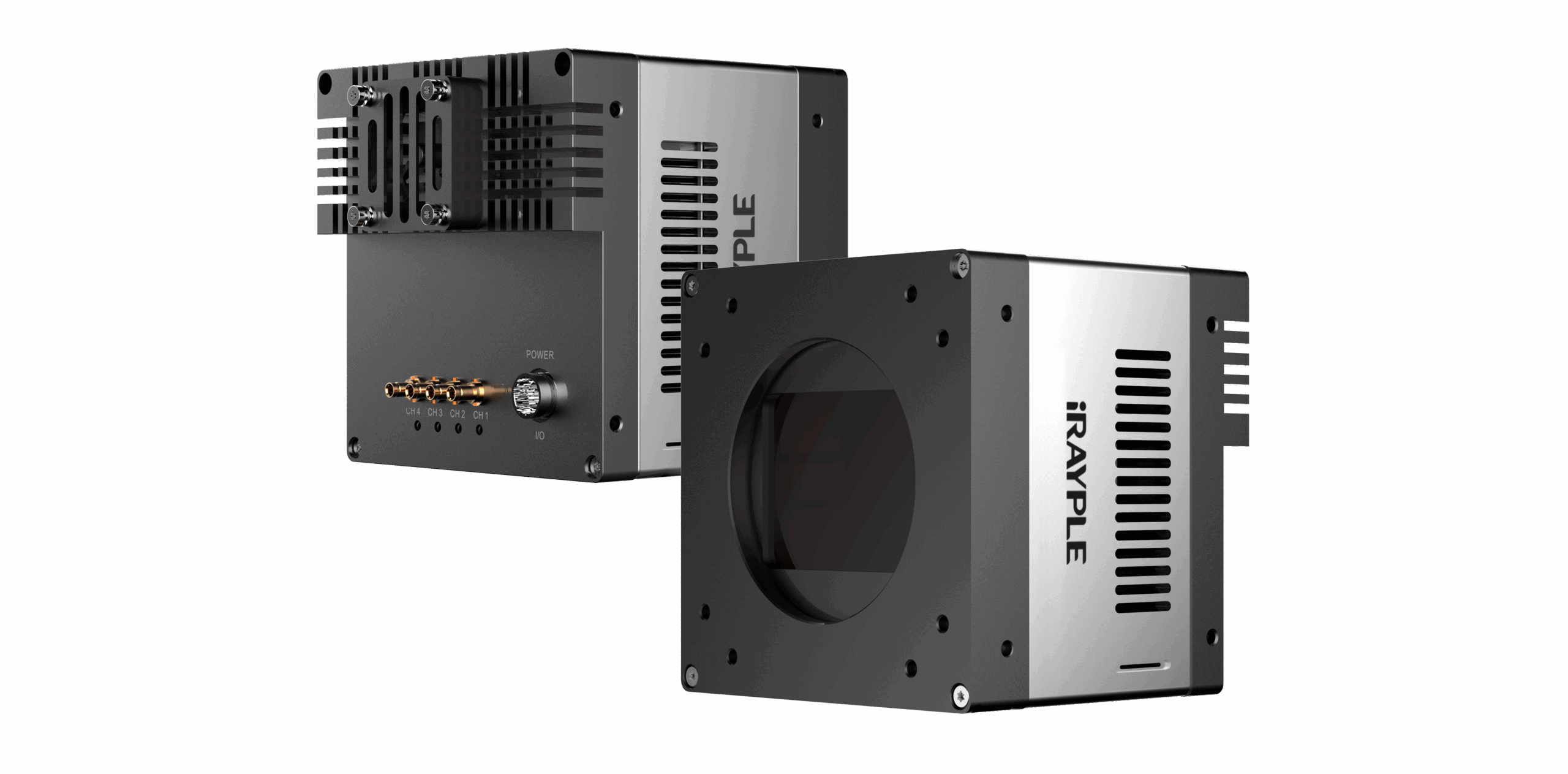

AX7Q10CX770E - Image 3

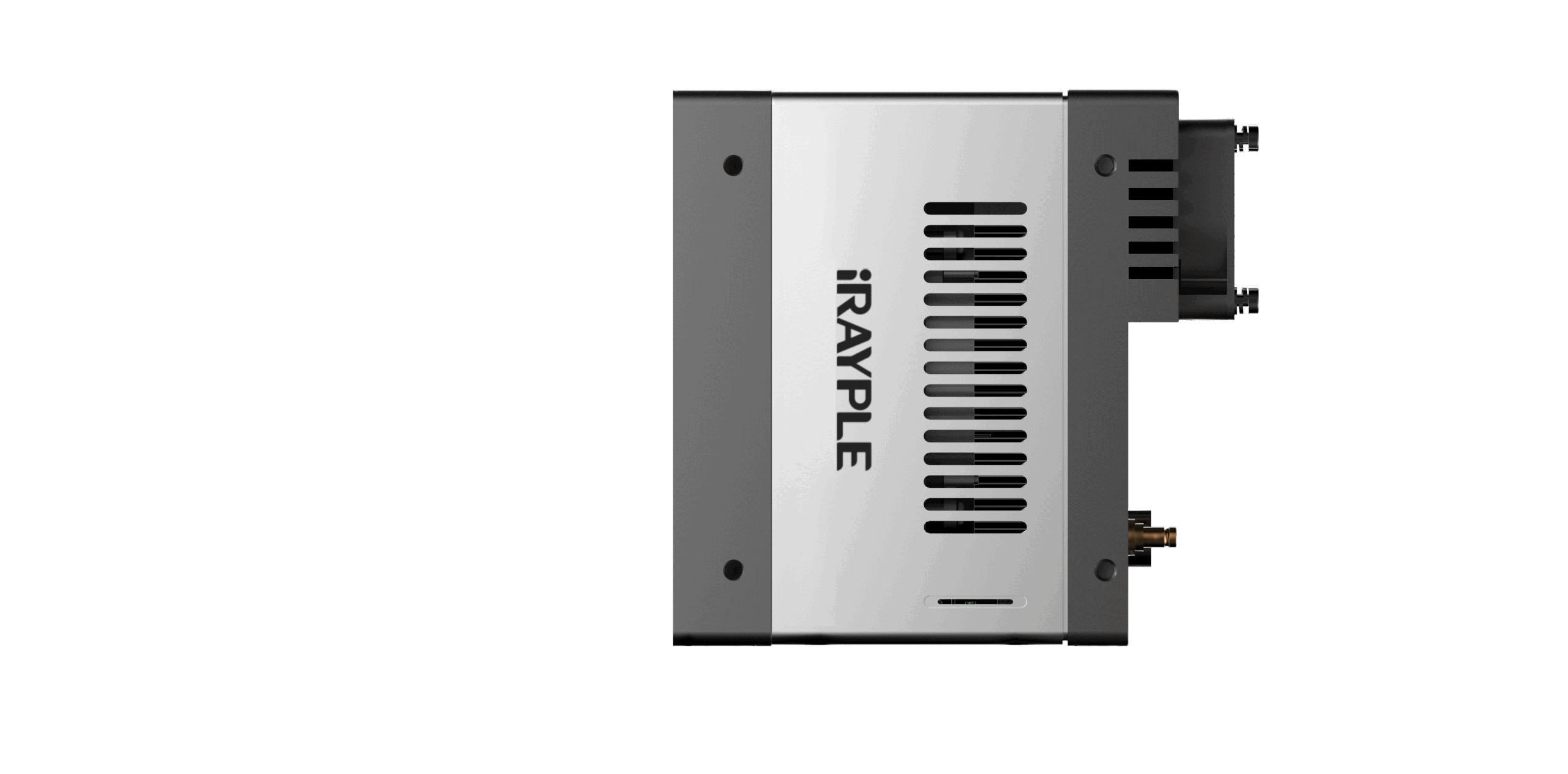

AX7Q10CX770E - Image 4

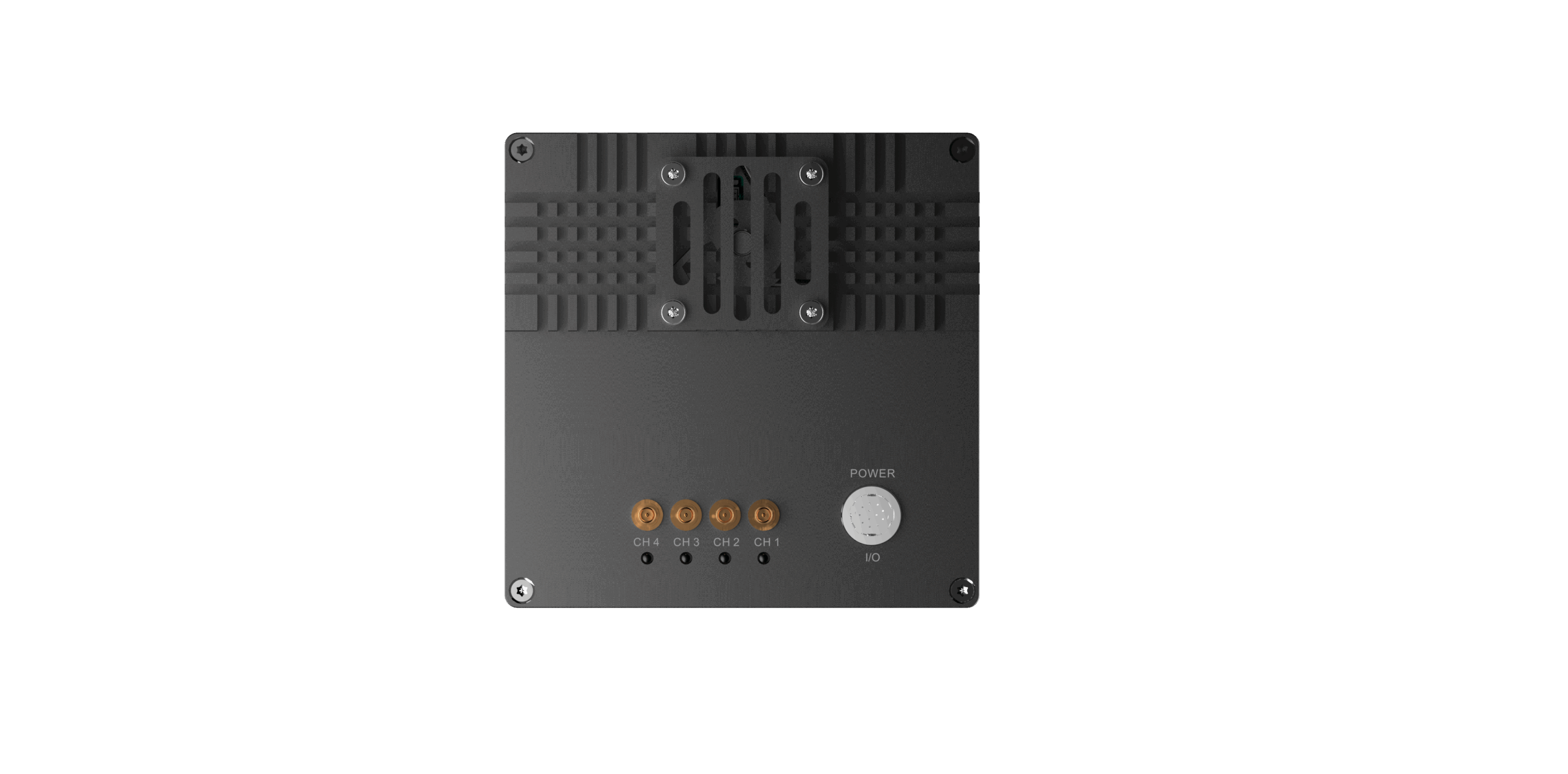

AX7Q10CX770E - Image 5

AX7Q10CX770E

X Flip Support
Sensor IM×411
Image Sensor IMX411
Shutter Rolling
Resolution 14192 × 10640
Frame Rate 6.2 fps
Bit Depth 12 bit
Mono/Color Color
Pixel Size 3.76 μm × 3.76 μm
Pixel 151 MP
S/N Ratio 45 dB
Dynamic Range 78 dB
Image Format Bayer 8/10/12
ROI Support
Y Flip No Support
Gain Analog gain: 1× ~ 63×, Digital gain: 1× ~ 100×
Exposure Time 30 μs ~ 6.5 s
Trigger Mode Software Trigger/Hardware Trigger/Free Run Mode
SPC Support
User Setting Support two sets of user-defined configurations
Port CXP-6
GPIO Interface 3× Opto-isolated input, 3× Opto-isolated output;1× RS232
Lens Mount M72 × 0.75
Power Supply DC 24V power supply via 12 Hirose interface
Power Consumption 24 V ≈ 51.6 W
Product Dimensions 110 mm × 110 mm × 90 mm (Non including rear case connector)
Net Weight 1k g
Storage Temperature -30℃~+80℃
Operating Temperature -10℃~+50℃
Add to Quote
Category: Tag: Brand:

Description

  • CXP-6 interface, 4 x 6.25Gbps theoretical transfer bandwidth
  • Support hardware trigger/free run mode
  • Support pixel-by-pixel FFC function
  • Support multiple image data formats output, ROI and etc.；
  • Support PoCXP and DC 24V power supply
  • Conforms to CoaXPress protocol and GenICam standard
  • Conform to CE, KC and RoHS

Dimensions

Downloads

AX7Q10CX770E_Datasheet_2025-10-17.pdf
110×110×90_1-CXP-M72-3D.rar
MVviewer_Ver2.4.2.26_Linux_x86_Build20250113.zip?response-content-disposition=attachment;filename=Machine%2BVision%2BMVviewer%2BClient%2BVer2.4.2.26%2528Linux%2Bx86%2529.zip

Additional information

Bit depth

12 bit
Dynamic range

78 dB
Exposure time

30 us ~ 6.5 s
Frame rate

6.2 fps
Gain

Analog gain: 1x ~ 63x, Digital gain: 1x ~ 100x
Gpio interface

3x Opto-isolated input, 3x Opto-isolated output；1x RS232
Image format

Bayer 8/10/12
Image sensor

IMX411
Lens mount

M72 x 0.75
Pixel

151 MP
Pixel size

3.76 um x 3.76 um
Port

CXP-6
Power consumption

24 V ≈ 51.6 W
Power supply

DC 24V power supply via 12 Hirose interface
Resolution

14192 x 10640
Roi

Support
Sensor

IMX411
Shutter

Rolling
Spc

Support
Storage temperature

-30℃~+80℃
Trigger mode

Software Trigger/Hardware Trigger/Free Run Mode
User setting

Support two sets of user-defined configurations
X flip

Support
Y flip

No Support
Mono-color

Color
S/n ratio

45 dB
