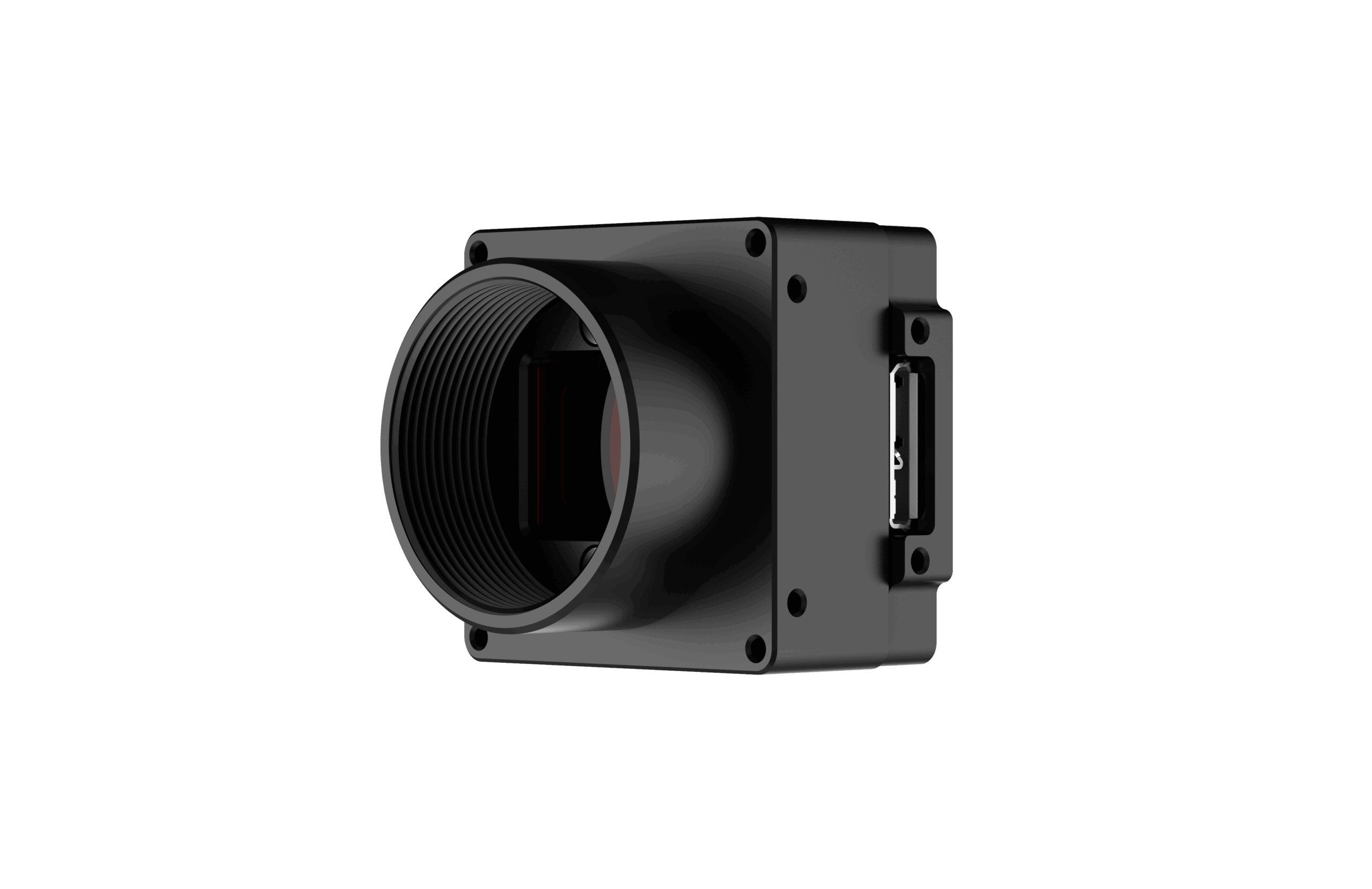

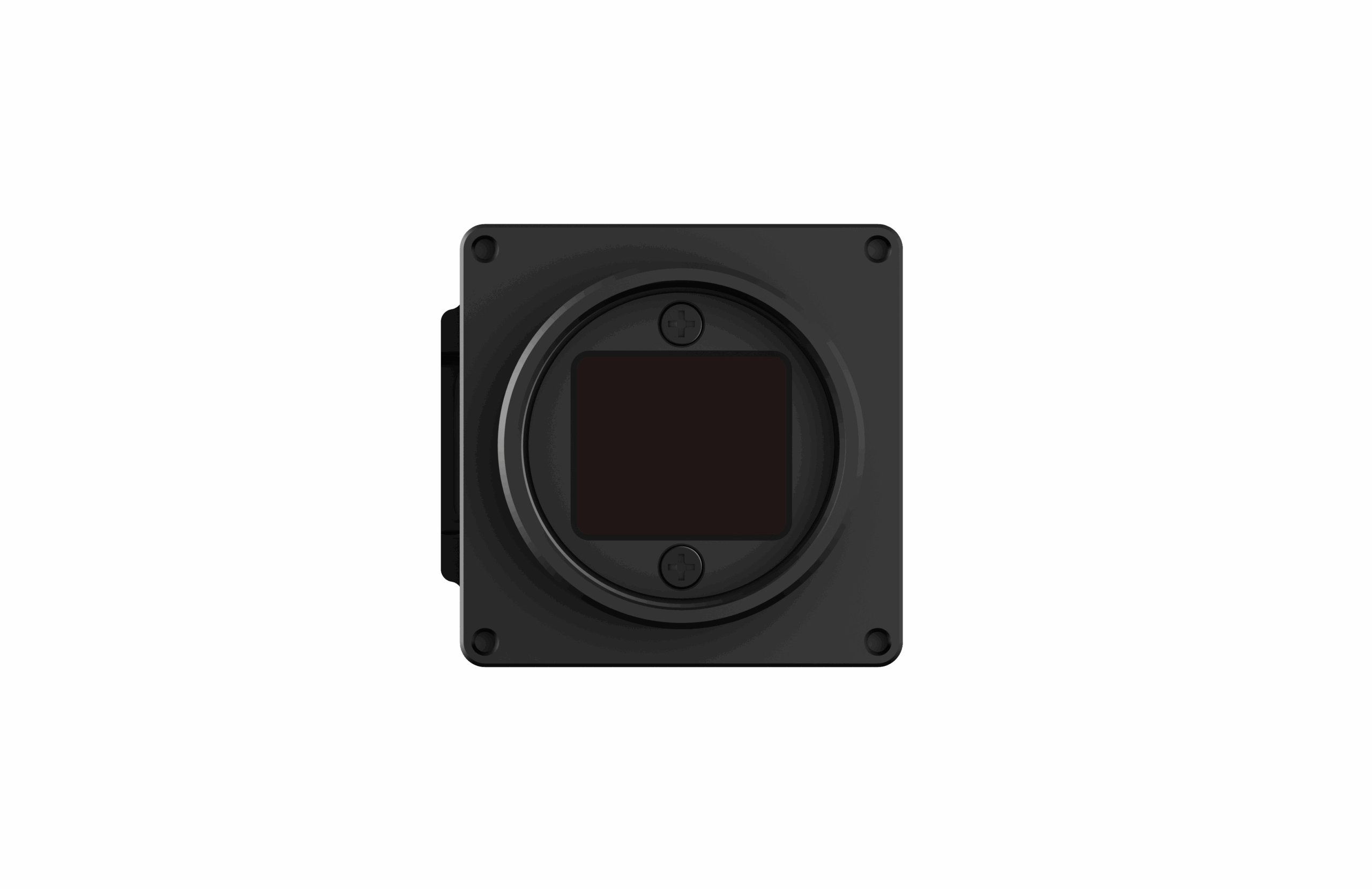

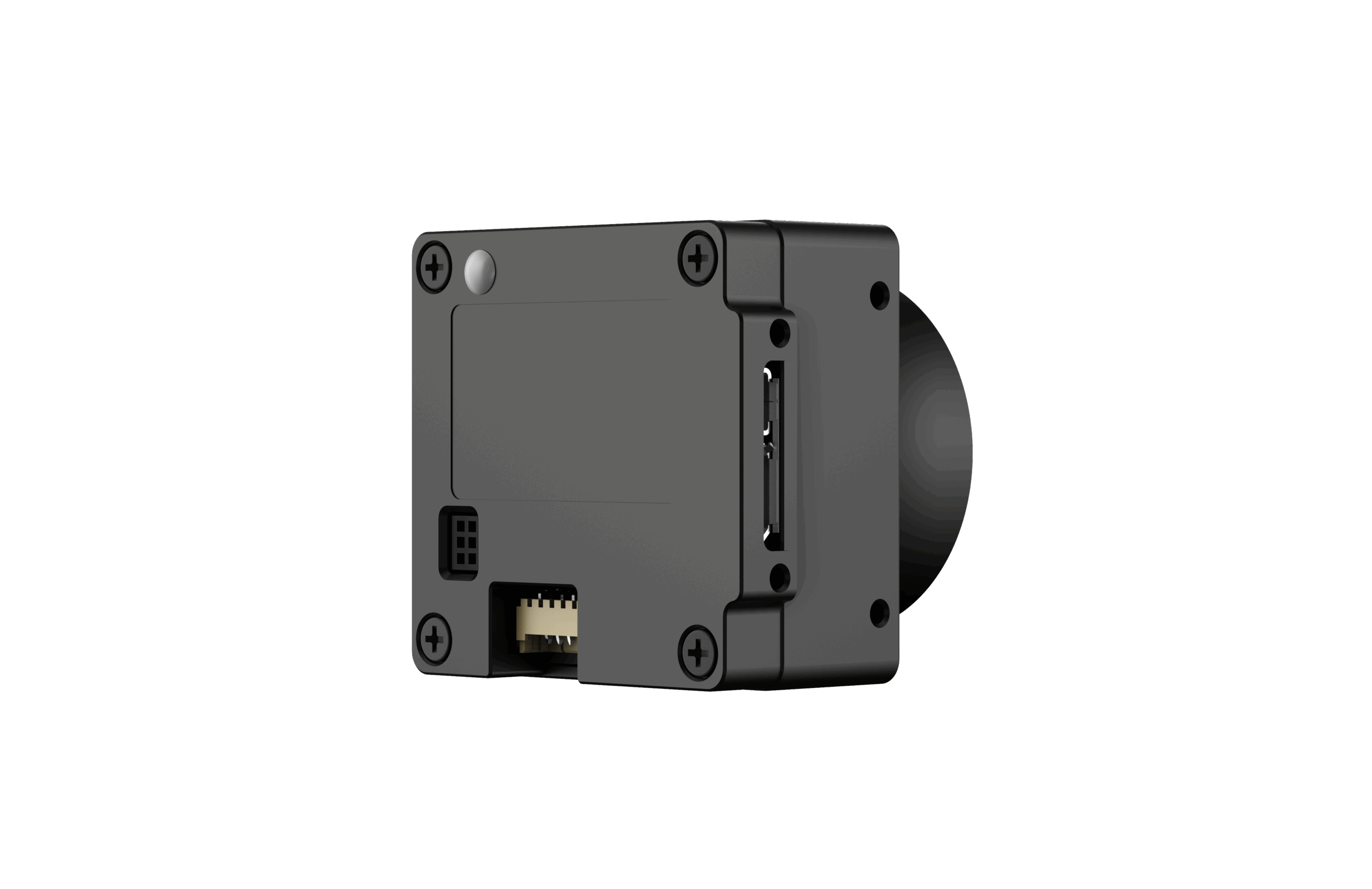

AB7200MU000E

Sensor	IMX174
Image Sensor	1/1.2″CMOS
Shutter	Global
Resolution	1920 × 1200
Frame Rate	164 fps
Bit Depth	10
Mono/Color	Mono
Pixel Size	5.86 μm × 5.86 μm
Pixel	2.3MP
S/N Ratio	>38dB
Dynamic Range	>70dB
Image Format	Mono8/10/10Packed
Binning	Support
ROI	Support
X Flip	Support
Y Flip	Support
Gain	1~32
Gamma	Range from 0 to 4, support LUT
Exposure Time	16μS~1S
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
SPC	Support
User Setting	Support two sets of user-defined configurations
Image Buffer	64MB
Port	USB 3.0
GPIO Interface	5-core white plug interface: 1 optocoupler isolated input, 1 optocoupler isolated output, and 1 configurable input/output without optocoupler isolation
Lens Mount	C
Power Supply	5.0V/900mA, powered through USB3.0 interface (compliant with USB3.0 interface specifications)
Power Consumption	≈2.8W
Product Dimensions	35 mm × 35 mm × 19 mm (not including lens mount and rear case connector)
Net Weight	68 g
Storage Temperature	-30℃~+80℃
Operating Temperature	-30℃~+50℃

Description

USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface；
Compact design of 35mm*35mm*19mm
128MB on-board cache for data transmission or image resend
Support Software Trigger/Hardware Trigger/Free Run Mode
Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness etc.
Color cameras support interpolation, white balance, chroma, saturation, etc.；
Support multiple image data formats output/ROI/Mirror, etc.；
Compatible with USB3.0 Vision protocol and GenICam standard
Comform to CE, FCC, RoHS

Binning	Support
Bit depth	10
Dynamic range	>70dB
Exposure time	16us~1S
Frame rate	164 fps
Gain	1~32
Gamma	Range from 0 to 4, support LUT
Gpio interface	5-core white plug interface: 1 optocoupler isolated input, 1 optocoupler isolated output, and 1 configurable input/output without optocoupler isolation
Image buffer	64MB
Image format	Mono8/10/10Packed
Image sensor	1/1.2"CMOS
Lens mount	C
Pixel	2.3MP
Pixel size	5.86 um x 5.86 um
Port	usB 3.0
Power consumption	≈2.8W
Power supply	5.0V/900mA, powered through usB3.0 interface (compliant with usB3.0 interface specifications)
Resolution	1920 x 1200
Roi	Support
Sensor	IMX174
Shutter	Global
Spc	Support
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support two sets of user-defined configurations
X flip	Support
Y flip	Support
Mono-color	Mono
S/n ratio	>38dB
