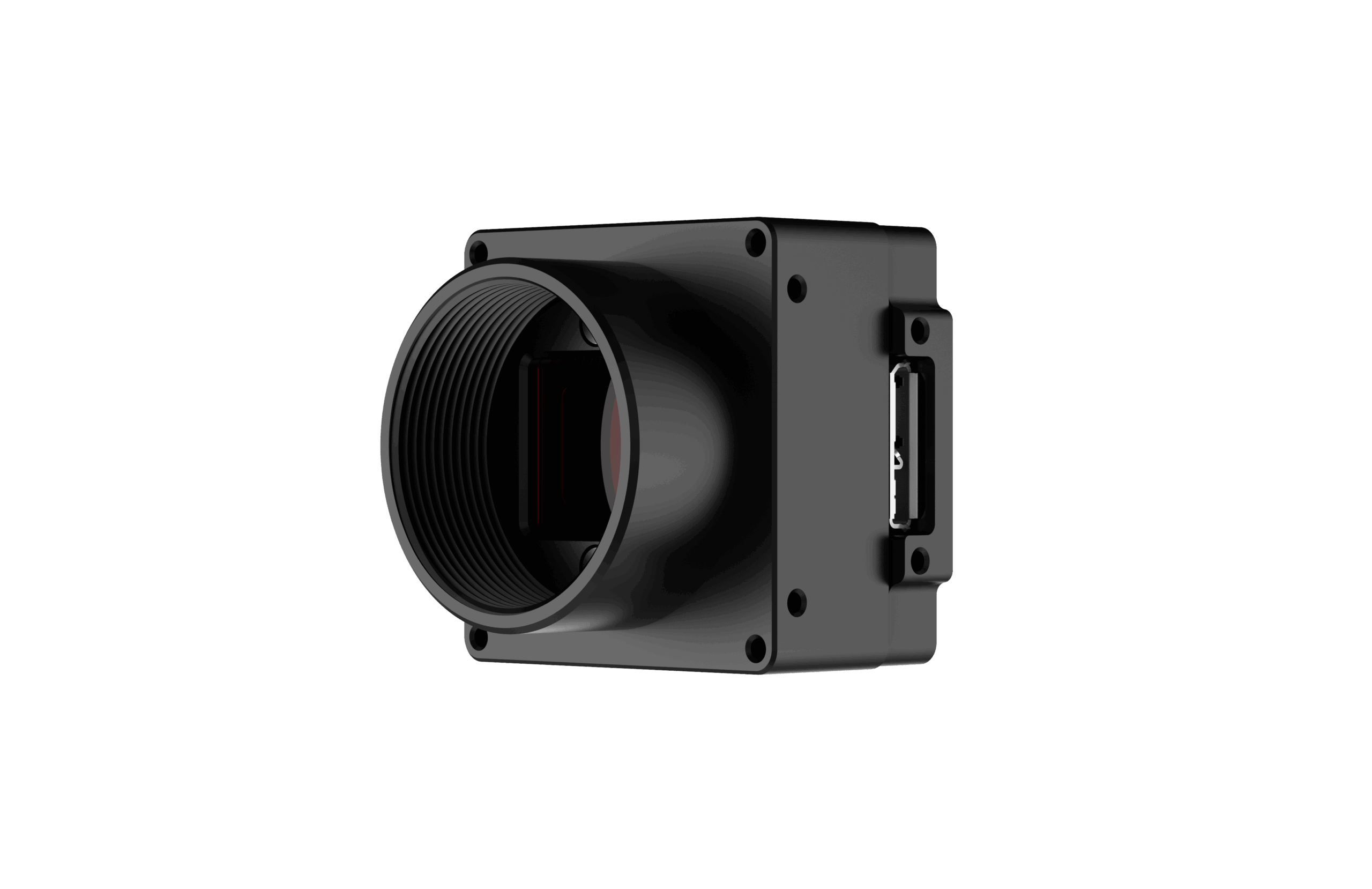

AB3600MU000E

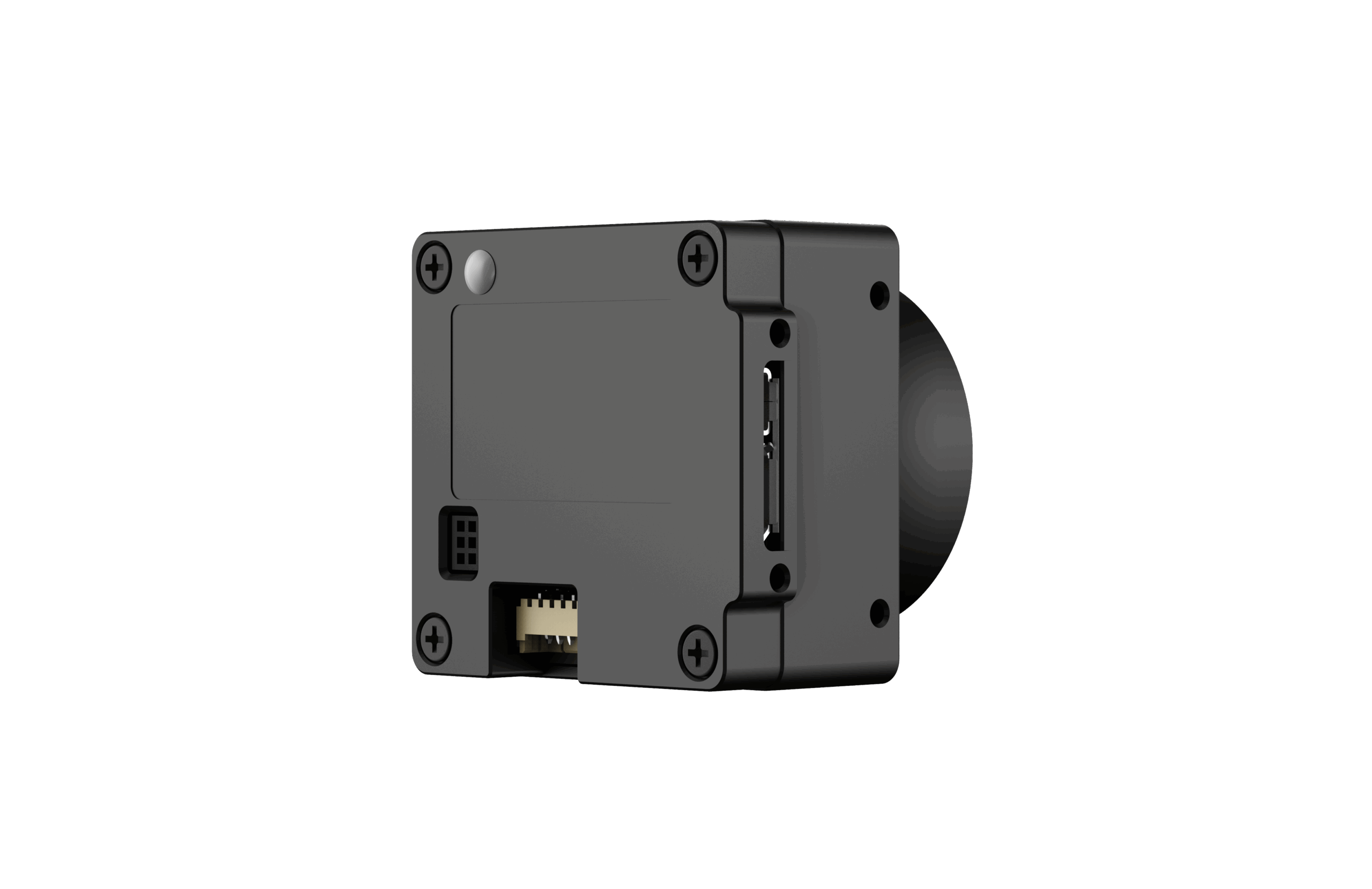

AB3600MU000E - Image 2
AB3600MU000E - Image 3

AB3600MU000E

Sensor IMX178
Image Sensor 1/1.8″CMOS
Shutter Rolling
Resolution 3072 × 2048
Frame Rate 60 fps
Bit Depth 10
Mono/Color Mono
Pixel Size 2.4 μm × 2.4 μm
Pixel 6.2MP
S/N Ratio >38dB
Dynamic Range 66dB
Image Format Mono8/10/10Packed
Binning Support
ROI SUpport
Gain 1~32
Gamma from 0 to 4, support LUT
Exposure Time 11μS~1S
Trigger Mode Software Trigger/Hardware Trigger/Free Run Mode
SPC Support
User Setting Support two sets of user-defined configurations
Image Buffer 64MB
Port USB3.0
GPIO Interface Standard 5 pin trigger connecter: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount C-mount
Power Supply power supply via USB interface（conform to USB3.0 interface specification）
Power Consumption ≈2.8W
Product Dimensions 35mm×35mm×19mm
Net Weight 46 g
Storage Temperature -30℃~+80℃
Operating Temperature -30℃~+50℃
Add to Quote
Category: Tag: Brand:

Description

  • USB3.0 interface, 5Gbps theoretical transfer bandwidth, power supply via USB interface
  • Compact design of 35mm*35mm*19mm
  • 128MB on-board cache for data transmission or image resend
  • Support Software Trigger/Hardware Trigger/Free Run Mode
  • Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
  • Support multiple image data formats output/ROI/Binning/Mirror, etc.
  • Conform to USB3.0 Vision protocol and GenICam standard
  • Conform to CE, FCC, RoHS

Dimensions

Downloads

AB3600MU000E_Datasheet_2025-09-08.pdf
USB_3.0_Area_Scan_Camera_User_s_Manual_V1.0.0.pdf
35×35×19_1114_USB_3D.7z
MVviewer_Ver2.4.2.26_Linux_x86_Build20250113.zip?response-content-disposition=attachment;filename=Machine%2BVision%2BMVviewer%2BClient%2BVer2.4.2.26%2528Linux%2Bx86%2529.zip

Additional information

Binning

Support
Bit depth

10
Dynamic range

66dB
Exposure time

11us~1S
Frame rate

60 fps
Gain

1~32
Gamma

From 0 to 4, support LUT
Gpio interface

Standard 5 pin trigger connecter: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Image buffer

64MB
Image format

Mono8/10/10Packed
Image sensor

1/1.8"CMOS
Lens mount

C-mount
Pixel

6.2MP
Pixel size

2.4 um x 2.4 um
Port

usB3.0
Power consumption

≈2.8W
Power supply

power supply via usB interface（conform to usB3.0 interface specification）
Resolution

3072 x 2048
Roi

Support
Sensor

IMX178
Shutter

Rolling
Spc

Support
Storage temperature

-30℃~+80℃
Trigger mode

Software Trigger/Hardware Trigger/Free Run Mode
User setting

Support two sets of user-defined configurations
Mono-color

Mono
S/n ratio

>38dB
